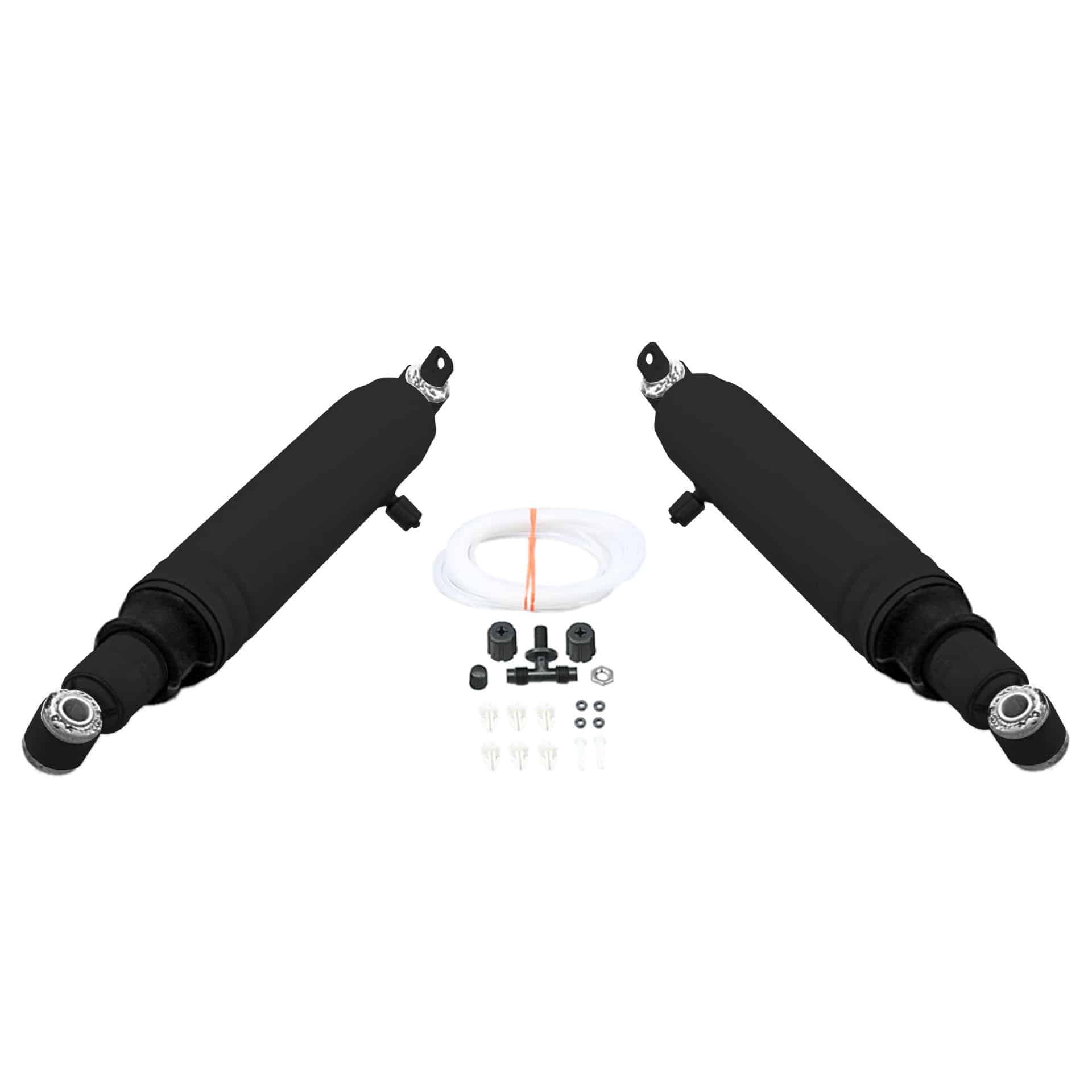

Monroe MA764 – Max-Air Air Adjustable Air Shock Absorber Pack of 2

£138.95 Inc VAT

- +

MON-MA764 Max-Air Air Adjustable Air Shock Absorber Pack of 2

Monroe Max-Air MA764 Air Adjustable Air Shock Absorber Pack of 2 for Chevrolet K1500

Features:

  • CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
  • BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
  • EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
  • EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
  • MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)



Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)



Attributes:

Shock Absorber Body End Measuring Point Center of Loop
Upper Mount Type Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center)
Extended Length 689
Extended Length 27.125
Compressed Length 403.2
Compressed Length 15.875
Dust Shield Material Rubber
Body End Code LS47
Includes Bump Stop Yes
Internal Rebound Bumper No
Dust Shield Included Yes
Travel Length 285.8
Travel Length 11.25
Upper Mount Code XP7
Parts Pack(s) None
Part Description Air Shock Absorber
Lower Mount Type Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL
Hydraulic Lockout No
Shock Absorber Rod End Measuring Point Center of Cross Pin



Vehicle Applications:

Make Model Years
Chevrolet C1500 1988 to 1999
Chevrolet C2500 1988 to 2000
Chevrolet K1500 1988 to 1999
Chevrolet K2500 1988 to 2000
GMC C1500 1988 to 1999
GMC C2500 1988 to 2000
GMC K1500 1988 to 1999
GMC K2500 1988 to 2000
Weight 5.9 kg
