Monroe MA765 – Max-Air Air Adjustable Air Shock Absorber Pack of 2

£183.95 Inc VAT

- +

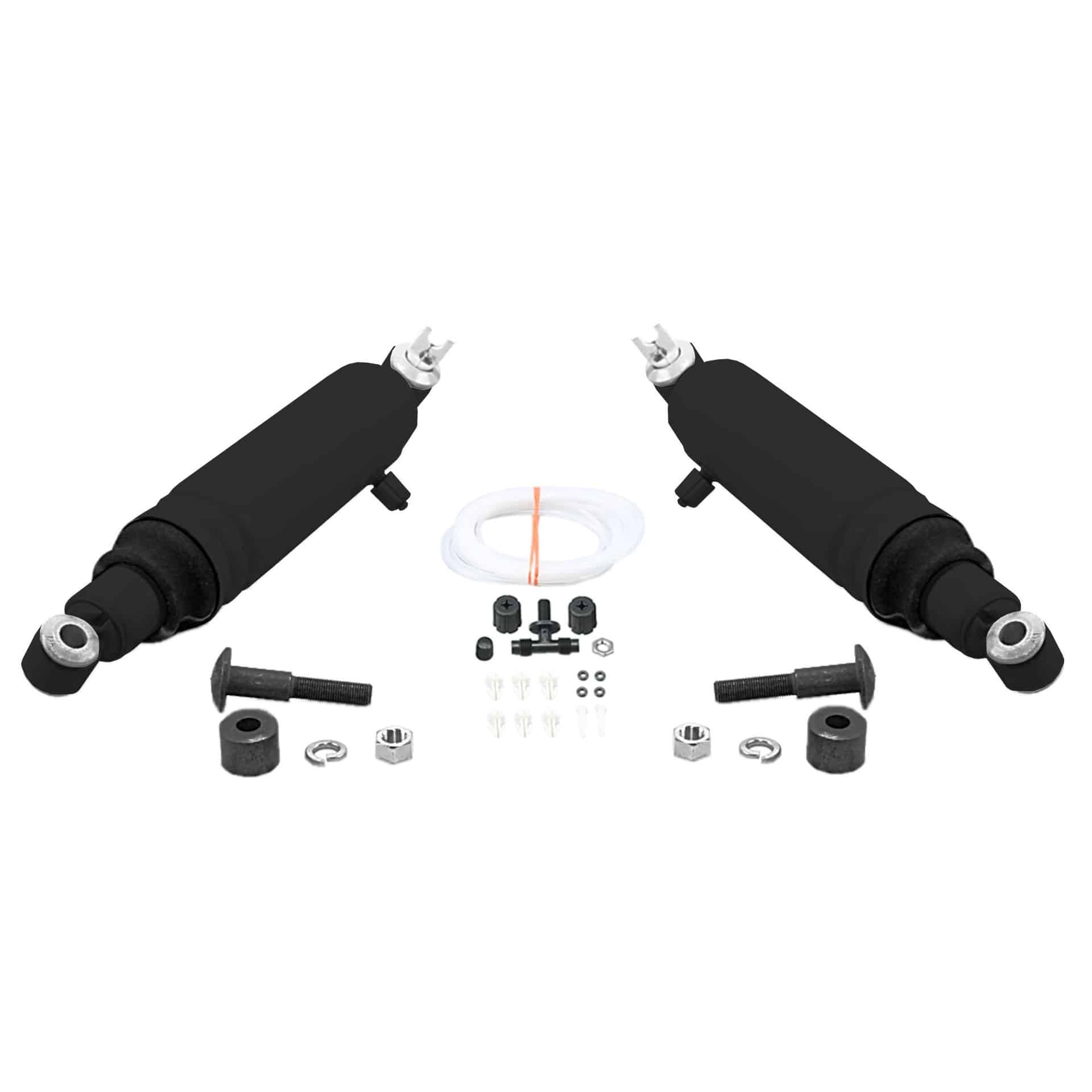

MON-MA765 Max-Air Air Adjustable Air Shock Absorber Pack of 2

Monroe Max-Air MA765 Air Adjustable Air Shock Absorber Pack of 2 for Jeep Cherokee

Features:

  • EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
  • CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
  • BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
  • EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
  • MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)



Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)



Attributes:

Body End Code L1/CP4
Includes Bump Stop Yes
Internal Rebound Bumper Yes
Dust Shield Included Yes
Travel Length 193.7
Travel Length 7.625
Extended Length 520.7
Compressed Length 327
Compressed Length 12.875
Parts Pack(s) (2) P00072
Hydraulic Lockout No
Shock Absorber Rod End Measuring Point Center of Cross Pin
Shock Absorber Body End Measuring Point Center of Loop
Dust Shield Material Rubber
Upper Mount Type Cross Pin Mount – Open Ended, 3/8″ Hole ID (Both Ends) X 3.3/16″ Pin Length (Hole Center to Center)
Upper Mount Code XP12
Extended Length 20.5
Part Description Air Shock Absorber
Lower Mount Type Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 1/2″ Stud Length (Center of Loop to Frame)



Vehicle Applications:

Make Model Years
Jeep Cherokee 1984 to 2001
Jeep Wagoneer 1984 to 1990
Weight 5.27 kg
