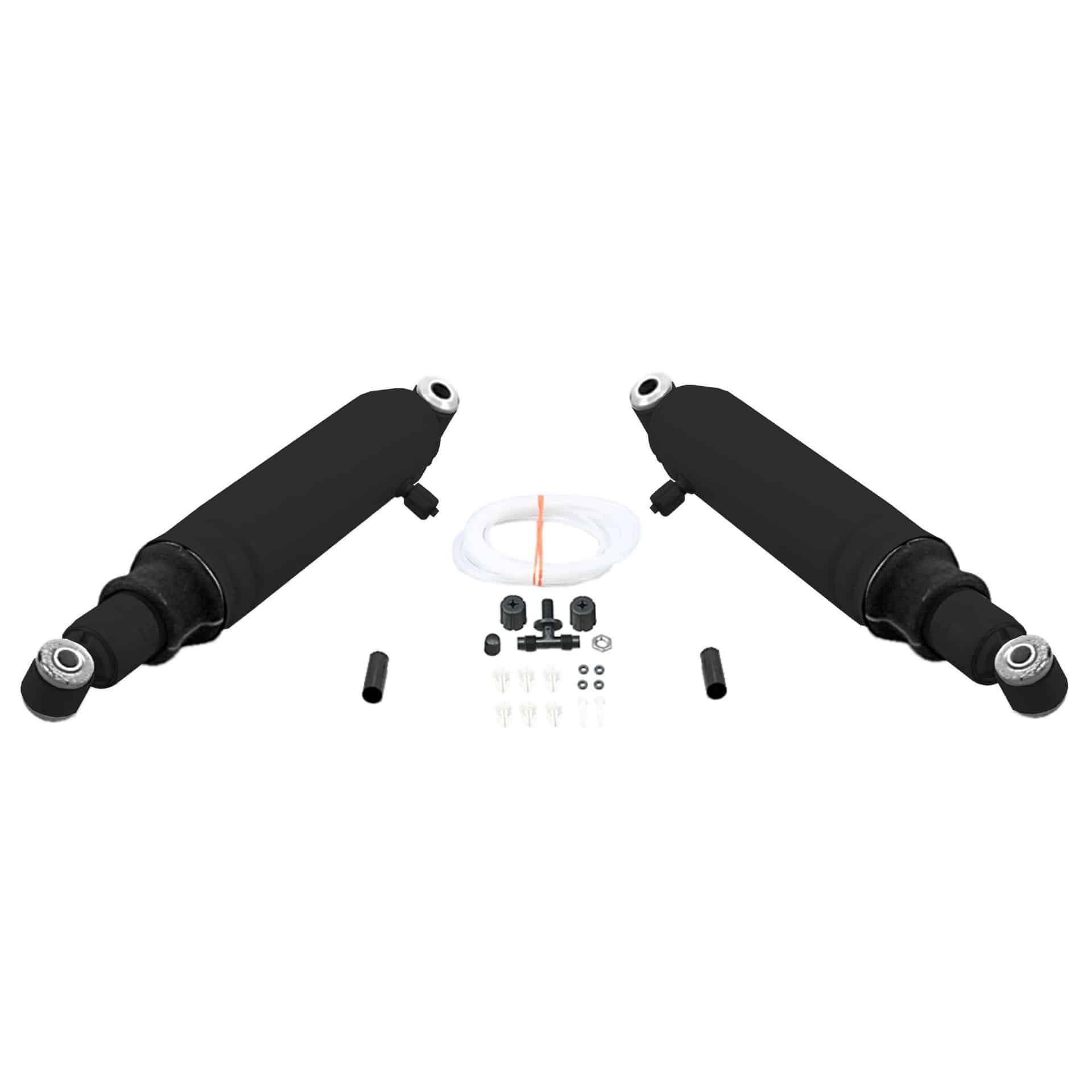

Monroe MA769 – Max-Air Air Adjustable Air Shock Absorber Pack of 2

£143.95 Inc VAT

- +

MON-MA769 Max-Air Air Adjustable Air Shock Absorber Pack of 2

Monroe Max-Air MA769 Air Adjustable Air Shock Absorber Pack of 2 for Ford Ranger

Features:

  • MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
  • CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
  • BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
  • EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
  • EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)



Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)



Attributes:

Travel Length 8.75
Extended Length 581
Extended Length 22.875
Compressed Length 358.8
Compressed Length 14.125
Parts Pack(s) (2) P00827
Hydraulic Lockout No
Dust Shield Material Rubber
Upper Mount Code L1
Part Description Air Shock Absorber
Upper Mount Type Loop Bushing Mount – 5/8″ Bushing ID X 1.5/16″ Bushing OAL
Body End Code LS26
Lower Mount Type Loop Bushing and Sleeve Mount – 12MM Sleeve ID X 1.1/2″ Sleeve OAL
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Rod End Measuring Point Center of Loop
Includes Bump Stop Yes
Internal Rebound Bumper Yes
Dust Shield Included Yes
Travel Length 222.3



Vehicle Applications:

Make Model Years
Ford Bronco II 1984 to 1990
Ford Ranger 1983 to 2011
Mazda B2300 1994 to 2009
Mazda B2500 1998 to 2001
Mazda B3000 1994 to 2007
Mazda B4000 1994 to 2004
Weight 5.11 kg
