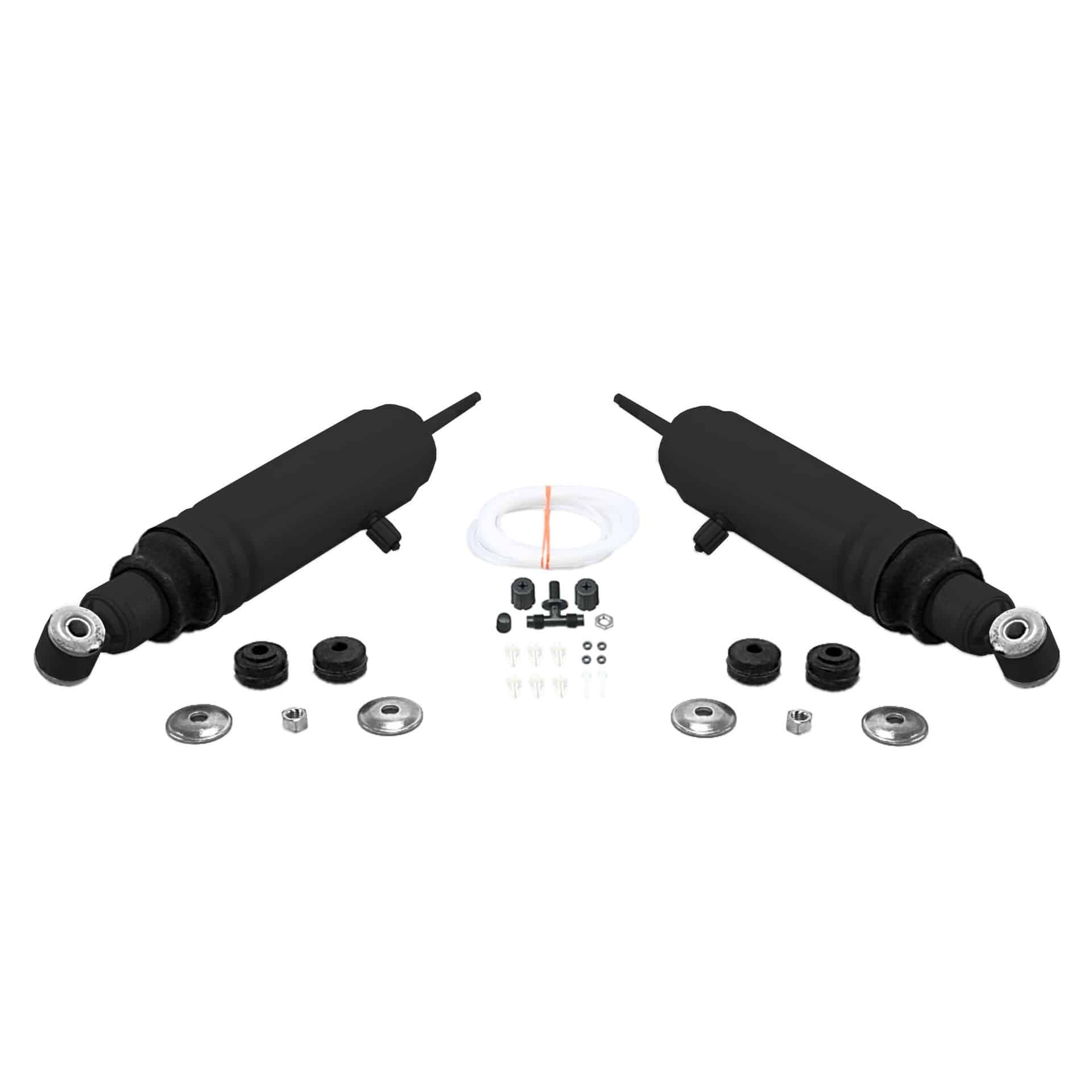

MON-MA777 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA777 Air Adjustable Air Shock Absorber Pack of 2 for Ford E-150
Features:
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Part Description | Air Shock Absorber |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Dust Shield Material | Rubber |
| Upper Mount Type | Stem Mount – 2.3/8″ Stem Length X 3/8″-16 Thread Pitch |
| Hydraulic Lockout | No |
| Parts Pack(s) | (2) P01135 |
| Body End Code | LS26 |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | No |
| Dust Shield Included | Yes |
| Travel Length | 203.2 |
| Travel Length | 8 |
| Extended Length | 520.7 |
| Extended Length | 20.5 |
| Compressed Length | 317.5 |
| Compressed Length | 12.5 |
| Upper Mount Code | S4 |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 12MM Sleeve ID X 1.1/2″ Sleeve OAL |
Vehicle Applications:
| Make | Model | Years |
| Ford | E-150 Club Wagon | 2003 to 2005 |
| Ford | E-150 Econoline Club Wagon | 1992 to 2002 |
| Ford | E-150 Econoline | 1992 to 2007 |
| Ford | E-150 | 2002 to 2007 |
| Ford | Econoline | 1999 to 2006 |
