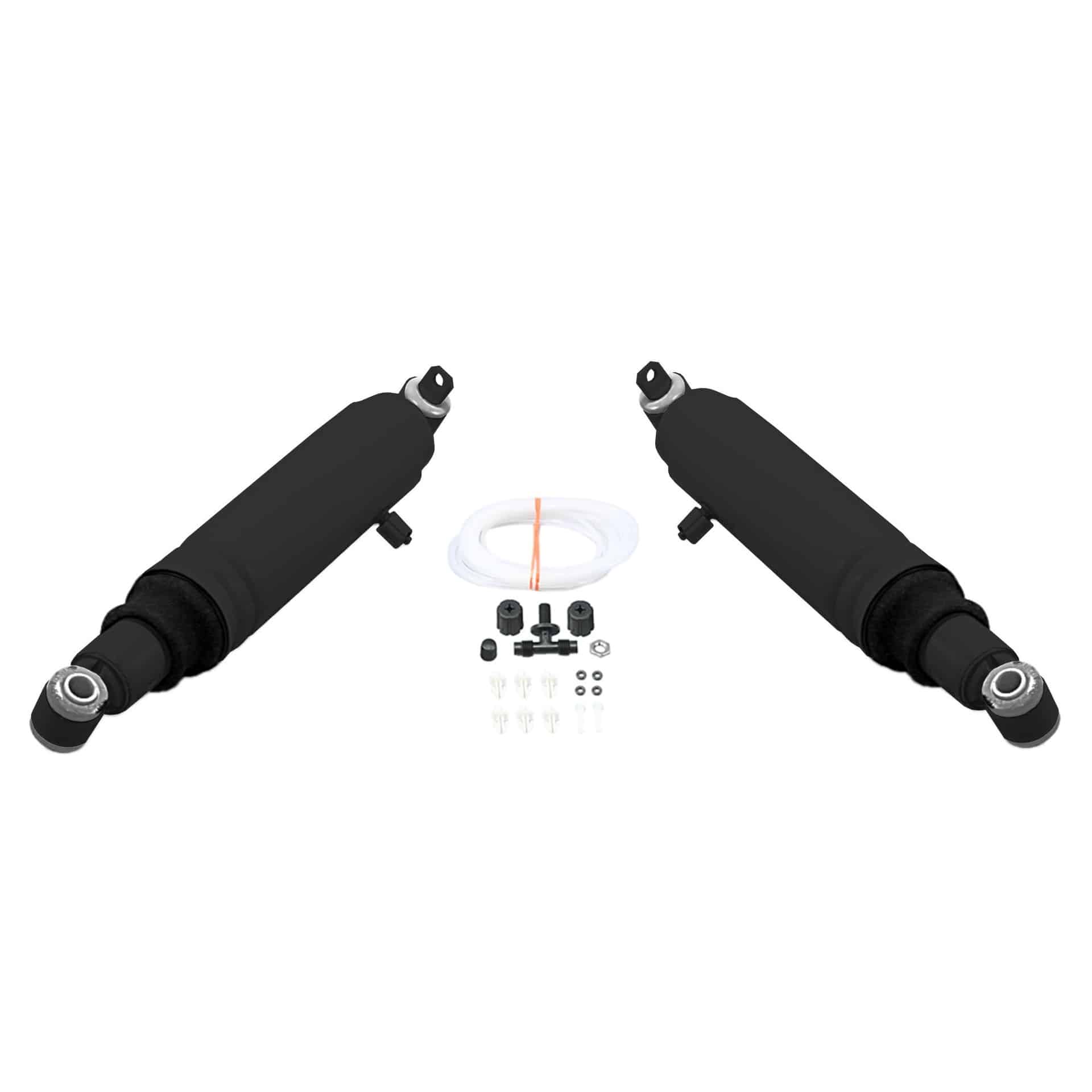

MON-MA779 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA779 Air Adjustable Air Shock Absorber Pack of 2 for Chevrolet K1500 Suburban
Features:
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Dust Shield Material | Rubber |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Hydraulic Lockout | No |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL |
| Part Description | Air Shock Absorber |
| Parts Pack(s) | None |
| Body End Code | LS47 |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | Yes |
| Upper Mount Code | XP7 |
| Dust Shield Included | Yes |
| Travel Length | 235 |
| Travel Length | 9.25 |
| Extended Length | 603.3 |
| Extended Length | 23.75 |
| Compressed Length | 368.3 |
| Compressed Length | 14.5 |
| Upper Mount Type | Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center) |
| Shock Absorber Body End Measuring Point | Center of Loop |
Vehicle Applications:
| Make | Model | Years |
| Cadillac | Escalade | 1999 to 2000 |
| Chevrolet | Express 2500 | 1996 to 2002 |
| Chevrolet | K1500 Suburban | 1992 to 1999 |
| Chevrolet | K2500 Suburban | 1992 to 1999 |
| Chevrolet | Tahoe | 1995 to 2000 |
| GMC | K1500 Suburban | 1992 to 1999 |
| GMC | K2500 Suburban | 1992 to 1999 |
| GMC | Savana 2500 | 1996 to 2002 |
| GMC | Yukon | 1995 to 2000 |
