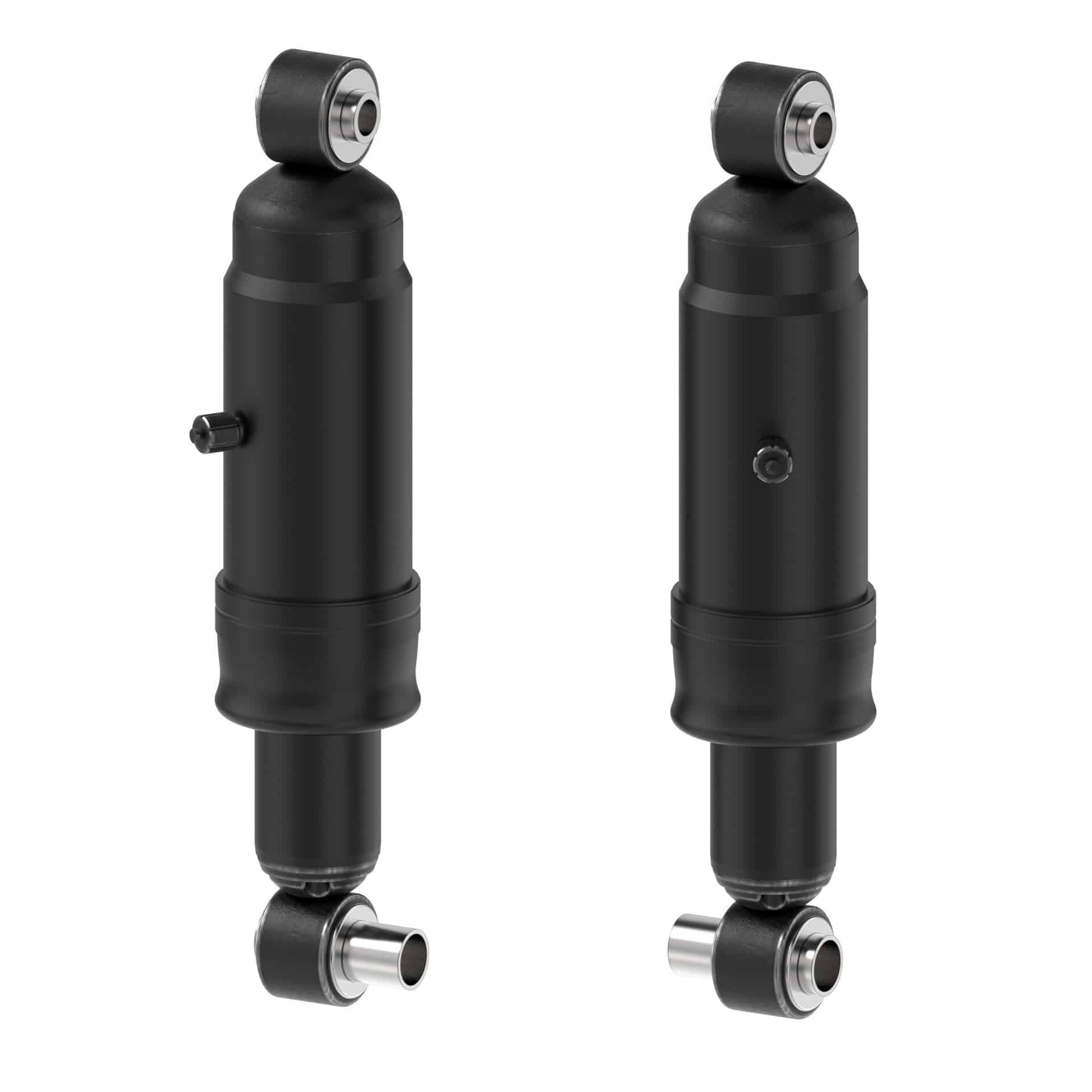

MON-MA785 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA785 Air Adjustable Air Shock Absorber Pack of 2 for Chevrolet Corvette
Features:
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Upper Mount Code | LS14 |
| Upper Mount Type | Loop Bushing and Sleeve Mount – 7/16″ Sleeve ID X 1.3/8″ Sleeve OAL |
| Dust Shield Material | Rubber |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Travel Length | 114.3 |
| Travel Length | 4.5 |
| Compressed Length | 9.5 |
| Compressed Length | 241.3 |
| Extended Length | 14 |
| Extended Length | 355.6 |
| Hydraulic Lockout | No |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 5/8″-16MM Sleeve ID X 2″ Sleeve OAL |
| Part Description | Air Shock Absorber |
| Body End Code | LS53 |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | Yes |
| Dust Shield Included | Yes |
| Parts Pack(s) | (2) P00437 |
Vehicle Applications:
| Make | Model | Years |
| Chevrolet | Corvette | 1963 to 1982 |
