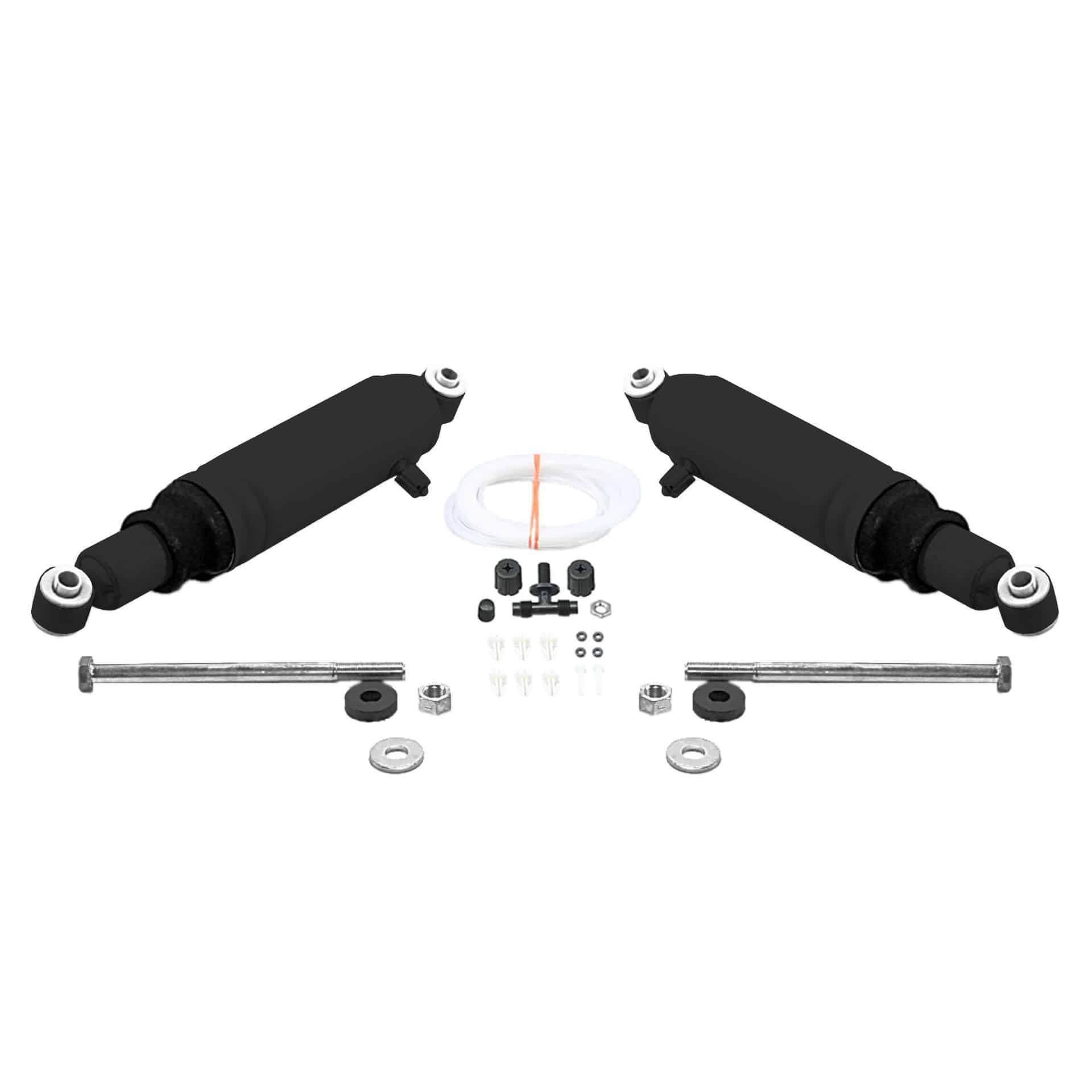

MON-MA817 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA817 Air Adjustable Air Shock Absorber Pack of 2 for Chevrolet G20
Features:
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Hydraulic Lockout | No |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Extended Length | 530.2 |
| Travel Length | 8.125 |
| Travel Length | 206.4 |
| Dust Shield Included | Yes |
| Internal Rebound Bumper | No |
| Includes Bump Stop | Yes |
| Upper Mount Type | Loop Bushing and Sleeve Mount – 1/2″ Sleeve ID X 1.11/16″ Sleeve OAL |
| Dust Shield Material | Rubber |
| Compressed Length | 323.8 |
| Extended Length | 20.875 |
| Body End Code | LS40 |
| Compressed Length | 12.75 |
| Upper Mount Code | LS40 |
| Parts Pack(s) | P00185,P00188 |
| Part Description | Air Shock Absorber |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 1/2″ Sleeve ID X 1.11/16″ Sleeve OAL |
Vehicle Applications:
| Make | Model | Years |
| Chevrolet | G10 | 1978 to 1995 |
| Chevrolet | G20 | 1978 to 1995 |
| GMC | G1500 | 1979 to 1995 |
| GMC | G15 | 1978 to 1978 |
| GMC | G2500 | 1979 to 1995 |
| GMC | G25 | 1978 to 1978 |
