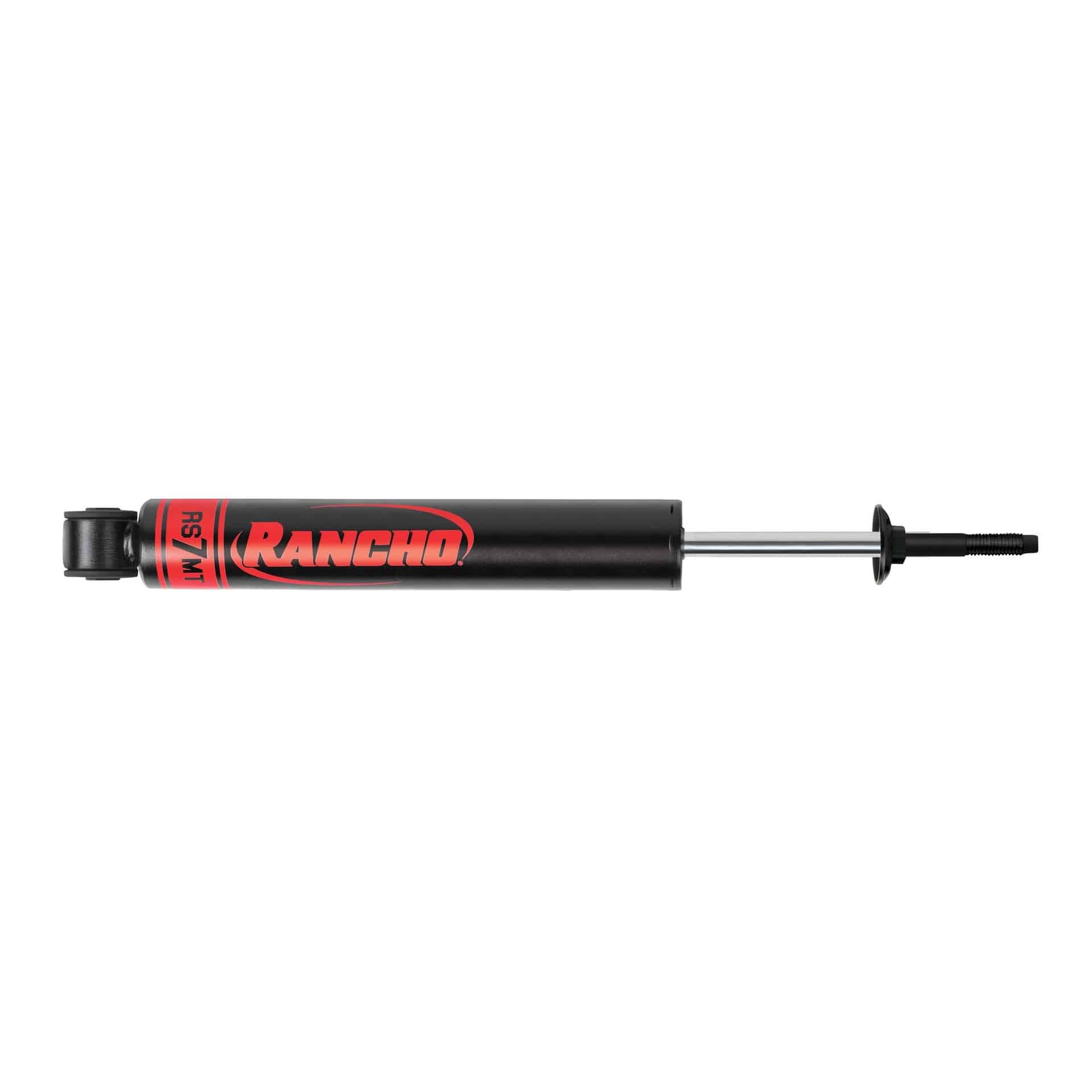

Monroe RS77197 - 1 Pair RS7MT Suspension Shock Absorbers

MON-RS77197 RS7MT Suspension Shock Absorber

Rancho RS7MT RS77197 Suspension Shock Absorber for Ram 2500

Features:

SMOOTH PERFORMANCE — Internal rebound bumper and shouldered rubber bushings help reduce noise, vibration and ride harshness while the PTFE-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
REDUCES FADE — Full-floating dividing piston and high-pressure nitrogen gas maintains constant pressure against the hydraulic oil, reducing aeration and shock fade
HANDLES EXTREME TEMPERATURE CHANGES — Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
STRONG AND DURABLE — Features a 14mm hardened chrome piston rod to resist scuffs & corrosion, double-welded loops at stress areas, double strength closure method and hot form reserve tube
BUY WITH CONFIDENCE — Comes with Rancho?™s Limited Lifetime Warranty
BOLD APPEARANCE — Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out
BUILT TO LAST — Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling; for extra protection, purchase shock boot RS1952 or RS1961
KEEPS DIRT AND DEBRIS OUT — Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the shock and contaminating the oil and destroying the internal seal
THE RIGHT FIT — Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware
PRECISE HANDLING AND PERFORMANCE — Deflective Disc Valving features digressive, linear or progressive tuning based on application requirements for precision handling and performance on- and off-road

Product Video – YouTube
Product Video – YouTube
Product Video – YouTube
Product Video – YouTube
Product Video – YouTube
Product Video – YouTube
Product Video – YouTube
Product Video – YouTube
Product Video – YouTube
Product Video – YouTube
Product Video – YouTube

Application tuned for precision on-road and off-road handling, Rancho® RS7MT® monotube shocks are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT shocks feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.

Attributes:

9620	No
Air Ride Suspension	No
Air Adjustable	No
10535	0
10534	0
10528	No
10529	No
10526	Progressive
7233	No
Compressed Length	14.53
Compressed Length	369.1
Extended Length	22.13
Extended Length	562.1
Travel Length	7.6
Travel Length	193
Travel Length	7.6
Travel Length	193
Shock Absorber Rod End Measuring Point	Center of Loop
Shock Absorber Body End Measuring Point	Base of Stem
Gas Charged	Yes
Mounting Hardware Included	Yes
Internal Rebound Bumper	Yes
10531	Painted
Rod Diameter	0.551181102
Body Diameter	1.97
Body Diameter	50
Cylinder Outside Diameter	1.97
Cylinder Outside Diameter	50
Body Material	Steel
Color	Black
Finish	Painted
Boot	No
Dust Shield Included	No
Shaft Material	Chromed
Includes Bump Stop	No
Internal Rebound Spring	No
Grade Type	Performance
Type	Telescopic
Lower Mount Code	LS47
Upper Mount Type	Stem Mount – 2.5/8″ Stem Length X 1/2″-13 Thread Pitch
Upper Mount Code	S5
Parts Pack(s)	P01167
2329	Steel
1385	Black
5126	Black
Lower Mount Type	Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL
10527	No
10530	Passive
1183	14
Shock Absorber Bore Size	1.811023622
9801	46
9792	No
3085	Single Tube
Adjustable Damping	No
9619	No
9476	No
Spring Seat Included	No
Spring Isolators Included	No
9621	No
Spring Included	No
Bearing Plate Included	No
Coil Over Springs Included	No
New Or Remanufactured	New
9618	No
9615	No
