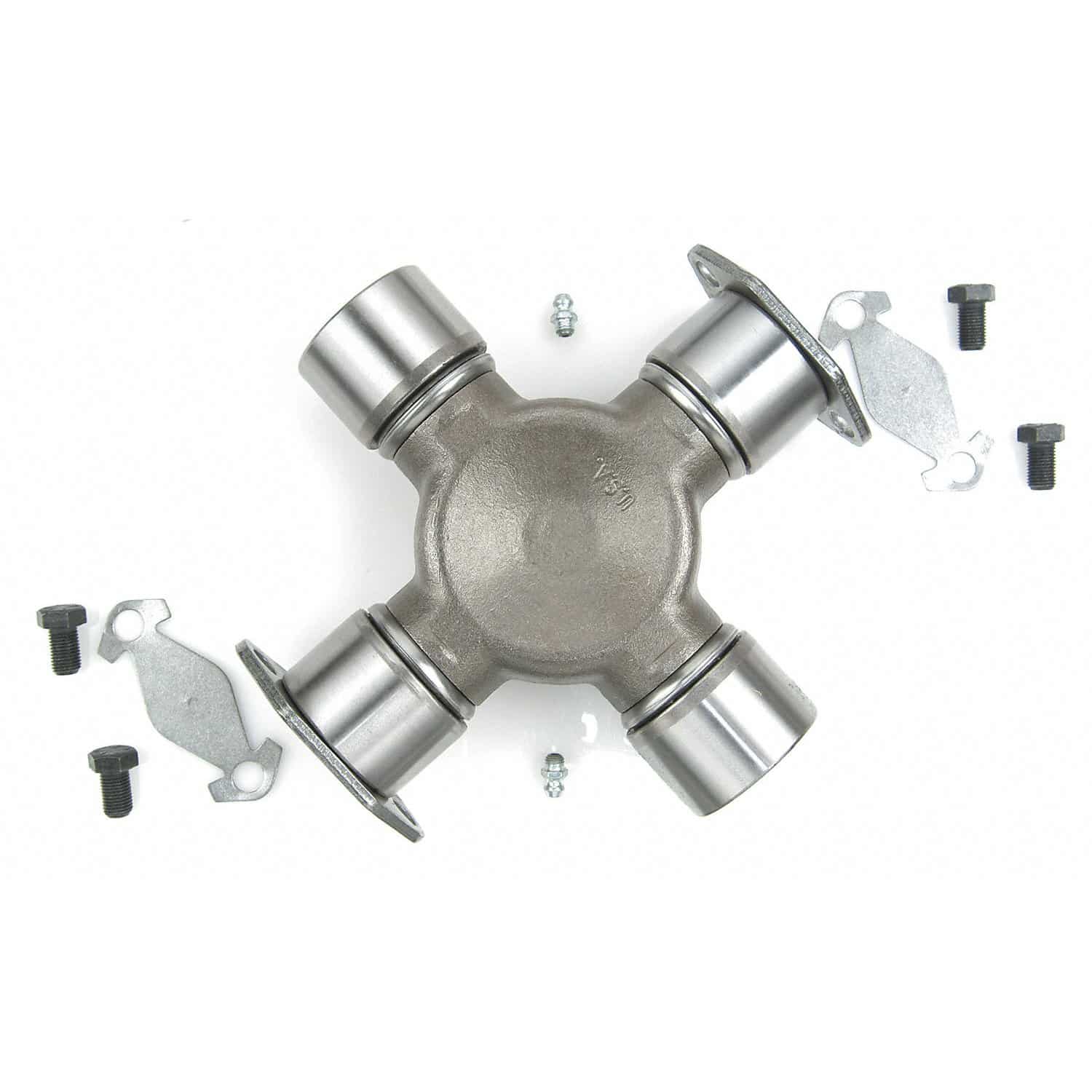

Moog MOG-477 Greaseable Premium Universal Joint

MOG-477 Greaseable Premium Universal Joint

MOOG 477 Greaseable Premium Universal Joint for Ford, GM, IH & Mack (1760 Series “Half Round”)

Features:

BUILT TO LAST — Rugged design specifically engineered for fleets, off-highway and commercial vehicles
RIGOROUS TESTING — Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
RELIABLE PERFORMANCE — Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
INHIBITS PREMATURE WEAR — Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
GREASEABLE DESIGN — Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
KEEPS DIRT OUT — Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
STRONG AND DURABLE — Bearing cups are cold-formed, case-hardened and precision ground for strength and durability

Backed by superior materials and rigorous testing, MOOG Heavy Duty universal joints deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Atributes:

Part Description	Universal Joint
Greaseable	YES
Length Axis 2	7
Length Axis 2	115.8
Length Axis 1	7.093
Length Axis 1	180.1
Grade Type	Premium
Bearing Cap Type	2 Welded Plate & 2 Plain Round Bearings
Bearing Cap Axis 2 Diameter	49.1
Bearing Cap Axis 2 Diameter	1.937
Bearing Cap Axis 1 Diameter:	49.1
Bearing Cap Axis 1 Diameter:	1.937
Bearing Type A	Round Plain
Bearing Type B	Round Welded Plate
Length Measurement A	Outside of Bearing To Outside of Bearing
Length Measurement B	Inside of Welded Plate to Inside of Welded Plate
Lube Fitting Location	Two regular lube fittings in cross
OE Series	Spicer 1760
U-Joint Identification	2 Welded Plate & 2 Plain Round Bearings
