MSD-64253 Digital 6AL Ignition Control – Black

MSD-64253 MSD Digital 6AL Ignition Control – Black

Built-In Adjustable Rev-Limit Control

Features:

• Compatible with 4, 6 or 8-cylinder engines
• Built-in LED for system checks
• Set an rpm limit with two rotary dials in 100 rpm increments
• All wires exit through a locked, sealed connector
• .7 Amp per 1,000 RPM
• Efficient components use less current to produce more power
• 12-15 Volts, 7 Volt Start
• High output with 530 volts and 135mJ of spark energy

Product Video – YouTube
Product Video – YouTube
Product Video – YouTube

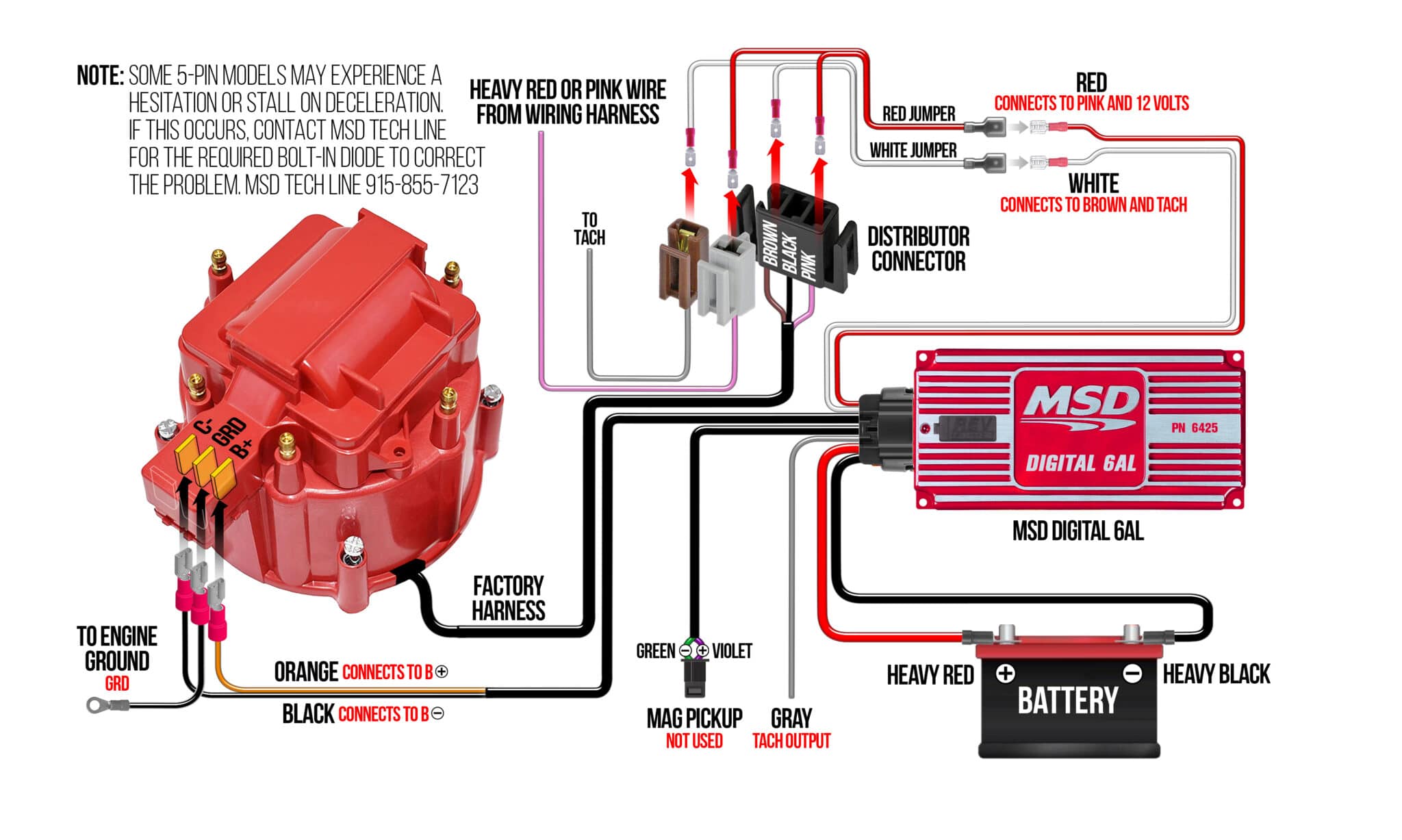

The wiring of the Digital 6AL is routed out one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean. The rev limiter of the 6AL is located right on top of the housing for easy access to the two rotary dials to set the limit in 100 rpm increments.

The Digital 6AL is supplied with the wiring harness and the components you’ll need for installation. The 6AL is also supplied with vibration mounts. Both ignitions are compatible on 4, 6 or 8-cylinder engines with 12-volt, negative ground electrical systems. They’ll accept trigger inputs from breaker points, amplifiers and magnetic pickups.

Inside the Digital 6AL you’ll find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current. In fact, the Digital 6AL delivers over 530 volts to the coil with up to 135mJ of spark energy for every firing. Increased output combined with MSD’s provenmultiple spark series is a win-win situation.

The MSD 6AL Ignition Control set the standards that other ignitions strive to reach. In fact, you’ll find ignitions from other companies that carry the 6AL name (and in some cases, the same part number). MSD raised the bar even higher with the revised Digital 6AL Ignition Control.
