MSD-6564 Digital 6M-3L Marine Ignition
£705.95 Inc VAT
Availability: 51 in stock
MSD-6564 MSD Digital 6M-3L Marine Ignition
Marine certified, digital capacitive discharge ignition with built-in rev limiter and start retard.
Features:
- Works on 4, 6 and 8 cylinder engines
- Can be triggered by magnetic pickup, amplifier, and points inputs
- 0.8 Amps per 1,000 RPM
- Reverse polarity and overheat protection provide ultimate reliability
- Shift interrupt feature eases shifting
- Highly efficient, low current draw for extended battery life
- Large, easy to read LED display
- Easy setup of features with three rotary dials on the face of the unit
- Records highest RPM the engine turned for last 20 minutes of run time
- LED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
- 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
- Fully potted housing to withstand demanding marine conditions
- Full delivery of spark energy and easy starting down to 6 volts battery supply
- MSD’s smoothest rev limiter yet, protecting parts and saving your engine
- Sealed connector for clean wiring and trouble-free operation
- Built-in Start Retard adjustable in 0?, 10? or 20? increments for quick, easy starts and extend starter life
We’ve raised the bar and added an all-new UL listed marine ignition box to our lineup. The 6M-3L is a fully sealed unit with a single wiring connector makeing installation neat and easy.

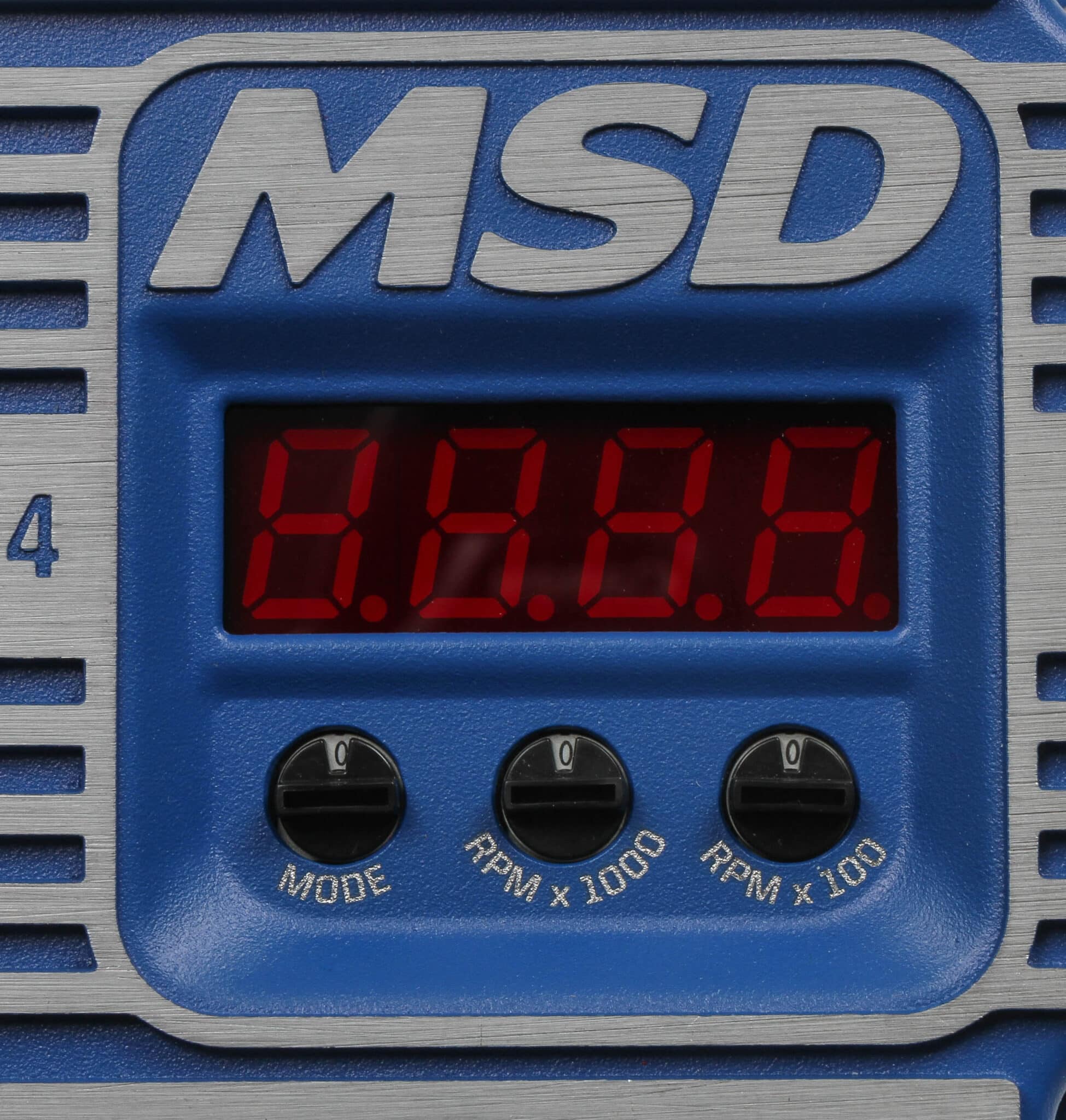

Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8’s and even display battery voltage with the turn of a knob.
The 6M-3L is a capacitive discharge ignition that multi-sparks from idle to 3,000 RPM providing a clean idle and quick throttle response. Above 3,000, capacitive discharge sparks will run clean through 12,000 RPM . Boasting more features and higher spark energy than its predecessor, the 6M-3L is the performance upgrade your boat needs!
Attributes:
| Current Draw | 1000 RPM |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 135 w/ Blaster Coil / 150 w/ HVC Coil PN 8250 |
| Spark Series Duration | 20° Crankshaft Rotation |
| Sub Category | Control Modules |
| Terminal Gender | Male |
| Terminal Quantity | 12 |
| Voltage Required | 6-18 |
| Warranty | Manufacturer’s Limited 1 Year Warranty |
| Weight and Size | 2.5 lbs. 7.89L x 4.00W x 1.87H |
| Connector Gender | Male Female |
| Connector Quantity | 1 |
| Color | Blue |
| Emission Code | 3 |
| Features | Start Retard |
| Grade Type | Marine |
| Ignition Type | Performance |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 535-550 |
| Product Type | Ignition |
| Category | Ignition |
| Brand | MSD |
| Width | 4 Inch |
| Maximum RPM | 12,000 RPM |
| Length | 7.89 Inch |
| Height | 1.87 Inch |
| Weight | 1.798 kg |
|---|
