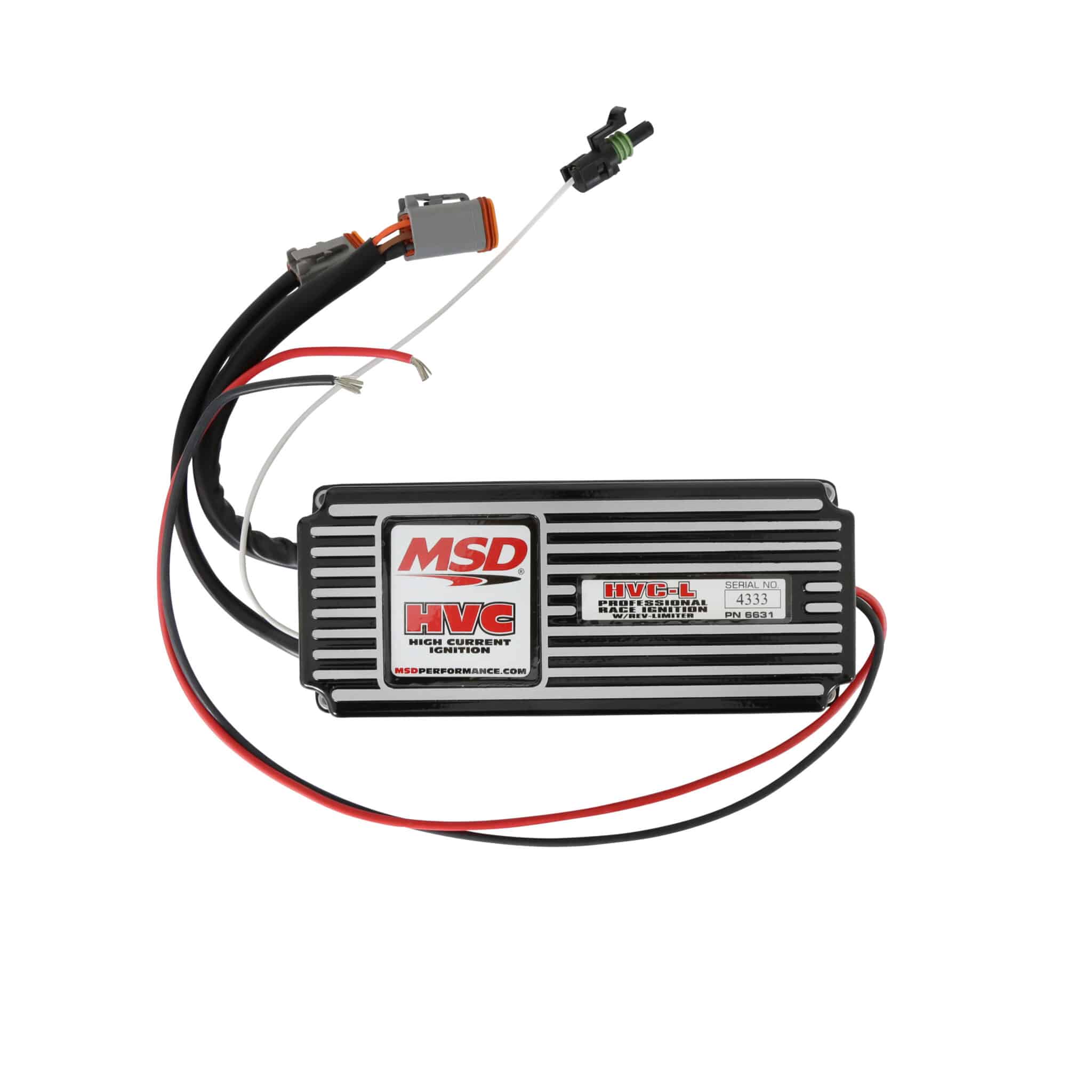

MSD-6631 6 HVC, Professional Race with Fast Rev Limiter

MSD-6631 MSD 6 HVC, Professional Race with Fast Rev Limiter

For use in Circle Track and Professional Racing, with Fast Rev Limiter

Features:

Must be used with HVC Coil PN 8250
550 primary voltage output to coil
150 millijoules per spark up to 15,000 RPM
Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
12-18 Volts, Negative Ground
Built-in reverse polarity protection circuit
Includes built-in Fast rev limiter
No CARB Exemption Order Number
6-pin Weathertight connector, mandatory for NASCAR use
Multiple sparks for 20 degrees of crankshaft rotation
Accepts breaker points, amplifier and magnetic pickup trigger inputs
15,000 RPM with 14.4 Volts

Product Video – YouTube

The Fast Rev limiter is very quick and accurate compared to our Soft Touch Rev limiter.

Professional race teams have been relying on the power and endurance of our 6 HVC Ignition Control. The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it’s all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.

Attributes:

Terminal Quantity	11
Voltage Required	12-18
Warranty	Manufacturer’s Limited 1 Year Warranty
Weight and Size	5.1 lbs.,8L x 4W x 2.25H
Height	2.25 Inch
Length	8 Inch
Maximum RPM	15,000 RPM
Width	4 Inch
Terminal Gender	Male Female
Sub Category	Control Modules
Spark Series Duration	20 Degree Crankshaft Rotation
Spark Energy (mJ per spark)	150
Secondary Voltage	40,000
Product Type	Ignition Box
Primary Voltage	550
Mounting Hardware Included	Yes
Mount Type	Surface Mount
Ignition Type	Performance
Grade Type	Performance
Emission Code	4
Connector Quantity	3
Connector Gender	Male Female
Color	Black
Category	Ignition
Brand	MSD
