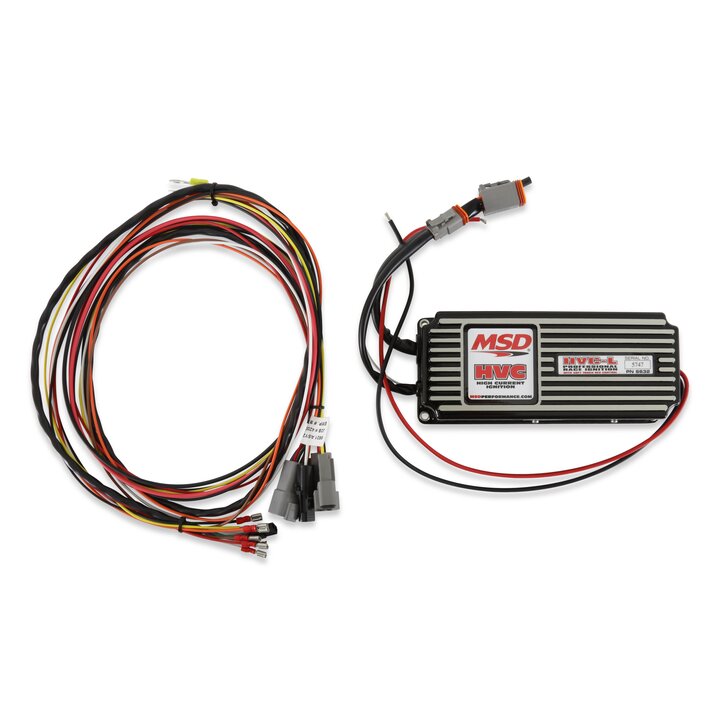

MSD-6632 6 HVC-L with Soft Touch Rev Limiter

MSD-6632 MSD 6 HVC-L with Soft Touch Rev Limiter

For use in Circle Track and Professional Racing includes built-in Soft Touch Rev limiter

Features:

Multiple sparks for 20 degrees of crankshaft rotation
15,000 RPM with 14.4 Volts
12-18 Volts, Negative Ground
Must be used with HVC Coil PN 8250
Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
No CARB Exemption Order Number
6-pin Weathertight connector, mandatory for NASCAR use
150 millijoules per spark up to 15,000 RPM
550 primary voltage output to coil
Includes built-in Soft Touch rev limiter
Accepts breaker points, amplifier and magnetic pickup trigger inputs

Product Video – YouTube

The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it’s all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.

The 6 HVC-L Ignition has a built-in rev limiter that will save the engine from overrev damaged caused by spins, missed shifts or driver misfortune. This means there is no need to mount an external rev control (i.e., less wiring and reduced weight)!

Attributes:

Secondary Voltage	40,000
Primary Voltage	550
Product Type	Ignition Box
Spark Energy (mJ per spark)	150
Spark Series Duration	20 Degree Crankshaft Rotation
Sub Category	Control Modules
Terminal Gender	Male Female
Terminal Quantity	11
Voltage Required	12-18
Warranty	Manufacturer’s Limited 1 Year Warranty
Weight and Size	5.1 lbs.,8L x 4W x 2.25H
Brand	MSD
Category	Ignition
Color	Black
Connector Gender	Male Female
Connector Quantity	3
Emission Code	4
Grade Type	Performance
Height	2.25 Inch
Length	8 Inch
Maximum RPM	15,000 RPM
Width	4 Inch
Ignition Type	Performance
Mount Type	Surface Mount
Mounting Hardware Included	Yes
