MSD-75643-HC High-Current Solid-State Relay 35Ax4, Black

MSD-75643-HC High-Current Solid-State Relay 35Ax4, Black

High-Current Solid-State Relay 35 Amp per channel up to 140 Amp continuous

Features:

• A PWM signal can be used in the Solid-State Relay Module with a maximum frequency of 150 hertz and a duty cycle range from 50% to 90%.
• Diagnostic LED’s and status indicators
• Single wire activation by switching power or ground
• Combined total continuous current rating of 140 amps
• Channels can be run in parallel for devices requiring more than 35 Amp single-channel rating
• Available in Red or Black
• Operates from 7-Volts to 20-Volt supply
• Clean, easy install with minimum wiring
• 4 Independent Channels, 35 Amps each continuous or 100 Amps for 8 seconds
• Over-temp, short circuit and overload protection
• Multiple mounting options

Product Video – YouTube
Product Video – YouTube

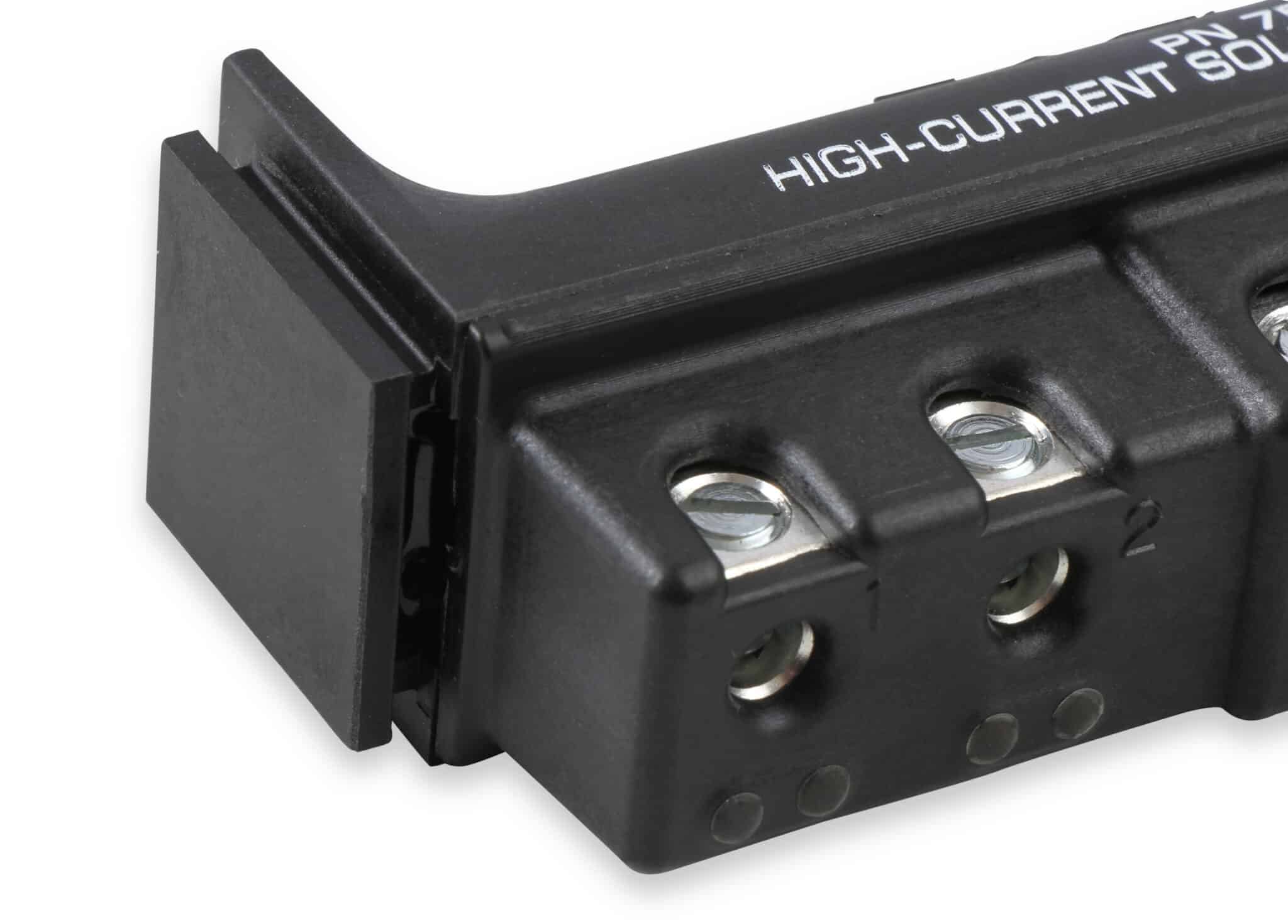

LED status indicators ensure proper wiring and operation of each channel. Should a problem arise, the relay block has built-in automatic over-temp, short circuit, and overload protection, as well as a channel reset. The solid-state high current relay can easily be mounted using the supplied hardware and mounting tabs that can be rotated 90° to accommodate various mounting locations. It’s compact and clean design will make your wiring project a breeze.

Clean up your wiring with an MSD Solid-State High Current Relay Block. This high current module takes the place of 4 standard relays and eliminates unsightly wiring. Four independent channels can be activated using either power or ground. Each channel is capable of handling up to 35 Amps of continuous current, providing up to 140 Amps of power. It also has the capability of Pulse Width Modulation (PWM). With a PWM input, you can control the output at a rate of 15 hertz and a duty cycle of 50-90%. Controls electric fans, water pumps, nitrous solenoids, auxiliary lighting and any other electrical accessories that would normally require a relay.
