MSD-7720 Power Grid 7 Ignition Control

MSD-7720 MSD Power Grid 7 Ignition Control

Universal – Designed for Use With Power Grid Controller PN 7730 or 77303 Only

Features:

For use with Power Grid PN 7730 or PN 77303 only
1.3 Amp per 1,000 RPM
12-18 Volts, Negative Ground
15,000 RPM with 14.4 Volts
Power Grid PN 7730/77303 mounts directly on top
High output spark for Power Grid System

Product Video – YouTube

For use with Power Grid Controller only (PN 7730 or PN 77303).

The Power Grid Ignition Control has been specially designed to mount to the Power Grid System Controller box, PN 7730/77303. This Ignition output only controller packs higher output than the current programmable units.

Attributes:

Height	2.25 Inch
Width	5 Inch
Secondary Voltage	50,000 RPM
Maximum RPM	15,000 RPM
Length	7.5 Inch
Current Draw	1000 RPM
Brand	MSD
Category	Ignition
Color	Black

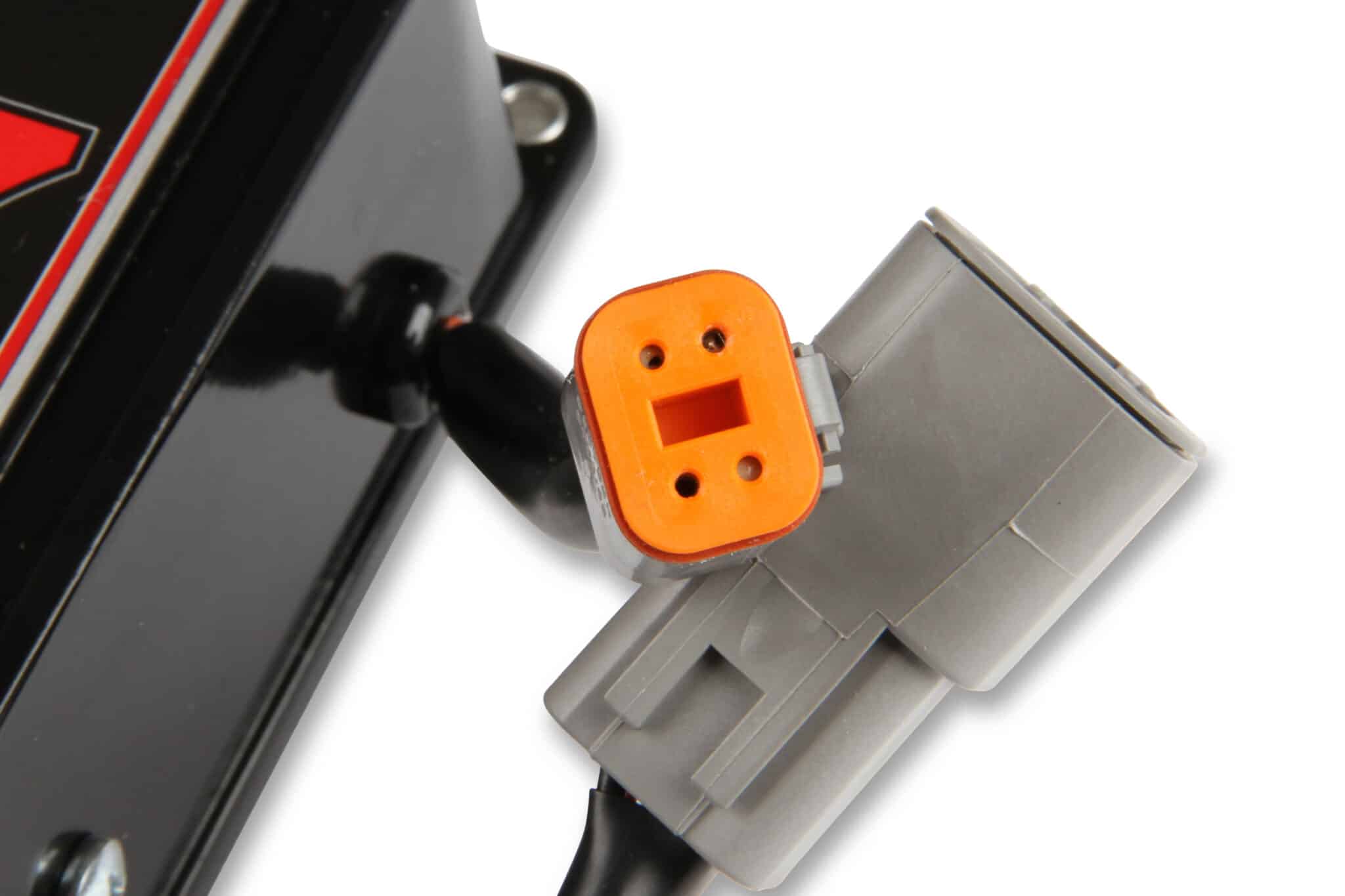

Connector Gender	Male Female
Connector Quantity	2
Emission Code	4
Grade Type	Race
Ignition Type	Performance
Mount Type	Surface Mount
Mounting Hardware Included	Yes
Primary Voltage	545-570
Product Type	Power Grid Controller
Spark Energy (mJ per spark)	200-220
Sub Category	Control Modules
Terminal Gender	Male Female
Terminal Quantity	8
Voltage Required	12-18
Warranty	Manufacturer’s Limited 1 Year Warranty
Weight and Size	2.9 lbs., 7.5L x 5W x 2.25H
