MSD-8201 Ignition Coil – Pro Power Series – Red

MSD-8201 MSD Ignition Coil – Pro Power Series – Red

Use with MSD 7 and 8 Series Ignitions ONLY – Short-Duration Applications

Features:

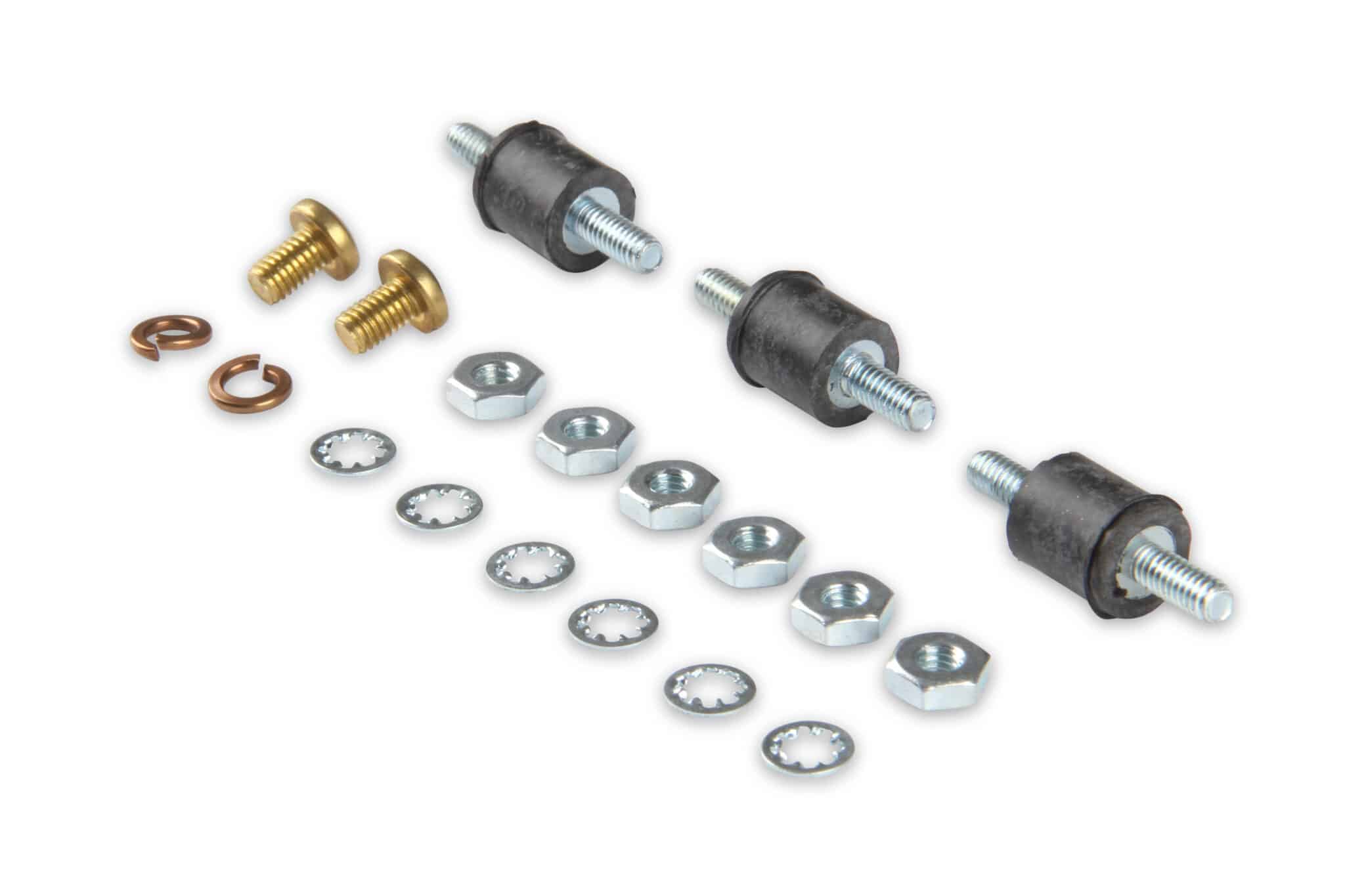

Supplied with rubber shock mounts
High voltage coil designed for short duration applications only
Extremely low primary resistance
For MSD 7 and 8 ignitions only, not for use on street vehicles
Housing is molded from a durable and high dielectric polyester
Primary and secondary windings are encased in Ciba polyurethane for vibration protection

Sold Individually.

The special windings of the Pro Power Coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 Series Ignition Control. The MSD Pro Power Coil is a great choice for short-duration applications such as drag racing.

This Coil is designed for use with an MSD 7AL-2 (#7220), 7AL-2 Plus (#7222), 7AL-3 (#7230), and MSD 8 (7805) Ignitions only.

Attributes:

Product Type	Ignition Coil
part type	Ignition Coil
Maximum Voltage	43,000
Inductance (mH)	1
Emission Code	4
Color	Red
Category	Ignition
Brand	MSD
Peak Current	800 Milliamps
Primary Resistance	0.03 Ohm
Secondary Resistance	240 Ohm
Spark Duration	0.18 Milliseconds
Warranty	Manufacturer’s Limited 1 Year Warranty
Type	Drag Race / Short Duration Use
Turns Ratio	4.17
Sub Category	Ignition Coil
