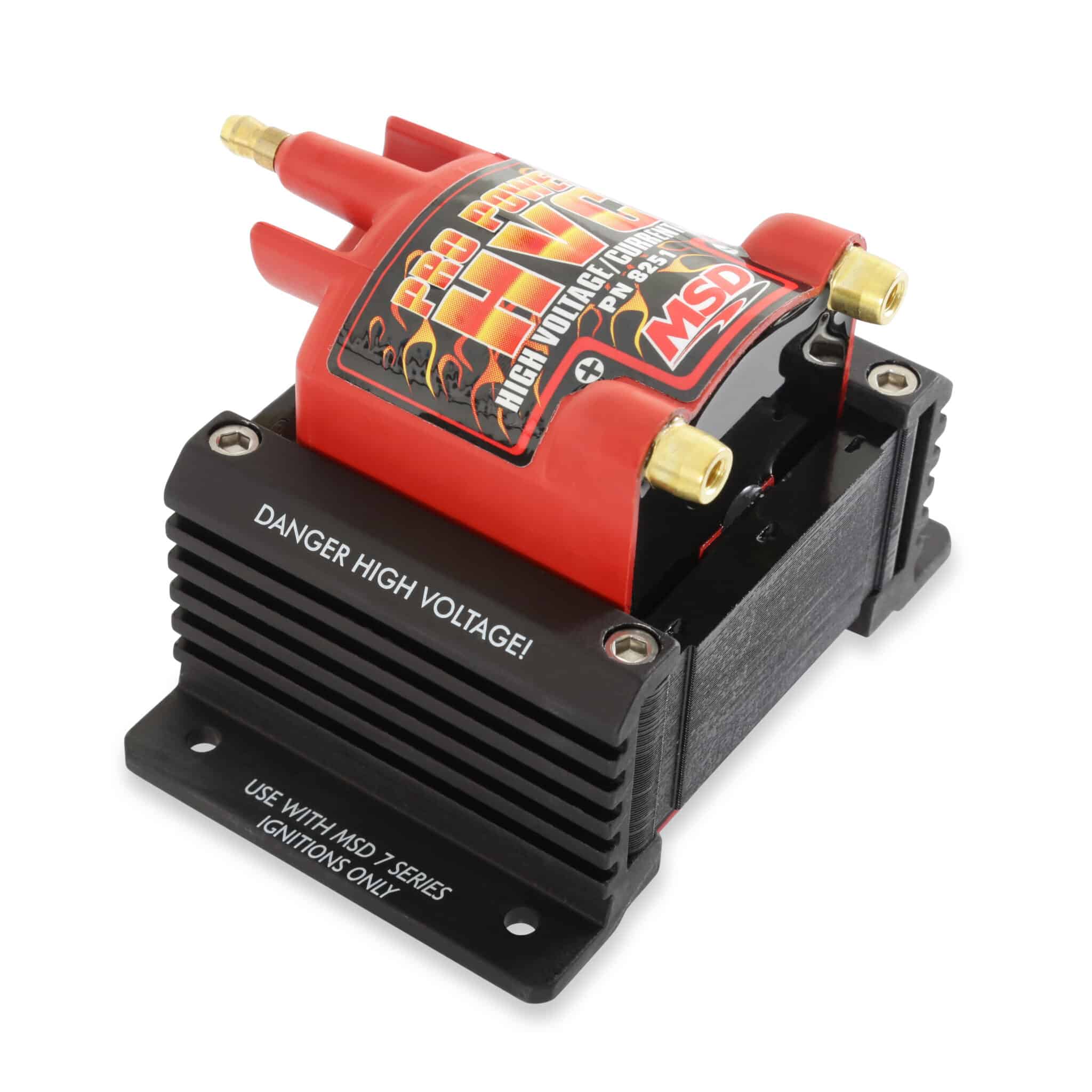

MSD-8251 Ignition Coil – Pro Power HVC – Red

MSD-8251 MSD Ignition Coil – Pro Power HVC – Red

Universal – Use with MSD 7 or 8 Series Ignition Control

Features:

• Supplied with rubber shock mounts
• 85:1 turns ratio and lower primary resistance produce high voltage output
• No CARB Exemption Order Number
• Spark plug style terminal and threaded brass primary studs
• Efficient E-core winding design produces more voltage and current
• Windings are encased in red epoxy and secured with extruded brackets
• Designed for racing applications with an MSD 7 Series Ignition Control

Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap, but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy!
