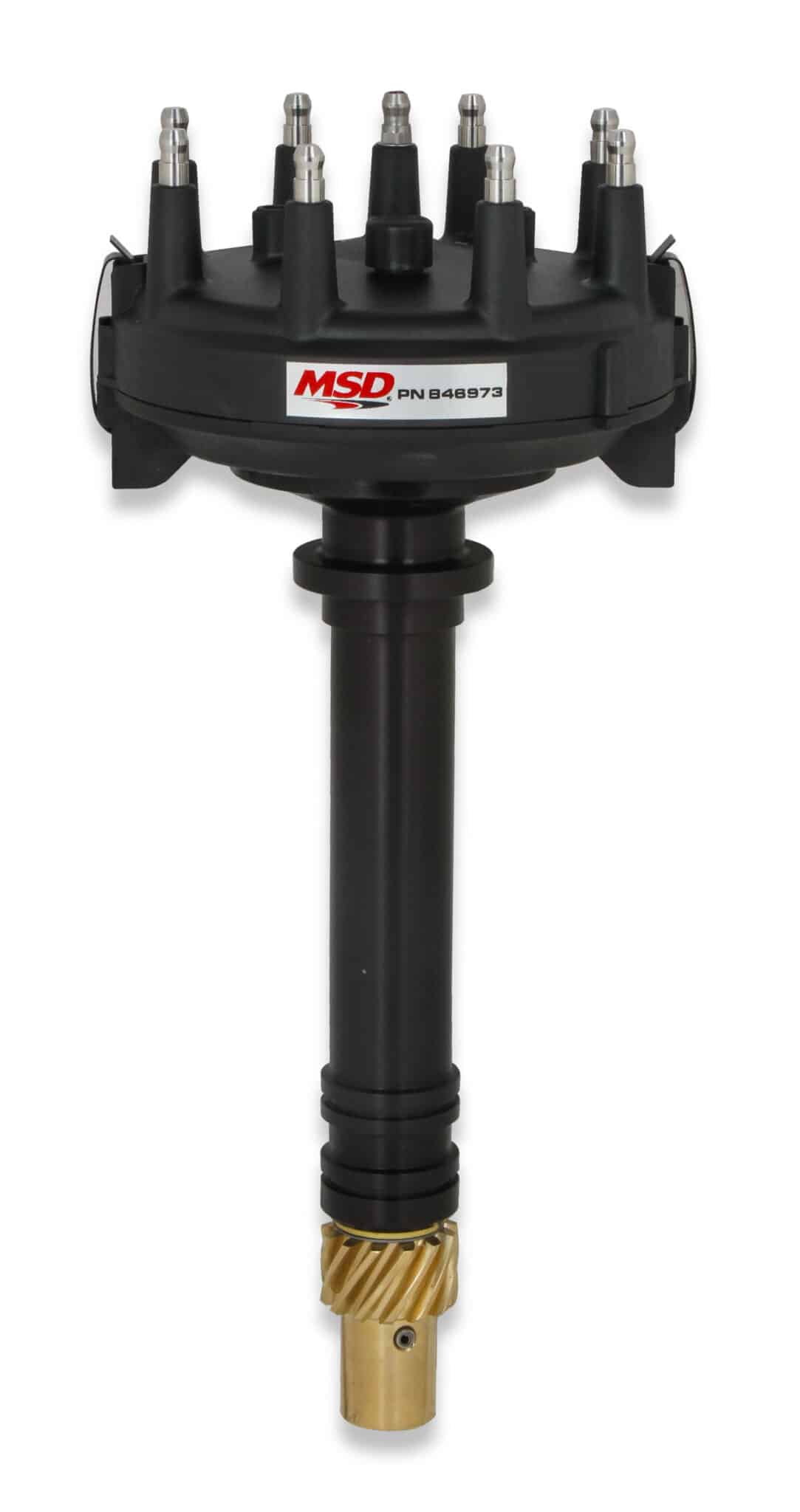

MSD-846973 Black Chevy Low-Profile Crank Trigger Distributor

MSD-846973 MSD Black Chevy Low-Profile Crank Trigger Distributor

MSD BLACK low-profile Chevy racing distributor.

Features:

• Supplied with bronze gear
• Must be used with an MSD Crank Trigger and MSD Ignition Control
• Designed to fit low in the block to clear firewall and intake combinations
• Black anodized, CNC billet aluminum housing provides great strength and long lasting good looks
• Special oil tract improves lubrication to the distributor and cam gear
• O-ring seals can be added to modified blocks to improve oil pressure control
• Supplied with large diameter HEI style distributor cap and rotor
• Oversized polished steel shaft with a QPQ coating for friction reduction
• Shaft is guided by a sealed ball bearing and an extra long sintered bushing

The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs.

The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. This includes a large diameter cap with wide spaced terminals and an injection molded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing
