MSD-8580 Ford V8 351C-460 Billet Distributor

MSD-8580 Ford V8 351C-460 Billet Distributor

Fits 351C, 351M, 400, 429, 460 with iron gear. Must be used with an MSD 6, 7 or 8-series ignition.

Features:

• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Must be used with an MSD Ignition Control
• No CARB Exemption Order Number
• Advance weight pins are staked and tig welded to the plate
• Mechanical advance assembly can be locked out for crank trigger systems

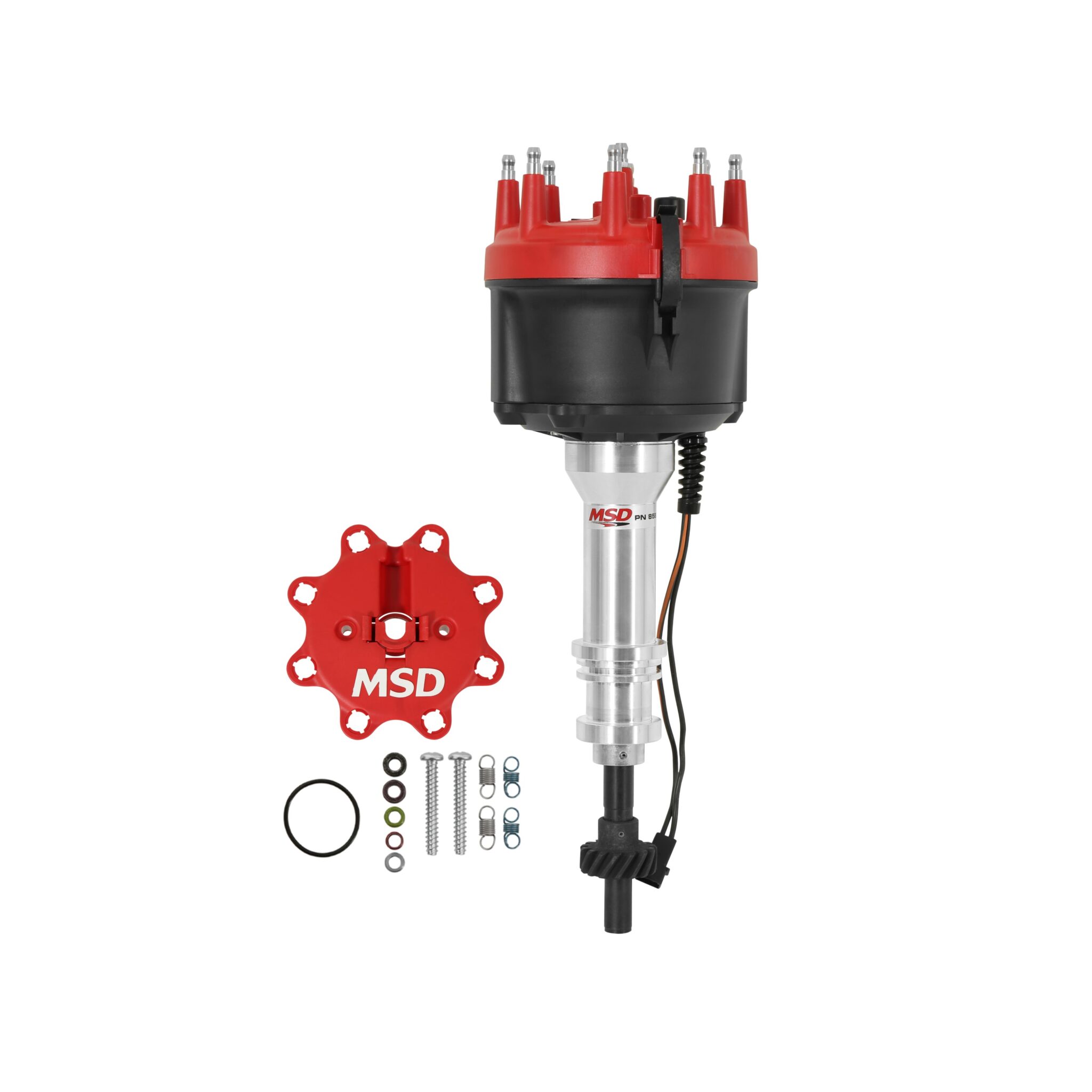

• Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• CNC machined billet aluminum housing and Dupont Rynite base
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Nylon pads ensure smooth operation of the advance weights
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing

The steel shaft that spins the advance and reluctor receives a friction reducing coating plus is guided by a sealed ball bearing and long sintered bushing. This combination provides stable timing signals and spark delivery at any rpm. Triggering chores are handled by MSD’s race proven, maintenance-free magnetic pick-up.

For Ford enthusiasts that are serious about performance! Just under the brass terminals of the MSD cap and rotor is an easy-to-adjust mechanical advance assembly. The assembly is fine blanked from chro-moly steel, TIG-welded for strength plus receives a QPQ coating. The precision weights glide on nylon bushings for smooth advancement and different springs and stop bushings are supplied so a variety of advance curves can be tuned.

*Will not clear some factory-style Shaker Hood Scoops.
