MSD-89611 SPST Relay w/Socket Harness

MSD-89611 MSD SPST Relay w/Socket Harness

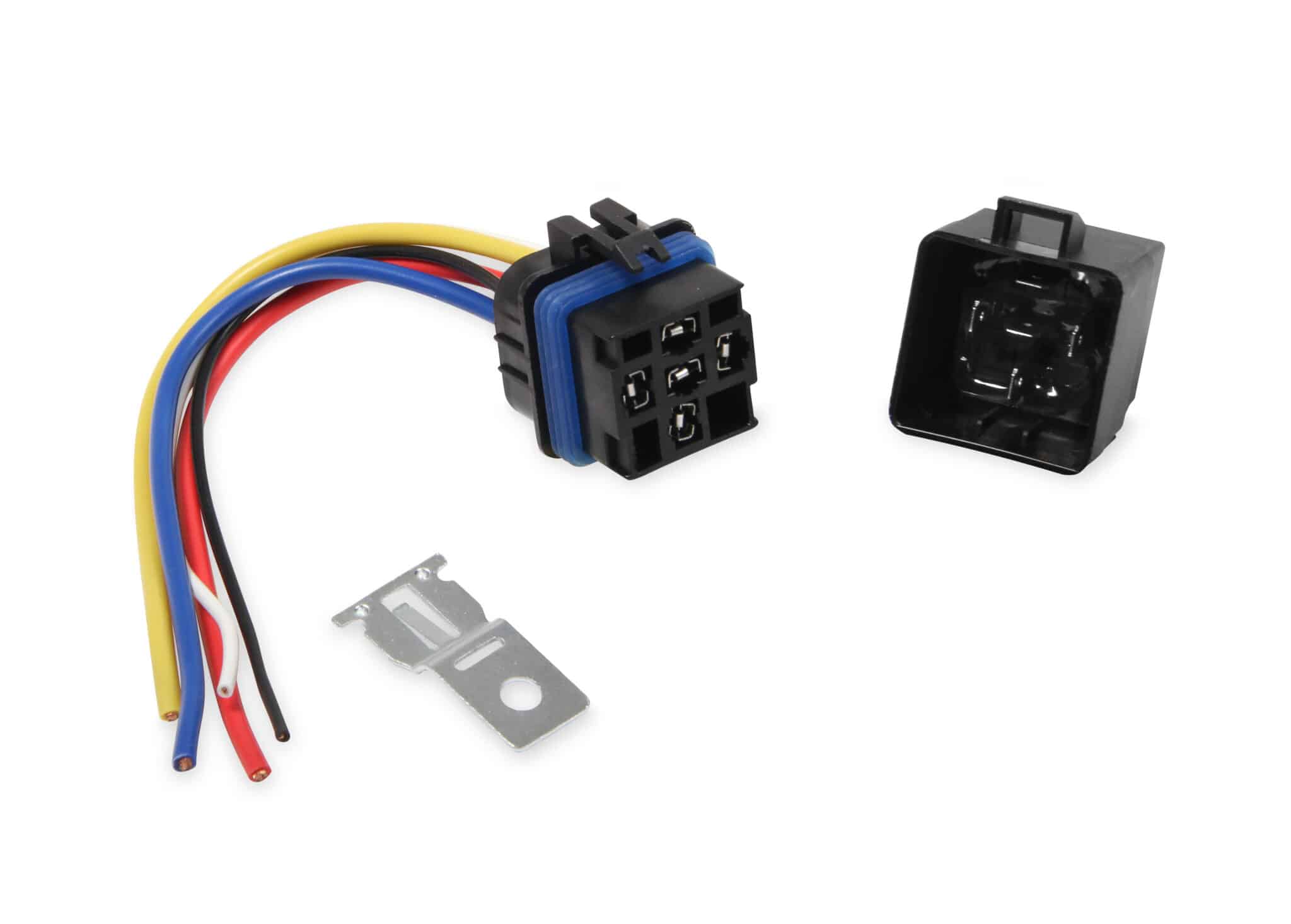

The SPST Waterproof High Current Relay is rated at 30 amps with an input voltage of 12 volts DC, supplied with Socket Harness.

Features:

• Ideal for use in: marine, dirt track cars, and off-road trucks & Jeeps
• 40/30Amp – 30 AMP continuous load & 40 AMP momentary
• Pigtail wires are 7” long
• Wire Gauge: (3) 12 gauge wires on blue (30 common), yellow (87 normally open), red (87a normally closed) – (2) 18 gauge wires on black (85 ground) & white (86 +12V)
• Works in normally open or normally closed circuits
• Metal mounting bracket – can be mounted under-hood or just about any other location on vehicle
• 12-Volts DC
• Waterproof relay w/ pigtail harness & sealed connector

MSD’s waterproof relay are ideal for use on electric fuel pumps, water pumps, cooling fans, off-road lights, and any other application that is exposed to muddy or wet conditions. This relay handles 40 amps momentary and 30 amps for continuous use. The pigtail harness has 7″ long leads w/ heavy duty 12 & 18 gauge wire. The connector has the wires molded in rubber and a gasket for a leak proof seal. Ideal for use on marine applications and vehicles that are power-washed out (Jeeps, 4×4 Trucks, UTV’s, and dirt track race cars).
