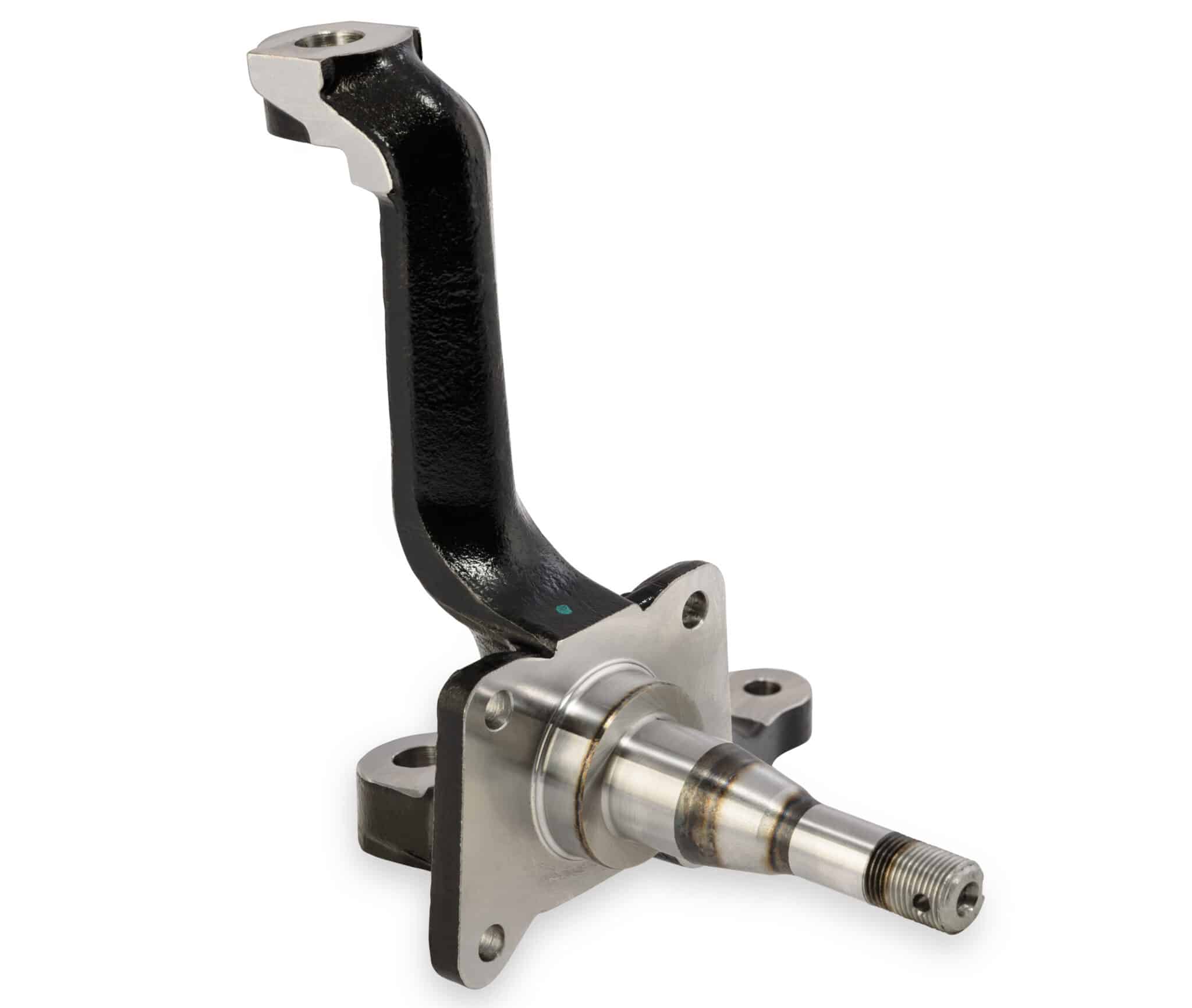

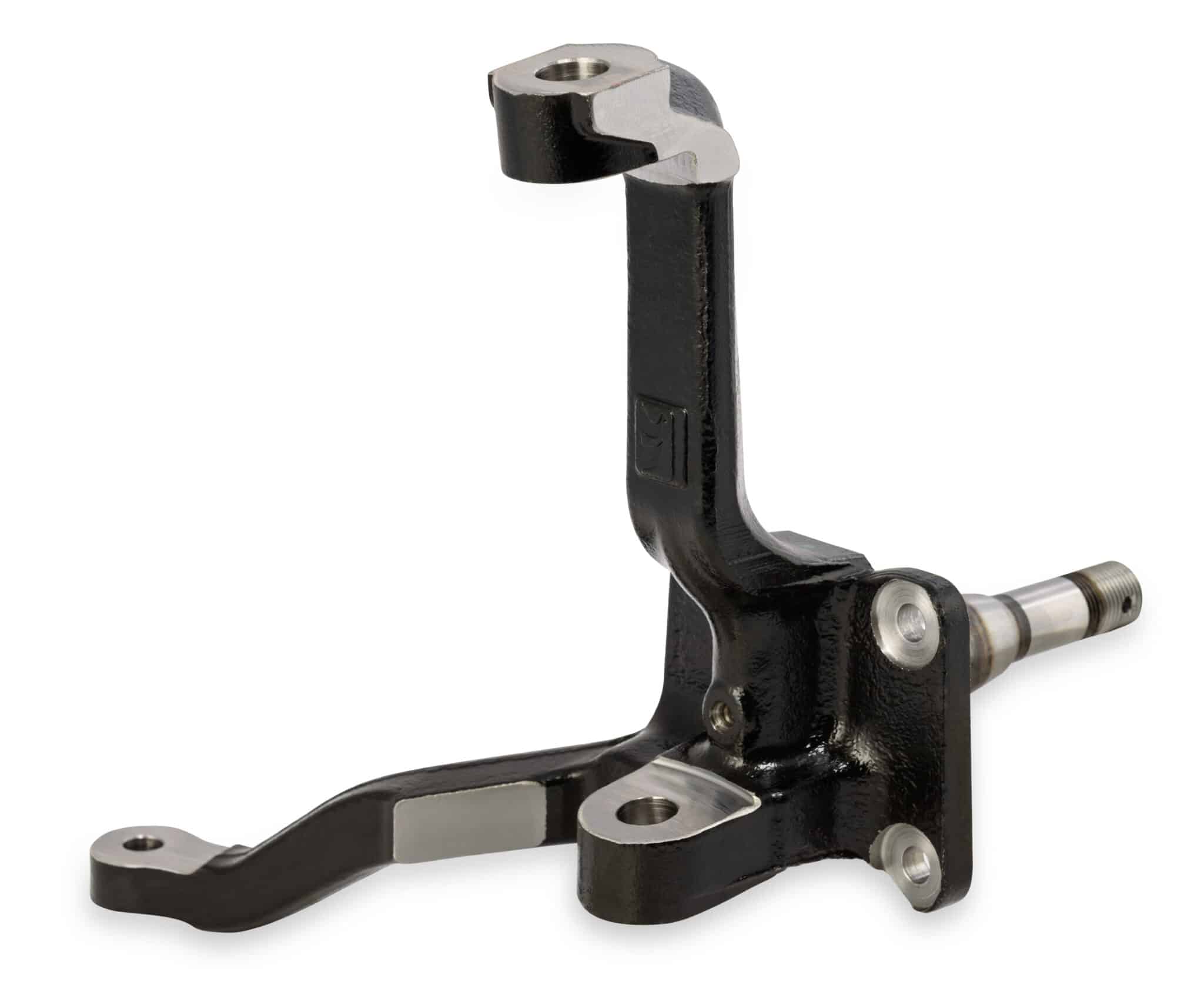

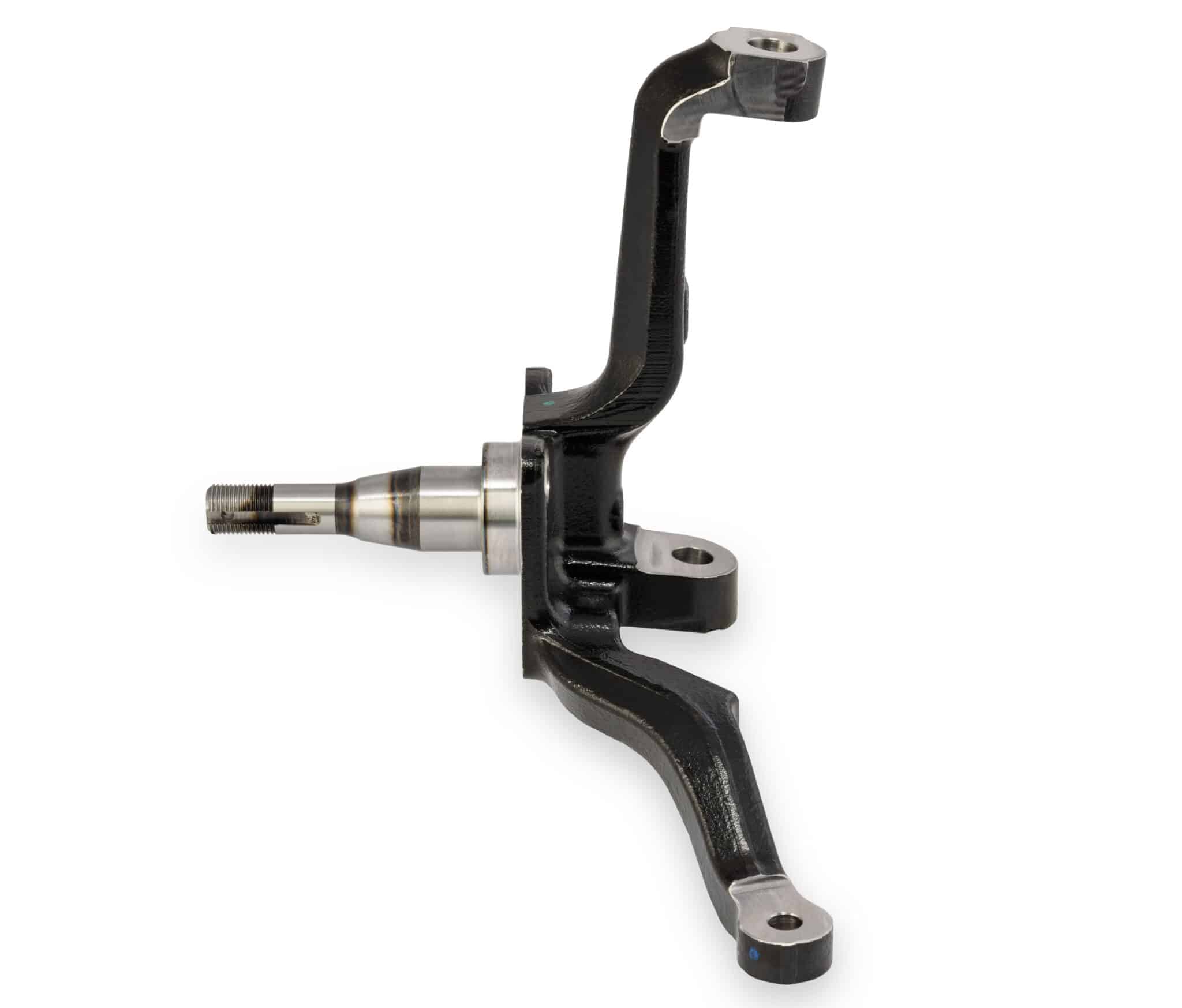

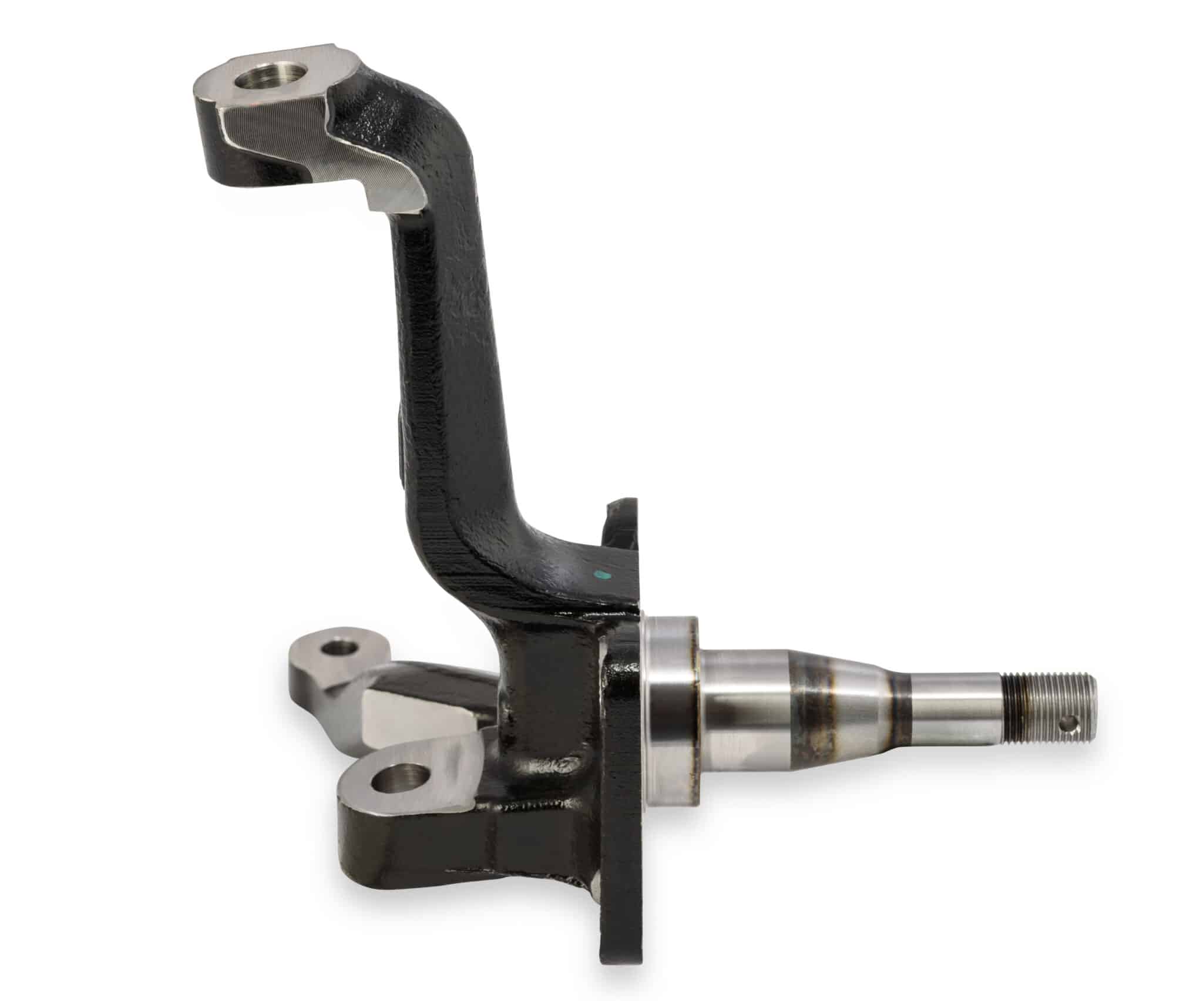

Scott Drake SDK-C5ZZ-3106-L Spindle Driver Side V8

SDK-C5ZZ-3106-L Scott Drake Spindle Driver Side V8

1964-1966 Ford Mustang 8 Cylinder Spindle Driver Side

Features:

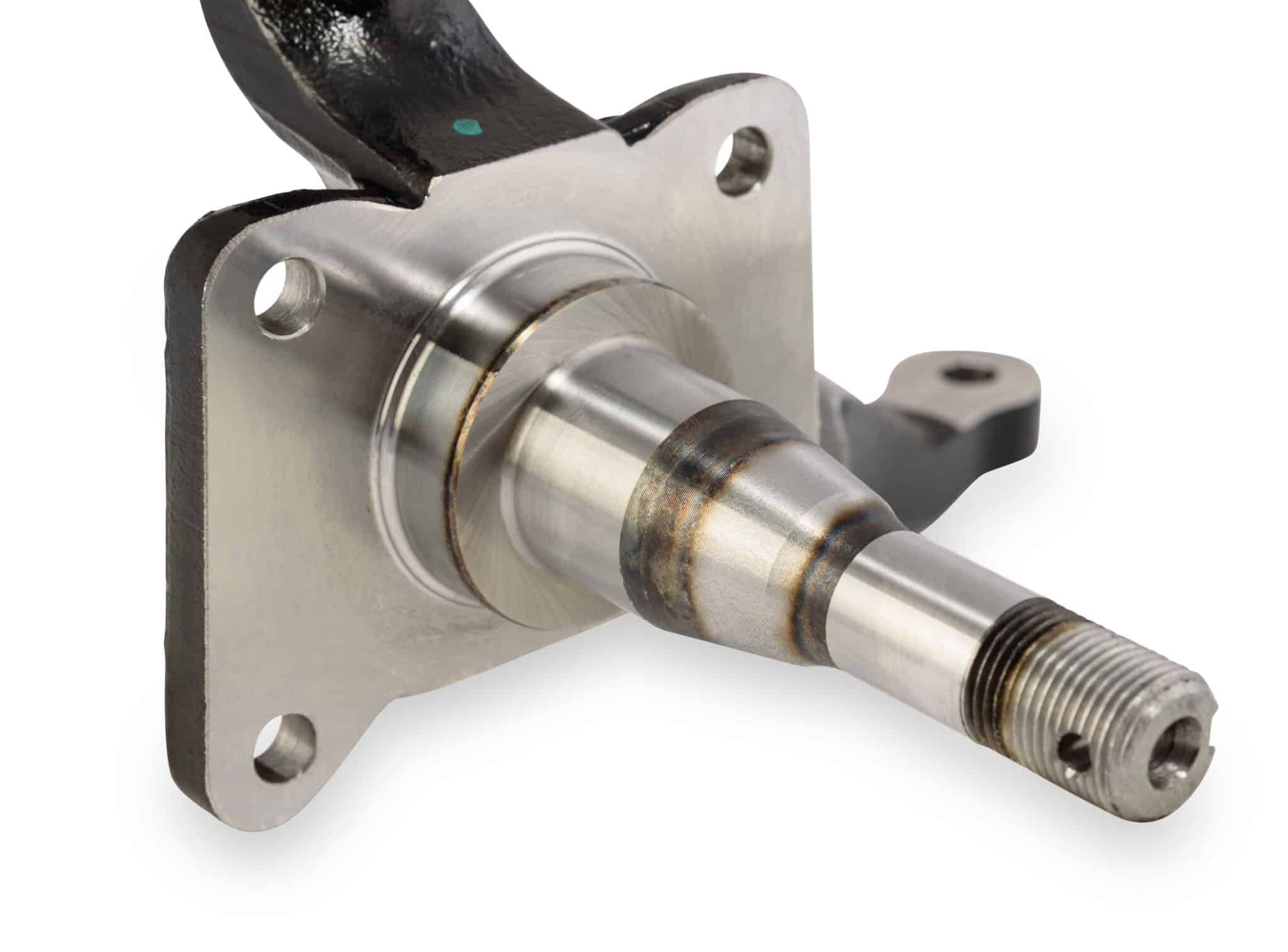

• Heat-treated snout via induction hardening
• Constructed using premium forged JIS S45C grade steel
• Able to be used with both disc and drum brakes
• Finished with black e-coat for increased durability

These spindles were obsoleted long ago by Ford and have become increasingly expensive and extremely difficult to find and now Scott Drake has the answer. Our Engineering team started with a set of used, but excellent condition, Ford originals, to create 3D scans which were then used for CAD modeling and then double-checked against original Ford blueprints. No corners were cut on this critical component – they were constructed from forged ASTM 5140 grade steel, then we applied a protective, black e-coating, and then all mounting surfaces were precision machined. We took special care to ensure bearing tolerances were identical to Ford’s. For an extra measure of safety and durability, the entire spindle is heat-treated and the bearing surface is treated with additional induction hardening. All Drake spindles are 100% Magnetic Particle Tested as well. Sold individually

Atributes:

Vehicle Applications:
