Scott Drake SDK-C5ZZ-9430-SS Tri-Y Headers, 304 Stainless Steel

SDK-C5ZZ-9430-SS Scott Drake Tri-Y Headers, 304 Stainless Steel

1964-1968 Ford Mustang.Tri-Y Headers, 304 Stainless Steel Small Block

Features:

All mounting hardware included
304 stainless steel
Mandrel-bent tubing

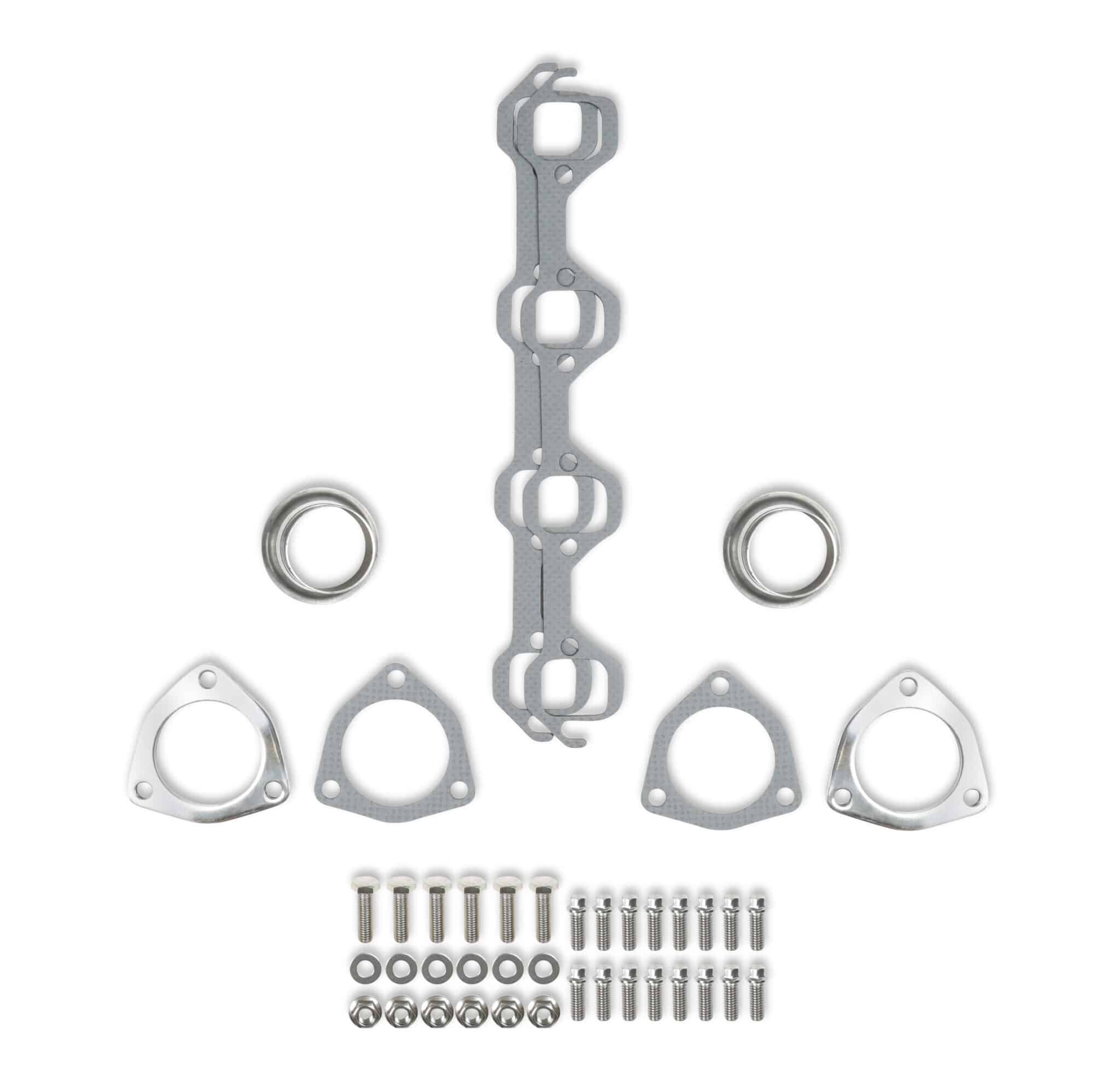

304 stainless steel, 16-gauge tubes are CNC mandrel bent, then carefully welded on our precision engineered welding jig for a perfect fit. These fit both automatic and manual transmissions with the more common 157 Tooth small bell housing, along with extra clearance for starter, mounting flange bolts can easily be accessed and they clear shock towers. Provides full articulation of steering assembly without interference. Power steering cars require drop down bracket. Cars with the larger Bellhousing for 164 Tooth Flywheel will need to dimple header and possibly remove a minimal amount of material from the bellhousing for proper clearance. Shortened collector tubes improve floor pan clearance. All Headers include extra thick, precision ground 5/16″ inch flanges to prevent warping., metal composite flange gaskets, 1 1/2″ inch primary tubes, 1 3/4″ inch secondary tubes and 2 1/2″ to 2″ inch collector/reducers. Gaskets and all necessary mounting hardware are included.

Atributes:

Tuned	No
Warning	California Proposition 65
Flange Type	3-Bolt
Flange Thickness	5/16″
Finish	Polished
Header Finish	Polished
Gasket Or Seal Included	Yes
Engine Mounts Included	No
Engine	Ford Small Block
Emission Code	3
Cross Over Pipe Included	No
Collector Port Diameter	2 1/2
Collector Diameter	2.50 inch
Category	Exhaust
Catalytic Converter Included	No
Brand	Scott Drake
Bolts Included	Yes
Bolt size	3/8-16 x 3/4
Automotive Item Grade	High Performance Part
Header Style	Tri-Y
Material	Stainless Steel
Mounting Hardware Included	Yes
Pipe Shape	Y Pipe
Primary Tube Diameter	1 3/4
Product Type	Exhaust Header
Quantity	2
Reducer Included	Yes
Reducer Outlet Diameter	2
Transmission Mounts Included	No
