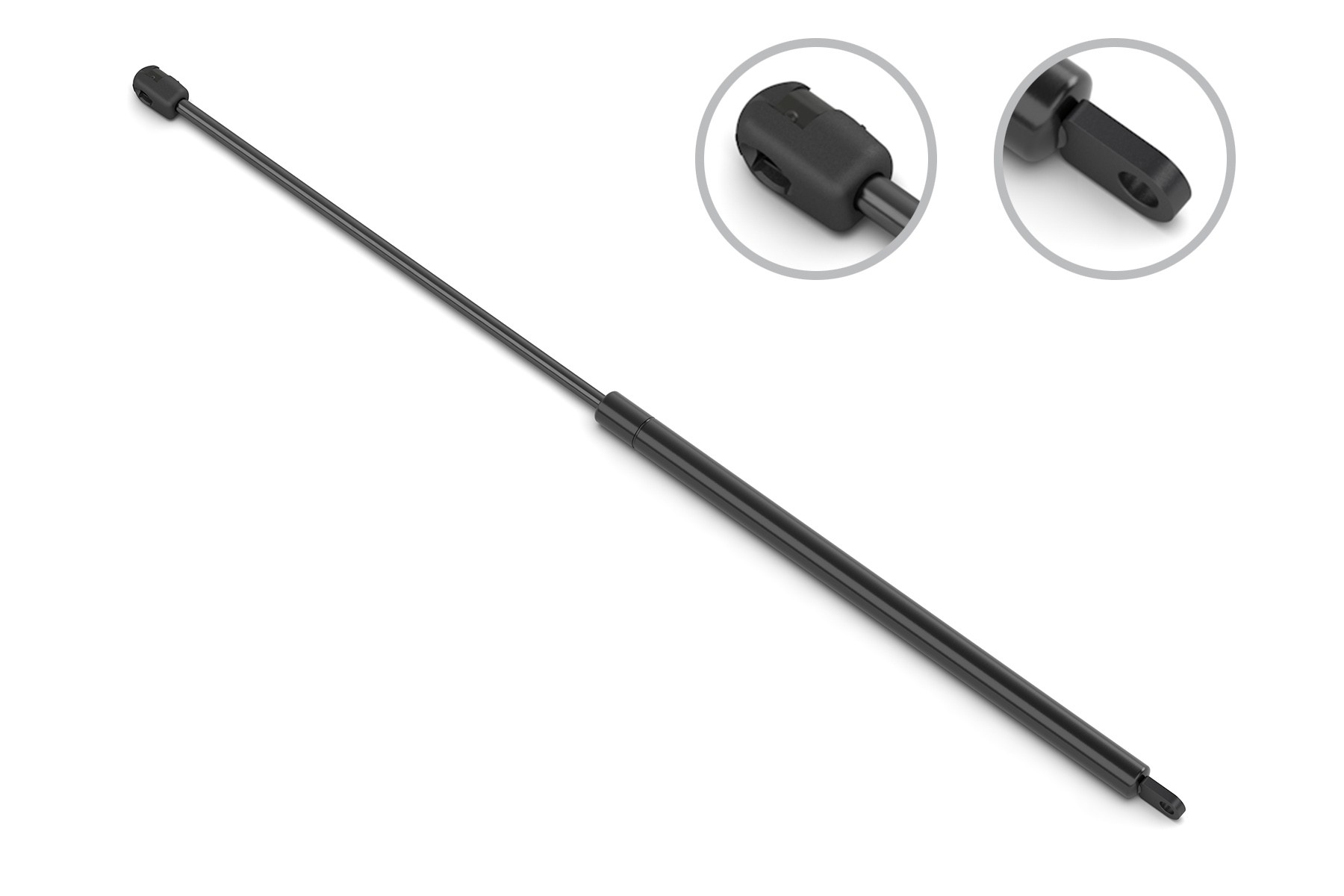

Stabilus 3B-184070 LIFTGATE LIFT SUPPORT, 27.48 INCH, 88-85 NISSAN Pack of 2

Stabilus 3B-184070 LIFTGATE LIFT SUPPORT, 27.48 INCH, 88-85 NISSAN Pack of 2

Stabilus 3B-184070 LIFTGATE LIFT SUPPORT, 27.48 INCH, 88-85 NISSAN

A hydraulically dampened gas charged lift support with an internal compression spring to release application from the latch.

Features:

Internal mechanical spring compresses in the closed position to give an added boost during initial opening.
Patented Labyrinth Piston provides clog free and smooth operation during opening and closing.
Based on the OE design to ensure proper fit form and function.
Easy to install and require no special tools.
For best results replace in pairs.
Part coatings tested to automotive standards for corrosion resistance.

Lift-O-Mat by Stabilus – Precision Control with Dynamic Damping. Lift-O-Mat by Stabilus sets a new standard in controlled motion, delivering refined performance preferred by leading automakers. This advanced lift support utilizes a longitudinal groove known as a velocity manifold pressed into the tube wall, allowing gas to flow around the piston with extension speed and damping engineered for this specific application. This superior damping technology delivers performance and precision that hydraulic systems cannot match. An integrated internal compression spring assists in lifting the application off the latch mechanism when released, providing enhanced convenience and smooth operation. The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, Lift-O-Mat offers OE performance and design across industries requiring precision control. Why Choose Lift-O-Mat with Dynamic Damping and Lift Assist? Dynamic Damping Technology: Gas flow controlled by groove geometry delivers superior motion control and precision. Integrated Lift Assist: Internal compression spring helps lift the application off the latch for improved ease of operation. OE-Preferred Solution: The advanced features specified by leading automakers for refined, consistent performance. Choose Lift-O-Mat by Stabilus for superior performance and convenient operation with every use.

Attributes:

Compressed Length	16.75 IN
Extended Length	27.48 IN
3890	Steel
3889	Nylon
Maximum Force	82 LB
End 2 Type	Blade Hole
Type	GAS
Mounting Hardware Included	Yes
Inner Shaft Diameter	0.315 IN
End1 Mount Diameter	0.394 IN
Extended Length	698 MM
Compressed Length	425.5 MM
Stroke Length	272.5 MM
End 1 Type	Ball Socket
Inner Shaft Diameter	8 MM
Mounting Hardware Included	Yes
End2 Mount Diameter	0.253 IN
Stroke Length	10.73 IN
Cylinder Outside Diameter	0.866 IN
Cylinder Outside Diameter	22 MM
End1 Mount Diameter	10.0 MM
End2 Mount Diameter	6.4 MM
Maximum Force	365 NW
