Stabilus 3B-8546CB LIFTGATE LIFT SUPPORT, 25.20 INCH, 95-89 VOLKSWAGEN Pack of 2

Stabilus 3B-8546CB LIFTGATE LIFT SUPPORT, 25.20 INCH, 95-89 VOLKSWAGEN Pack of 2

Stabilus 3B-8546CB LIFTGATE LIFT SUPPORT, 25.20 INCH, 95-89 VOLKSWAGEN

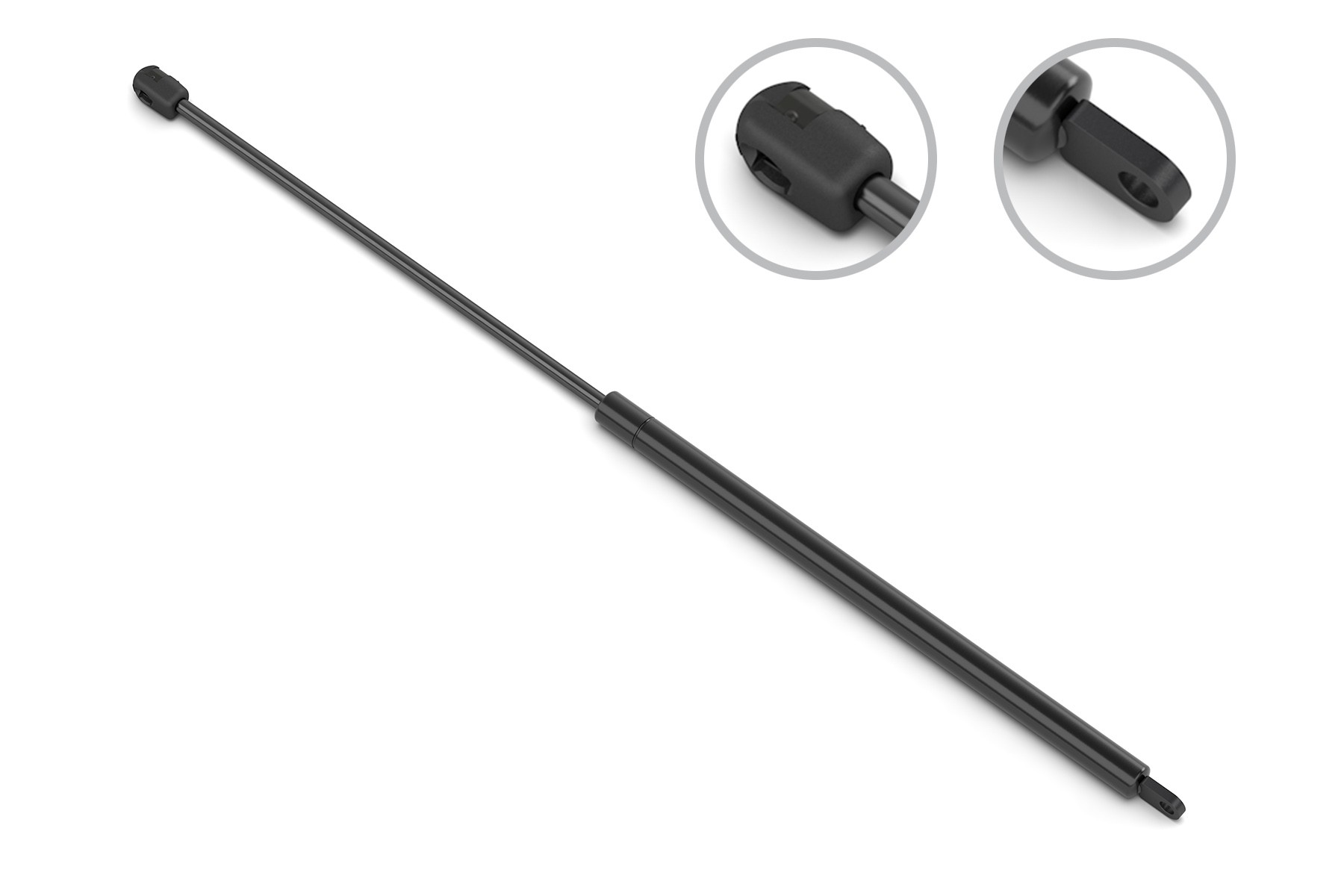

A hydraulically dampened gas charged lift support with an internal compression spring to release application from the latch.

Features:

Part coatings tested to automotive standards for corrosion resistance.
Patented Labyrinth Piston provides clog free and smooth operation during opening and closing.
For best results replace in pairs.
Easy to install and require no special tools.
Based on the OE design to ensure proper fit form and function.
Internal mechanical spring compresses in the closed position to give an added boost during initial opening.

Lift-O-Mat by Stabilus – Precision Control with Dynamic Damping. Lift-O-Mat by Stabilus sets a new standard in controlled motion, delivering refined performance preferred by leading automakers. This advanced lift support utilizes a longitudinal groove known as a velocity manifold pressed into the tube wall, allowing gas to flow around the piston with extension speed and damping engineered for this specific application. This superior damping technology delivers performance and precision that hydraulic systems cannot match. An integrated internal compression spring assists in lifting the application off the latch mechanism when released, providing enhanced convenience and smooth operation. The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, Lift-O-Mat offers OE performance and design across industries requiring precision control. Why Choose Lift-O-Mat with Dynamic Damping and Lift Assist? Dynamic Damping Technology: Gas flow controlled by groove geometry delivers superior motion control and precision. Integrated Lift Assist: Internal compression spring helps lift the application off the latch for improved ease of operation. OE-Preferred Solution: The advanced features specified by leading automakers for refined, consistent performance. Choose Lift-O-Mat by Stabilus for superior performance and convenient operation with every use.

Attributes:

Extended Length	640 MM
End 2 Type	Blade Hole
End 1 Type	Ball Socket
Mounting Hardware Included	No
Maximum Force	390 NW
3890	Steel
3889	Nylon
Type	GAS
Extended Length	25.20 IN
Compressed Length	15.77 IN
Stroke Length	9.43 IN
Inner Shaft Diameter	0.315 IN
Cylinder Outside Diameter	0.709 IN
End1 Mount Diameter	0.394 IN
End2 Mount Diameter	0.327 IN
Maximum Force	88 LB
End2 Mount Diameter	8.3 MM
End1 Mount Diameter	10.0 MM
Cylinder Outside Diameter	18 MM
Inner Shaft Diameter	8 MM
Stroke Length	239.5 MM
Compressed Length	400.5 MM
