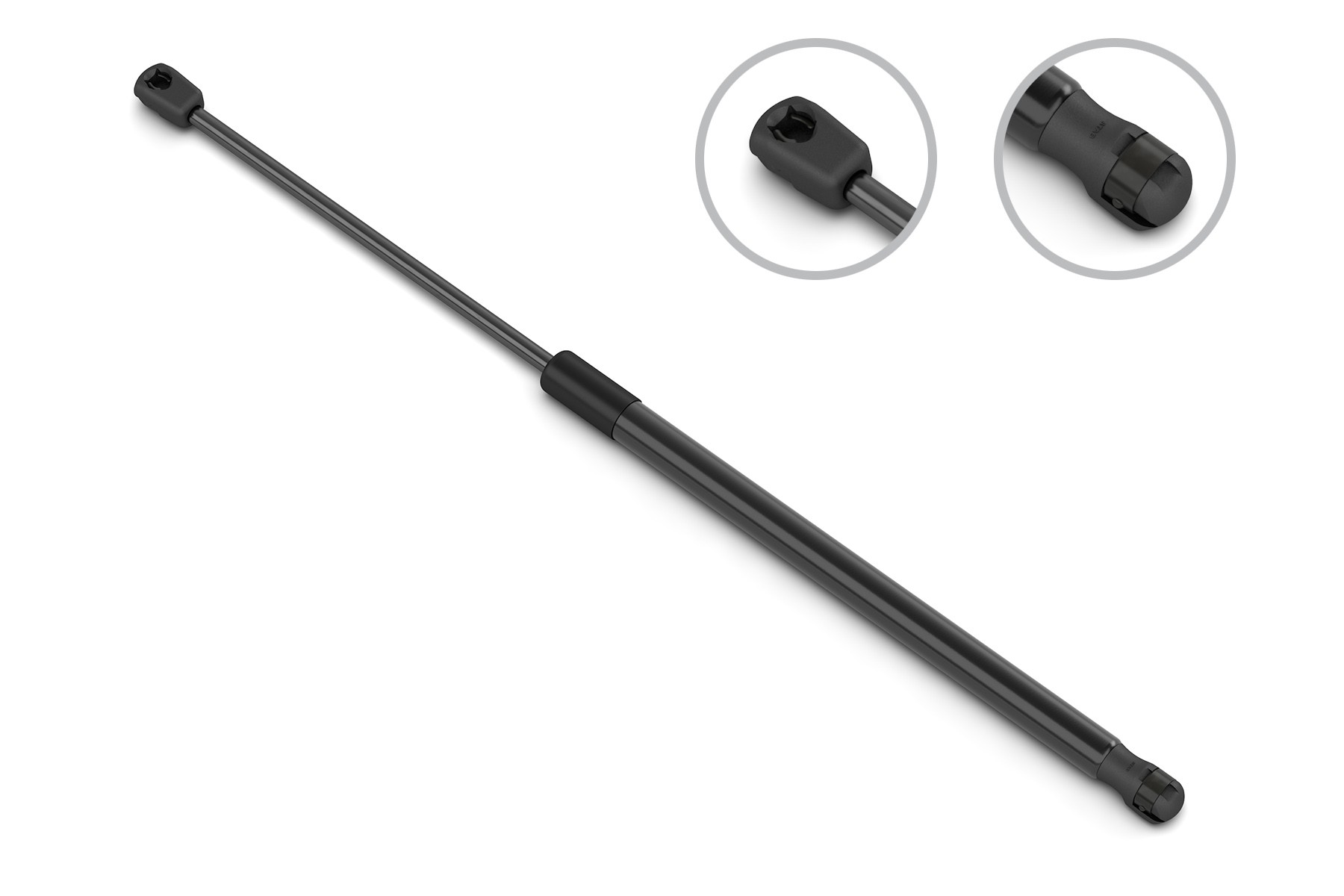

Stabilus 3B-935963 LIFTGATE LIFT SUPPORT, 22.52 INCH, 23-10 TOYOTA Pack of 2
Stabilus 3B-935963 LIFTGATE LIFT SUPPORT, 22.52 INCH, 23-10 TOYOTA
A temperature compensating gas charged lift support with dynamic speed control.
Features:
- For best results replace in pairs.
- Dynamic damping speed control creates a fluid opening motion. No bouncing or jerking.
- Internal valve adjusts holding force for cold weather.
- Part coatings tested to automotive standards for corrosion resistance.
- Easy to install and require no special tools.
- Based on the OE design to ensure proper fit form and function.
Stabilus LIFT-O-MAT with Temperature Compensating Valve (TCV) delivers OE-equivalent performance for vehicles designed with temperature compensation systems. Temperature fluctuations significantly affect lid operationin cold weather, insufficient force prevents safe opening, while excessive heat makes closing difficult. LIFT-O-MAT TCV solves this with a temperature-sensitive valve that automatically adjusts gas force based on environmental conditions: enhancing performance in cold weather while reducing force in warm conditions for easier closing. The result is consistent, reliable operation across temperature extremes. When replacing an OE TCV system, choose LIFT-O-MAT TCVthe only aftermarket solution that delivers true OE-level performance. Built with high-quality materials and engineered for durability, LIFT-O-MAT TCV ensures your customers get the same smooth, controlled motion and temperature stability as the original equipment.
Attributes:
| 3890 | Nylon |
| Extended Length | 22.52 IN |
| Compressed Length | 15.96 IN |
| Stroke Length | 6.56 IN |
| Maximum Force | 940 NW |
| End2 Mount Diameter | 10.0 MM |
| End1 Mount Diameter | 10.0 MM |
| Mounting Hardware Included | No |
| End 1 Type | Ball Socket |
| End 2 Type | Ball Socket |
| Type | GAS |
| Cylinder Outside Diameter | 22 MM |
| End1 Mount Diameter | 0.394 IN |
| Cylinder Outside Diameter | 0.866 IN |
| Inner Shaft Diameter | 0.394 IN |
| Inner Shaft Diameter | 10 MM |
| Stroke Length | 166.5 MM |
| Compressed Length | 405.5 MM |
| Extended Length | 572 MM |
| Maximum Force | 211 LB |
| End2 Mount Diameter | 0.394 IN |
| 3889 | Nylon |
Vehicle Applications:
| Make | Model | Years |
| Toyota | 4Runner | 2010 to 2024 |
