Stabilus 3B-9576BG HOOD LIFT SUPPORT, 24.49 INCH, 02-96 LAND ROVER Pack of 2

Stabilus 3B-9576BG HOOD LIFT SUPPORT, 24.49 INCH, 02-96 LAND ROVER Pack of 2

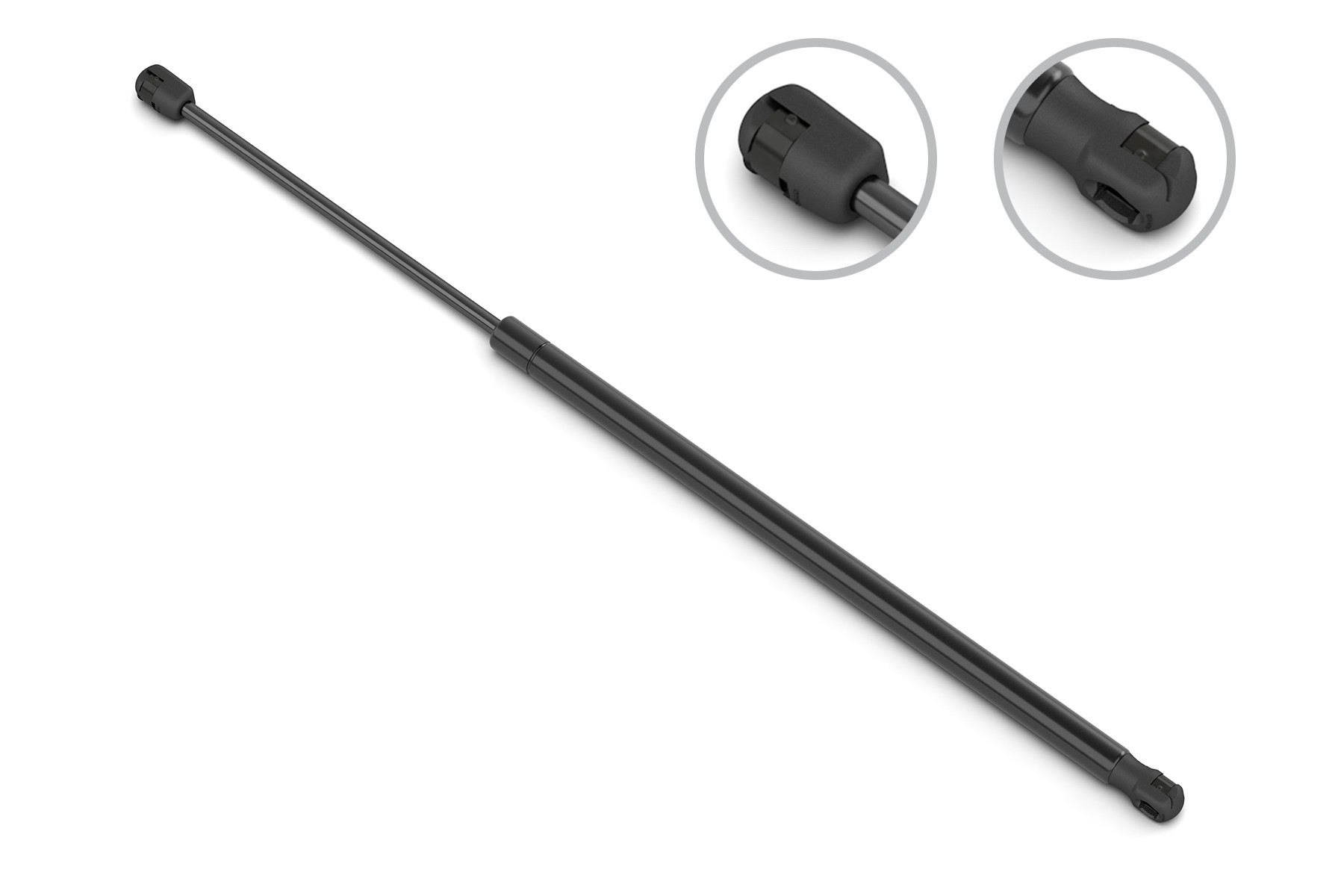

Stabilus 3B-9576BG HOOD LIFT SUPPORT, 24.49 INCH, 02-96 LAND ROVER

A hydraulically dampened gas charged lift support.

Features:

Part coatings tested to automotive standards for corrosion resistance.
For best results replace in pairs.
Clog free design prevents binding due to contamination.
Patented Labyrinth Piston provides clog free and smooth operation during opening and closing.
Based on the OE design to ensure proper fit form and function.
Easy to install and require no special tools.

Lift-O-Mat by Stabilus – Precision Motion with Controlled Damping. Lift-O-Mat with hydraulic damping provides proven, reliable performance using an innovative oil channeling system and patented labyrinth piston design. Finely tuned for each application with customized oil viscosities and piston configurations, this proven damping technology delivers the smooth, controlled motion engineered for this application. Engineered with high-quality materials and a precision seal-guide system, Lift-O-Mat withstands demanding applications across automotive, furniture, and ergonomic equipment industries with durability and reliable operation. Why Choose Lift-O-Mat with Hydraulic Damping? Proven Damping Technology: Custom-tuned oil viscosities and labyrinth piston designs ensure consistent motion control. High-Quality Build: High-grade materials and proprietary seal-guide system deliver performance and durability. Application-Specific Engineering: Every Lift-O-Mat is designed to meet exact application requirements. Choose Lift-O-Mat by Stabilus for hydraulic damping that delivers refined, controlled motion you can trust.

Attributes:

3890	Nylon
Type	GAS
End 2 Type	Ball Socket
End 1 Type	Ball Socket
Stroke Length	236.5 MM
Compressed Length	385.5 MM
Extended Length	622 MM
Maximum Force	63 LB
End2 Mount Diameter	0.394 IN
End1 Mount Diameter	0.394 IN
Cylinder Outside Diameter	0.709 IN
Inner Shaft Diameter	0.315 IN
Stroke Length	9.31 IN
End2 Mount Diameter	10.0 MM
Maximum Force	280 NW
3889	Nylon
Inner Shaft Diameter	8 MM
Cylinder Outside Diameter	18 MM
End1 Mount Diameter	10.0 MM
Mounting Hardware Included	No
Compressed Length	15.18 IN
Extended Length	24.49 IN
