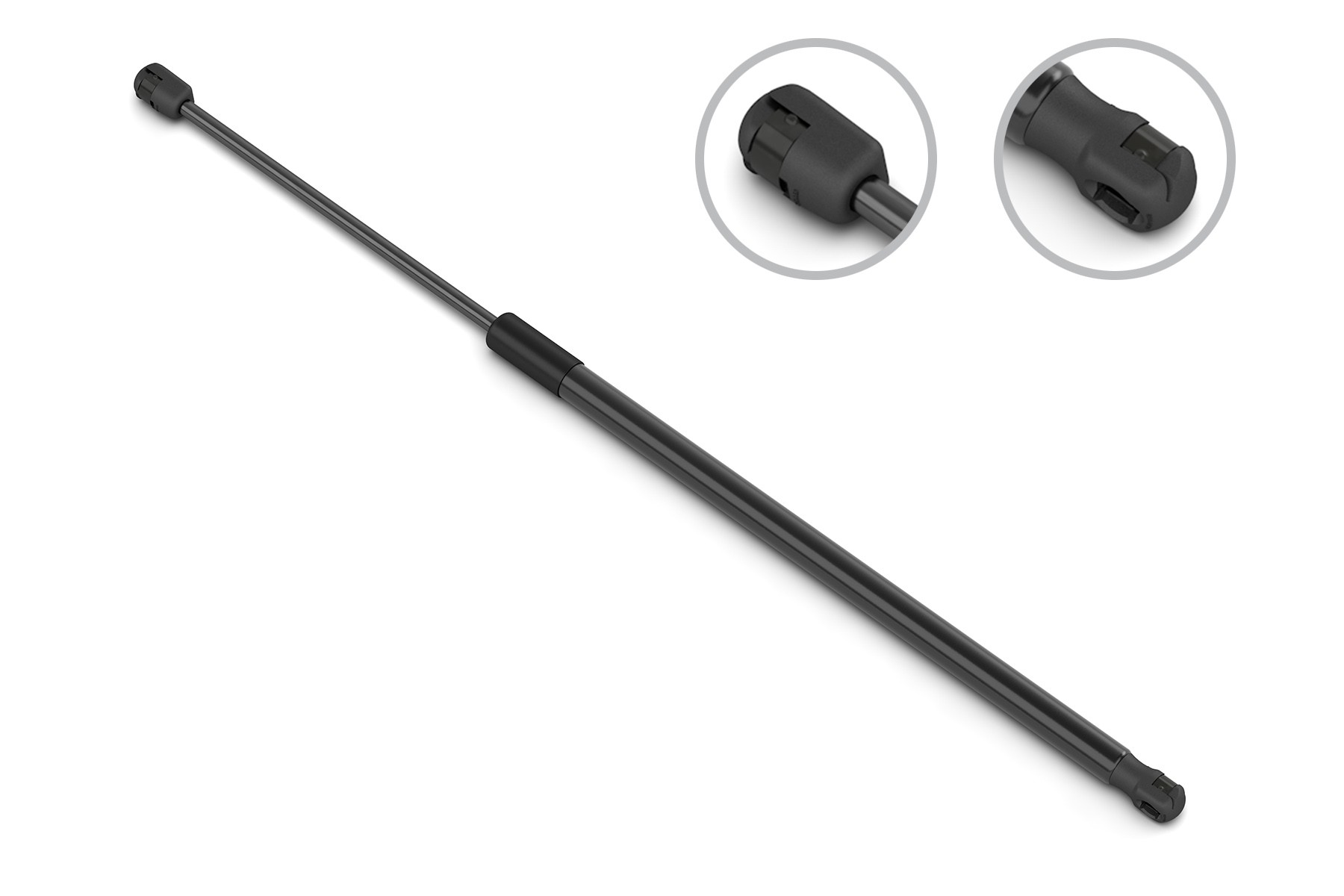

Stabilus 3B-958429 LIFTGATE LIFT SUPPORT, 25.35 INCH, 15-11 CHEVROLET Pack of 2

£74.95 Inc VAT

Availability: 1 in stock

Stabilus 3B-958429 LIFTGATE LIFT SUPPORT, 25.35 INCH, 15-11 CHEVROLET Pack of 2

Stabilus 3B-958429 LIFTGATE LIFT SUPPORT, 25.35 INCH, 15-11 CHEVROLET

A temperature compensating gas charged lift support with dynamic speed control.

Features:

  • Based on the OE design to ensure proper fit form and function.
  • Part coatings tested to automotive standards for corrosion resistance.
  • Easy to install and require no special tools.
  • For best results replace in pairs.
  • Internal valve adjusts holding force for cold weather.
  • Dynamic damping speed control creates a fluid opening motion. No bouncing or jerking.



Stabilus LIFT-O-MAT with Temperature Compensating Valve (TCV) delivers OE-equivalent performance for vehicles designed with temperature compensation systems. Temperature fluctuations significantly affect lid operation—in cold weather, insufficient force prevents safe opening, while excessive heat makes closing difficult. LIFT-O-MAT TCV solves this with a temperature-sensitive valve that automatically adjusts gas force based on environmental conditions: enhancing performance in cold weather while reducing force in warm conditions for easier closing. The result is consistent, reliable operation across temperature extremes. When replacing an OE TCV system, choose LIFT-O-MAT TCV—the only aftermarket solution that delivers true OE-level performance. Built with high-quality materials and engineered for durability, LIFT-O-MAT TCV ensures your customers get the same smooth, controlled motion and temperature stability as the original equipment.



Attributes:

Cylinder Outside Diameter 22 MM
3890 Nylon
Extended Length 644 MM
Type GAS
End 2 Type Ball Socket
End 1 Type Ball Socket
Extended Length 25.35 IN
Cylinder Outside Diameter 0.866 IN
Mounting Hardware Included No
End1 Mount Diameter 0.394 IN
Maximum Force 1010 NW
End2 Mount Diameter 0.394 IN
Maximum Force 227 LB
Stroke Length 5.13 IN
Inner Shaft Diameter 0.394 IN
Compressed Length 20.22 IN
3889 Nylon
Stroke Length 130.5 MM
Compressed Length 513.5 MM
End1 Mount Diameter 10.0 MM
End2 Mount Diameter 10.0 MM
Inner Shaft Diameter 10 MM



Vehicle Applications:

Make Model Years
Chevrolet Volt 2011 to 2015
Weight 0.5 kg
