Stabilus 3B-981393 HOOD LIFT SUPPORT, 23.84 INCH, 24-20 GMC Pack of 2

Stabilus 3B-981393 HOOD LIFT SUPPORT, 23.84 INCH, 24-20 GMC Pack of 2

Stabilus 3B-981393 HOOD LIFT SUPPORT, 23.84 INCH, 24-20 GMC

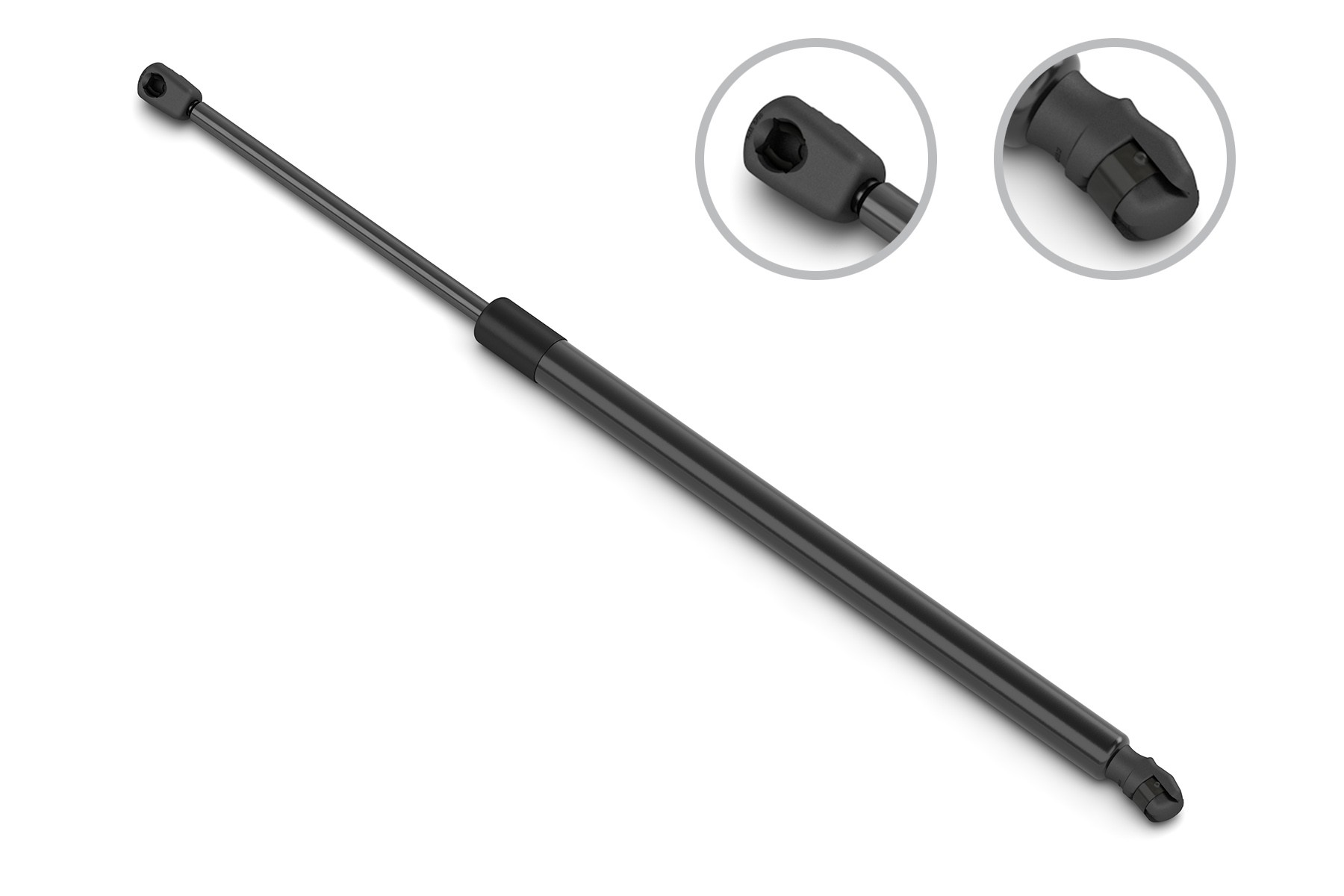

A gas charged lift support with dynamic speed control.

Features:

Based on the OE design to ensure proper fit form and function.
Dynamic damping speed control creates a fluid opening motion.
No bouncing or jerking during cycling.
Part coatings tested to automotive standards for corrosion resistance.
Easy to install and require no special tools.
For best results replace in pairs.

Lift-O-Mat by Stabilus – Precision Control with Dynamic Damping. Lift-O-Mat with dynamic damping sets a new standard in controlled motion, delivering refined, adaptable performance preferred by leading automakers. This advanced lift support utilizes a longitudinal groove known as a velocity manifold pressed into the tube wall, allowing gas to flow around the piston with extension speed and damping engineered for this specific application. This superior damping technology delivers performance and precision that hydraulic systems cannot match. The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, Lift-O-Mat offers OE performance and design across industries requiring precision control. Why Choose Lift-O-Mat with Dynamic Damping? Dynamic Damping Technology: Continuous gas flow controlled by custom groove geometry delivers superior motion control and precision. OE-Preferred Solution: The damping technology specified by leading automakers for refined, consistent performance. Superior Performance: Engineered to deliver performance and precision beyond what hydraulic damping systems can achieve. Choose Lift-O-Mat by Stabilus for a dynamic damping solution that delivers superior, engineered performance and a smooth, gentle stop every time.

Attributes:

End2 Mount Diameter	0.394 IN
Mounting Hardware Included	No
End 1 Type	Ball Socket
Compressed Length	432.5 MM
Stroke Length	173 MM
Inner Shaft Diameter	8 MM
Maximum Force	128 LB
Cylinder Outside Diameter	19 MM
End 2 Type	Ball Socket
Stroke Length	6.81 IN
Inner Shaft Diameter	0.315 IN
Cylinder Outside Diameter	0.748 IN
End1 Mount Diameter	0.394 IN
3889	Nylon
Type	GAS
End1 Mount Diameter	10 MM
3890	Nylon
Compressed Length	17.03 IN
Maximum Force	570 NW
End2 Mount Diameter	10 MM
Extended Length	23.84 IN
Extended Length	605.5 MM
