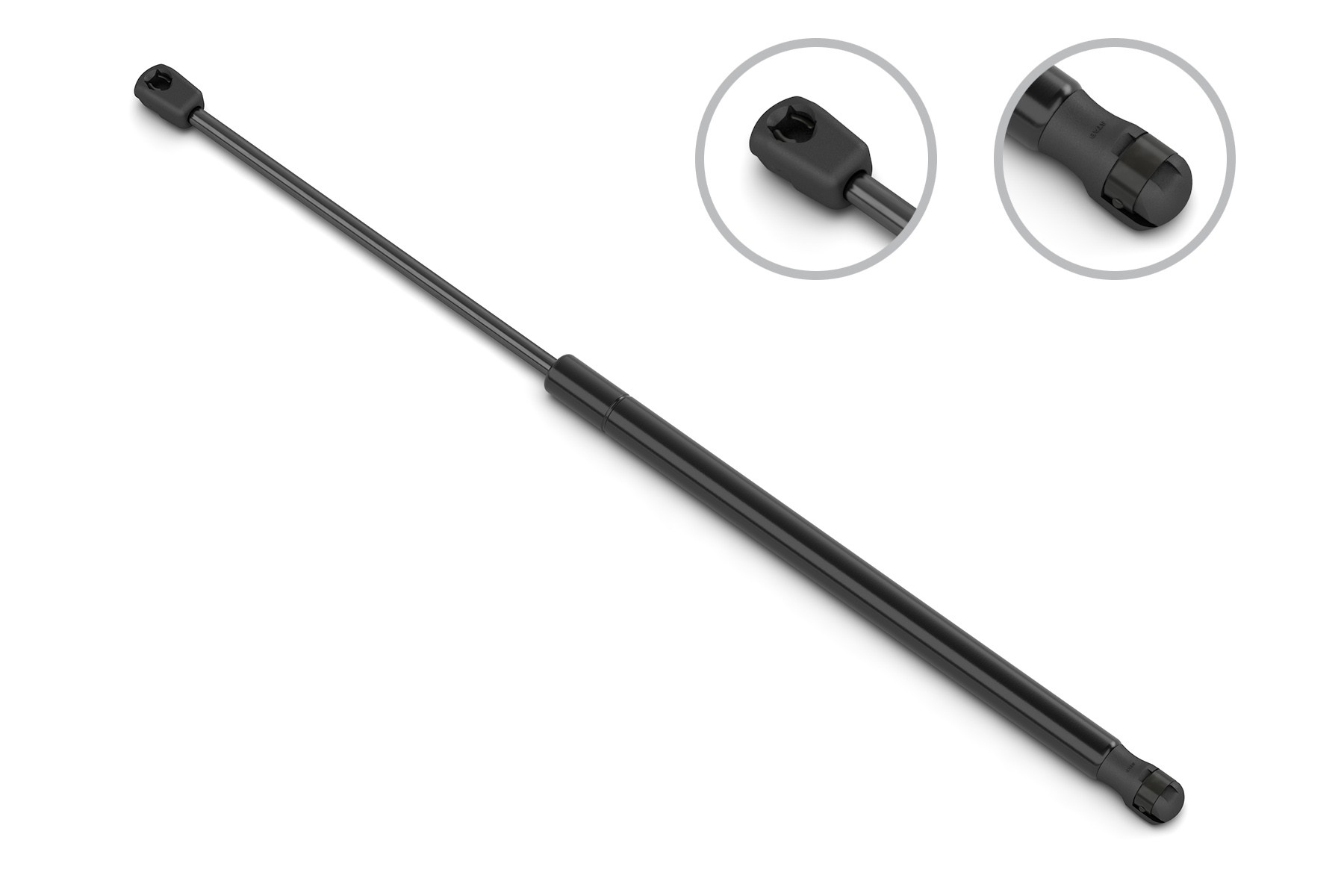

Stabilus 4B-006941 LIFTGATE LIFT SUPPORT, 20.28 INCH, 09-05 HYUNDAI Pack of 2

Stabilus 4B-006941 LIFTGATE LIFT SUPPORT, 20.28 INCH, 09-05 HYUNDAI Pack of 2

Stabilus 4B-006941 LIFTGATE LIFT SUPPORT, 20.28 INCH, 09-05 HYUNDAI

A gas charged lift support with dynamic speed control and an internal compression spring to release the application from the latch.

Features:

Based on the OE design to ensure proper fit form and function.
Part coatings tested to automotive standards for corrosion resistance.
Easy to install and require no special tools.
Dynamic damping speed control creates a fluid opening motion. No bouncing or jerking.
For best results replace in pairs.
Internal mechanical spring compresses in the closed position to give an added boost during initial opening.

Lift-O-Mat by Stabilus – Precision Control with Dynamic Damping. Lift-O-Mat by Stabilus sets a new standard in controlled motion, delivering refined performance preferred by leading automakers. This advanced lift support utilizes a longitudinal groove known as a velocity manifold pressed into the tube wall, allowing gas to flow around the piston with extension speed and damping engineered for this specific application. This superior damping technology delivers performance and precision that hydraulic systems cannot match. An integrated internal compression spring assists in lifting the application off the latch mechanism when released, providing enhanced convenience and smooth operation. The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, Lift-O-Mat offers OE performance and design across industries requiring precision control. Why Choose Lift-O-Mat with Dynamic Damping and Lift Assist? Dynamic Damping Technology: Gas flow controlled by groove geometry delivers superior motion control and precision. Integrated Lift Assist: Internal compression spring helps lift the application off the latch for improved ease of operation. OE-Preferred Solution: The advanced features specified by leading automakers for refined, consistent performance. Choose Lift-O-Mat by Stabilus for superior performance and convenient operation with every use.

Attributes:

Maximum Force	585 NW
Cylinder Outside Diameter	0.748 IN
Type	GAS
Compressed Length	12.72 IN
End 1 Type	Ball Socket
End 2 Type	Ball Socket
Mounting Hardware Included	No
3890	Nylon
Extended Length	20.28 IN
End2 Mount Diameter	0.394 IN
Maximum Force	132 LB
Extended Length	515 MM
Compressed Length	323 MM
Stroke Length	192 MM
Inner Shaft Diameter	8 MM
End1 Mount Diameter	10.0 MM
End1 Mount Diameter	0.394 IN
3889	Nylon
Stroke Length	7.56 IN
Inner Shaft Diameter	0.315 IN
Cylinder Outside Diameter	19 MM
End2 Mount Diameter	10.0 MM
