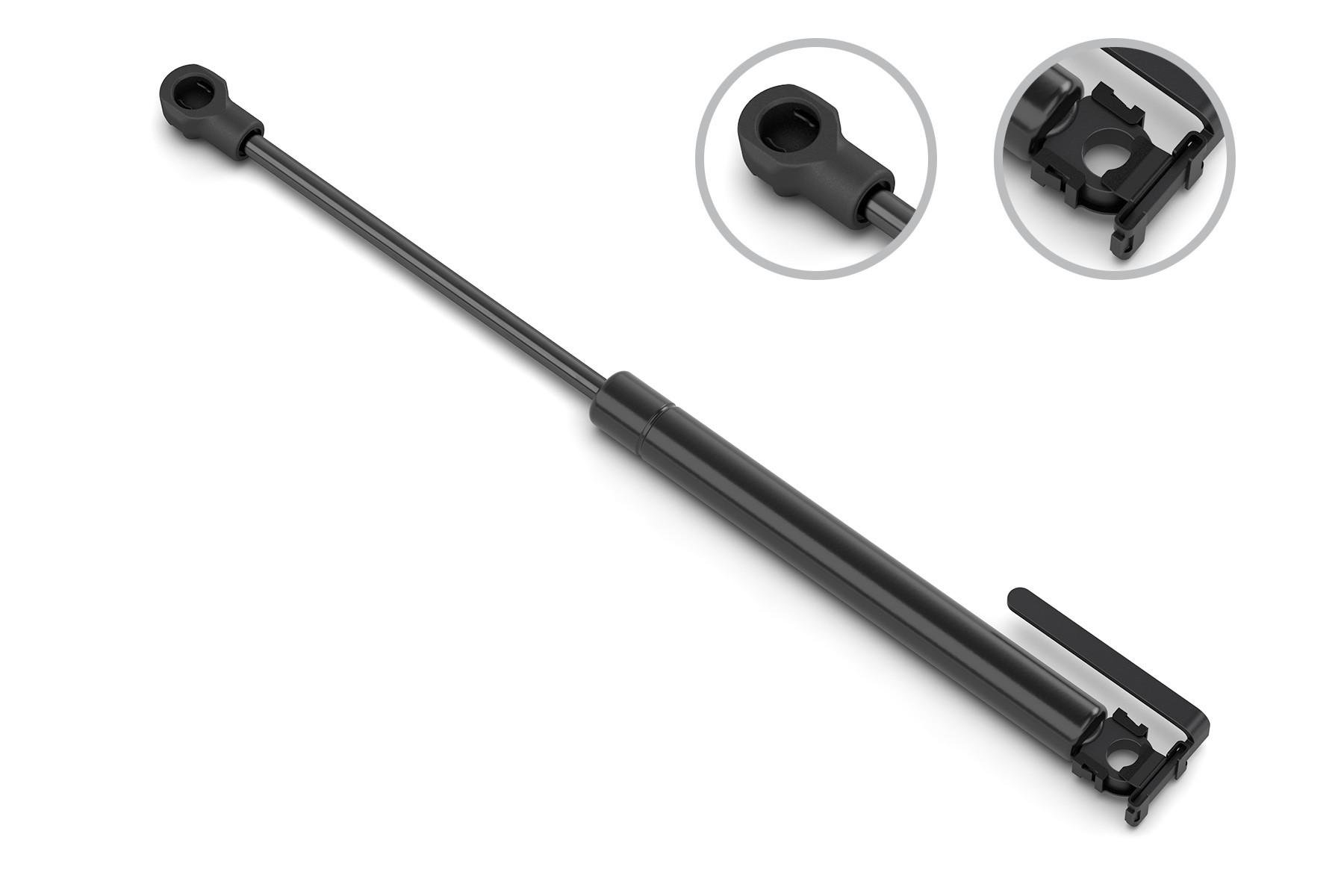

Stabilus 5B-8056LV CONVERTIBLE TOP COVER LIFT SUPPORT, 11.26 INCH, 99-92 BMW Pack of 2

Stabilus 5B-8056LV CONVERTIBLE TOP COVER LIFT SUPPORT, 11.26 INCH, 99-92 BMW Pack of 2

Stabilus 5B-8056LV CONVERTIBLE TOP COVER LIFT SUPPORT, 11.26 INCH, 99-92 BMW

A hydraulically dampened gas charged lift support.

Features:

Part coatings tested to automotive standards for corrosion resistance.
Patented Labyrinth Piston provides clog free and smooth operation during opening and closing.
Clog free design prevents binding due to contamination.
Easy to install and require no special tools.
Based on the OE design to ensure proper fit form and function.
For best results replace in pairs.

Lift-O-Mat by Stabilus – Precision Motion with Controlled Damping. Lift-O-Mat with hydraulic damping provides proven, reliable performance using an innovative oil channeling system and patented labyrinth piston design. Finely tuned for each application with customized oil viscosities and piston configurations, this proven damping technology delivers the smooth, controlled motion engineered for this application. Engineered with high-quality materials and a precision seal-guide system, Lift-O-Mat withstands demanding applications across automotive, furniture, and ergonomic equipment industries with durability and reliable operation. Why Choose Lift-O-Mat with Hydraulic Damping? Proven Damping Technology: Custom-tuned oil viscosities and labyrinth piston designs ensure consistent motion control. High-Quality Build: High-grade materials and proprietary seal-guide system deliver performance and durability. Application-Specific Engineering: Every Lift-O-Mat is designed to meet exact application requirements. Choose Lift-O-Mat by Stabilus for hydraulic damping that delivers refined, controlled motion you can trust.

Attributes:

Maximum Force	31 LB
Compressed Length	173.5 MM
Extended Length	286 MM
Stroke Length	112.5 MM
Inner Shaft Diameter	6 MM
Cylinder Outside Diameter	15 MM
End1 Mount Diameter	10.0 MM
End2 Mount Diameter	8.3 MM
Maximum Force	140 NW
End 1 Type	Ball Socket
End 2 Type	Blade w/Retainer
Type	GAS
End2 Mount Diameter	0.327 IN
End1 Mount Diameter	0.394 IN
Cylinder Outside Diameter	0.591 IN
Inner Shaft Diameter	0.236 IN
Stroke Length	4.43 IN
Mounting Hardware Included	No
Compressed Length	6.83 IN
3889	Nylon
Extended Length	11.26 IN
3890	Steel
