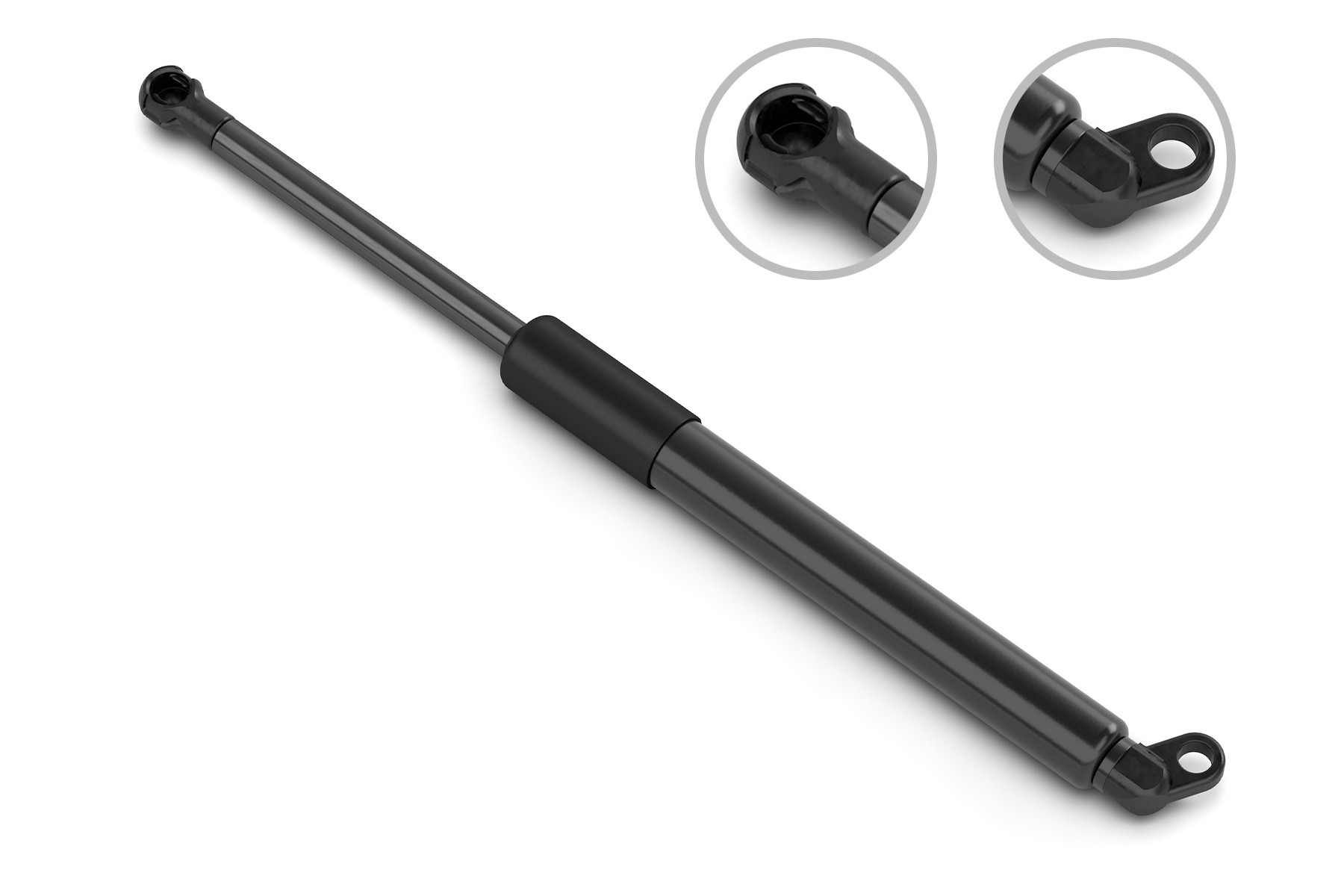

Stabilus 5B-9283HM TRUNK LID LIFT SUPPORT, 13.66 INCH, 06-79 BMW Pack of 2

Stabilus 5B-9283HM TRUNK LID LIFT SUPPORT, 13.66 INCH, 06-79 BMW Pack of 2

Stabilus 5B-9283HM TRUNK LID LIFT SUPPORT, 13.66 INCH, 06-79 BMW

A gas charged lift support with dynamic speed control and an internal compression spring to release the application from the latch.

Features:

For best results replace in pairs.
Based on the OE design to ensure proper fit form and function.
Easy to install and require no special tools.
Part coatings tested to automotive standards for corrosion resistance.
Internal mechanical spring compresses in the closed position to give an added boost during initial opening.
Dynamic damping speed control creates a fluid opening motion. No bouncing or jerking.

Lift-O-Mat by Stabilus – Precision Control with Dynamic Damping. Lift-O-Mat by Stabilus sets a new standard in controlled motion, delivering refined performance preferred by leading automakers. This advanced lift support utilizes a longitudinal groove known as a velocity manifold pressed into the tube wall, allowing gas to flow around the piston with extension speed and damping engineered for this specific application. This superior damping technology delivers performance and precision that hydraulic systems cannot match. An integrated internal compression spring assists in lifting the application off the latch mechanism when released, providing enhanced convenience and smooth operation. The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, Lift-O-Mat offers OE performance and design across industries requiring precision control. Why Choose Lift-O-Mat with Dynamic Damping and Lift Assist? Dynamic Damping Technology: Gas flow controlled by groove geometry delivers superior motion control and precision. Integrated Lift Assist: Internal compression spring helps lift the application off the latch for improved ease of operation. OE-Preferred Solution: The advanced features specified by leading automakers for refined, consistent performance. Choose Lift-O-Mat by Stabilus for superior performance and convenient operation with every use.

Attributes:

Type	GAS
Mounting Hardware Included	No
End 1 Type	Ball Socket
End 2 Type	Blade Hole
3890	Steel
3889	Steel
Maximum Force	540 NW
End2 Mount Diameter	8.1 MM
End1 Mount Diameter	10.0 MM
Cylinder Outside Diameter	19 MM
Inner Shaft Diameter	10 MM
Stroke Length	104 MM
Compressed Length	243 MM
Extended Length	347 MM
Maximum Force	121 LB
End2 Mount Diameter	0.319 IN
End1 Mount Diameter	0.394 IN
Cylinder Outside Diameter	0.748 IN
Inner Shaft Diameter	0.394 IN
Stroke Length	4.09 IN
Compressed Length	9.57 IN
Extended Length	13.66 IN
