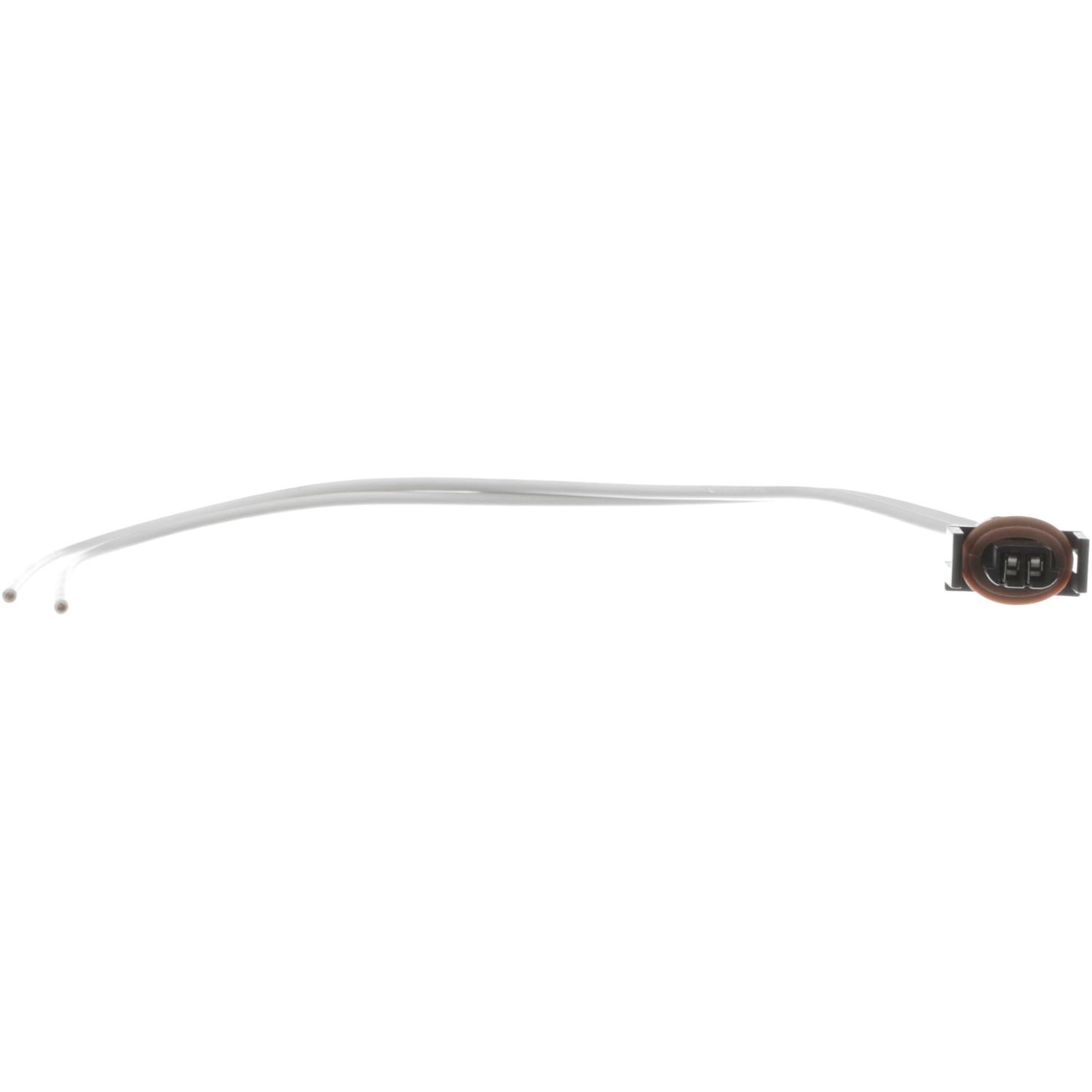

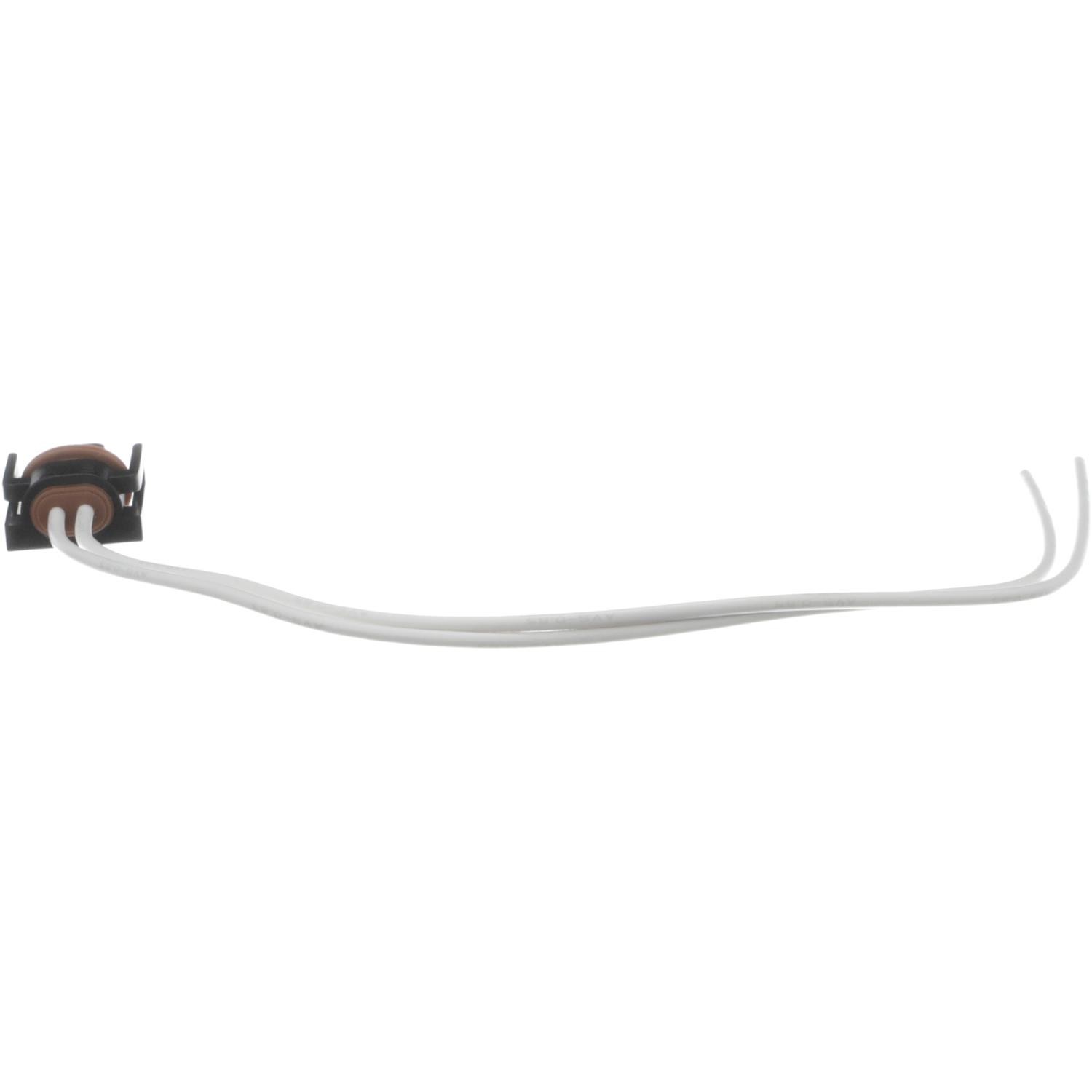

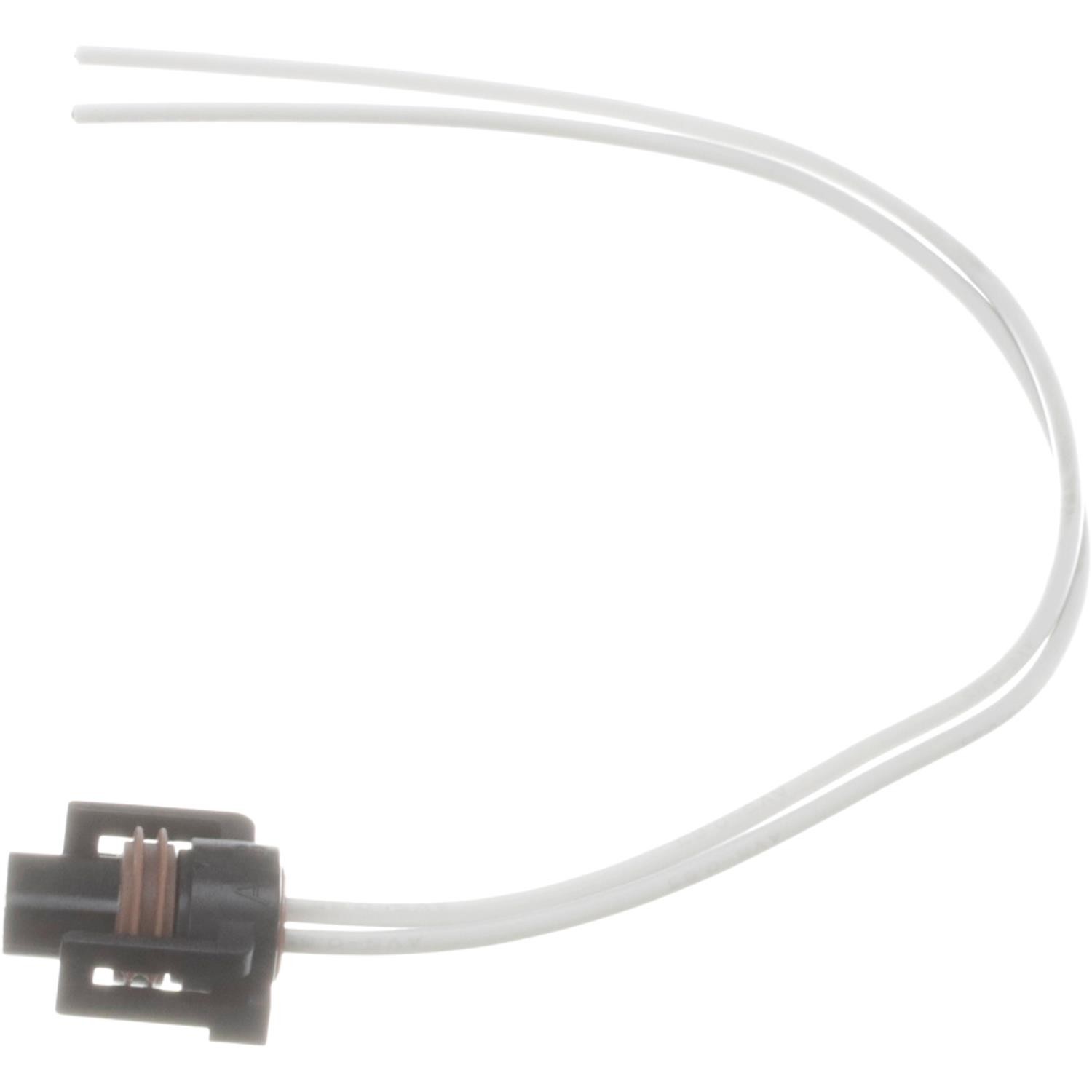

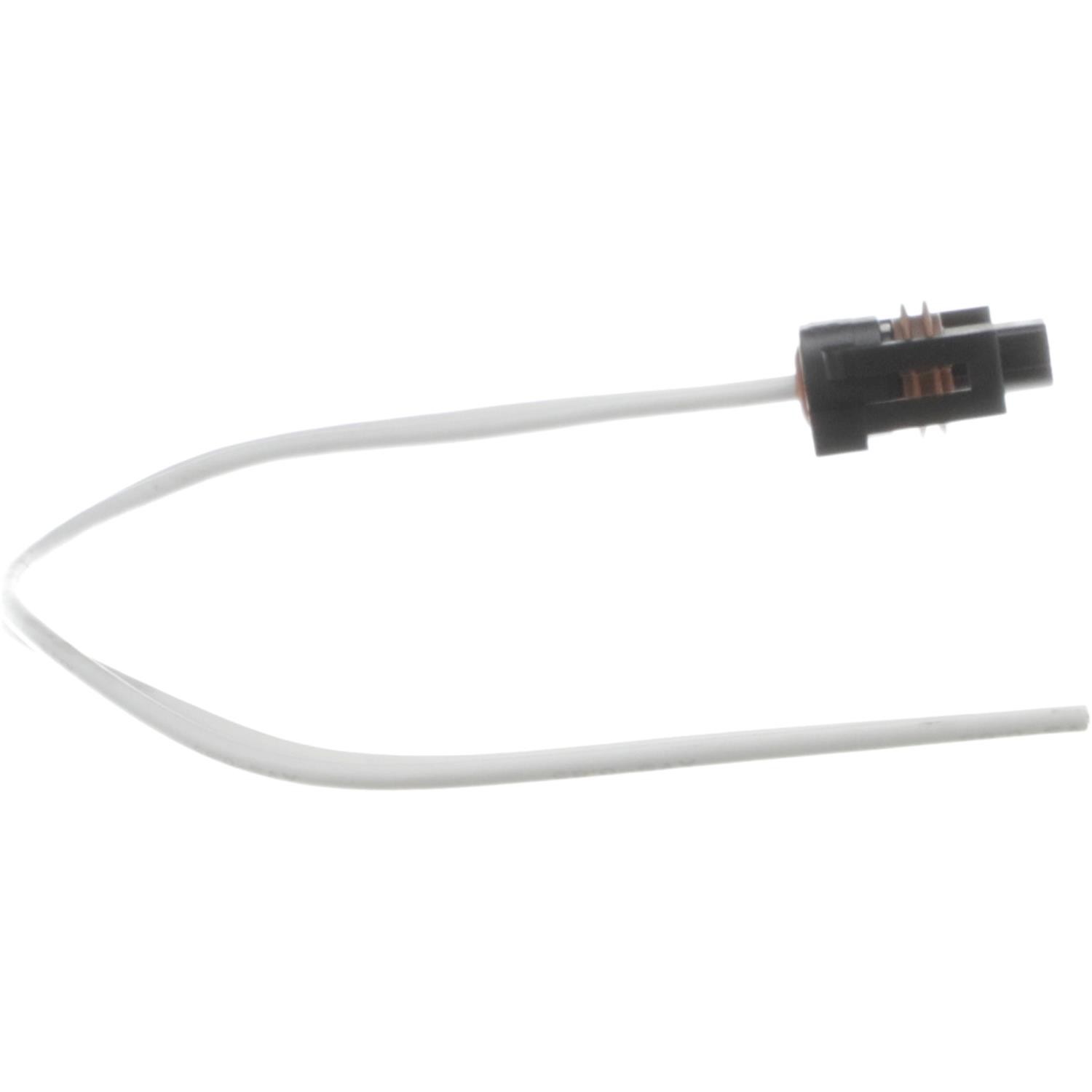

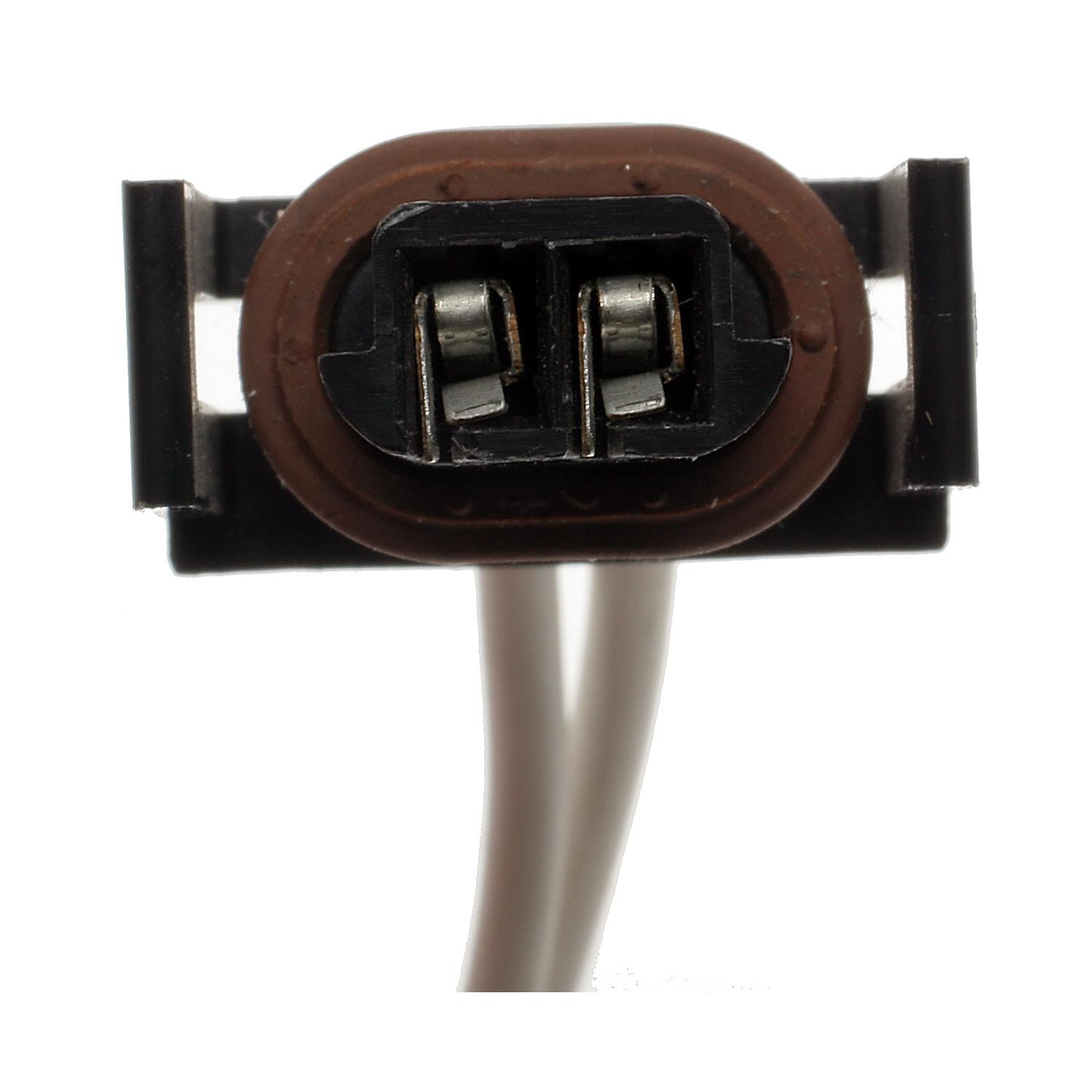

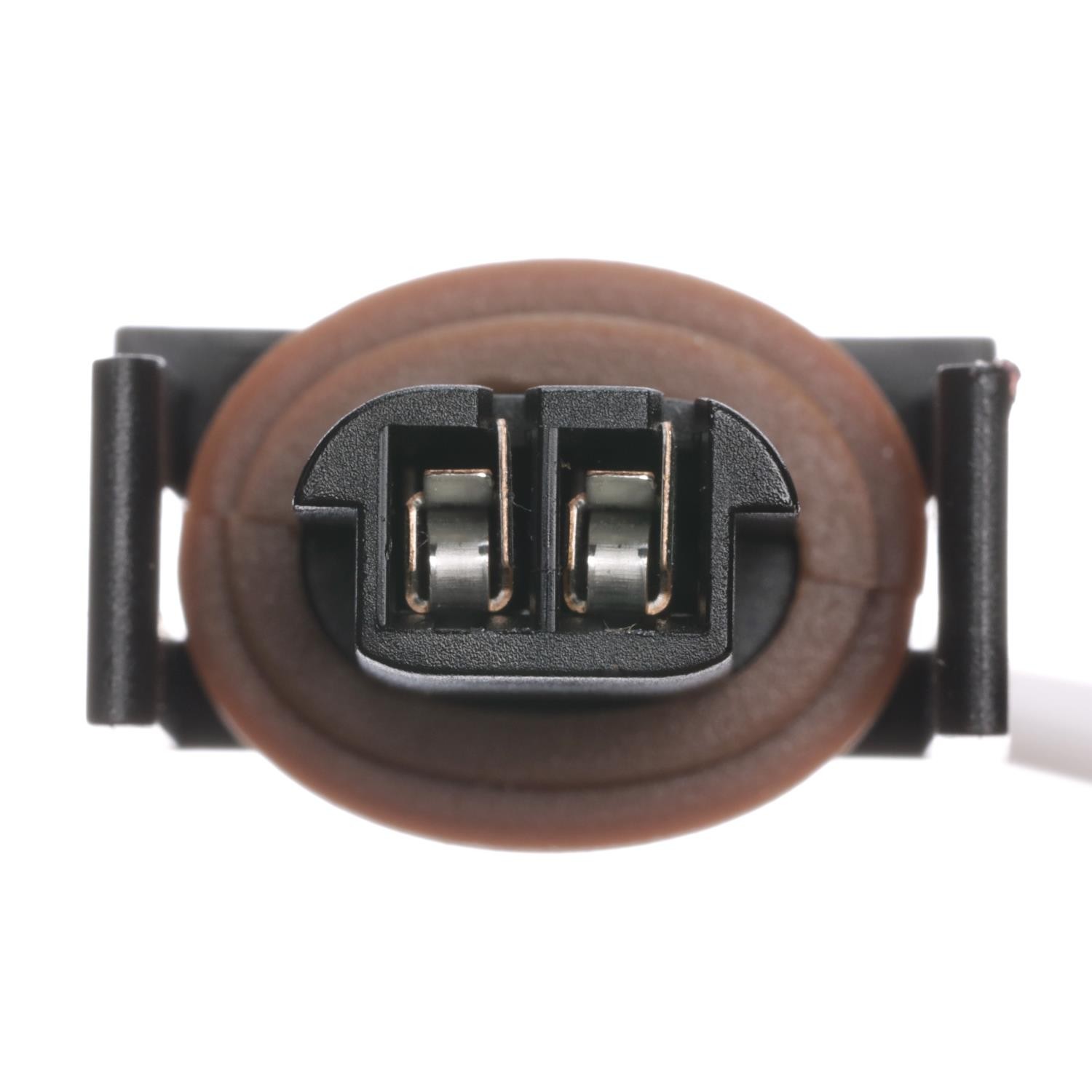

Standard HP4235 Fuel Injector Connector
Features:
- Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
- Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
- The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
- Offering thousands of high-quality pigtails and sockets for nearly every electrical job.
- The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
- Offering thousands of high-quality pigtails and sockets for nearly every electrical job.
- All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
- The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
- The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
- All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
Atributes:
| Gender | Male |
| Length – Inches | 1 |
| Material | Plastic |
| Number Of Splice Connectors Includ | 0 |
| Number of wires | 2 |
| Splice Connectors Included | No |
| Terminal Gender | Female |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Weatherproof Sealed | Yes |
| Wire Gauge (ga) | 18 |
| Wire Quantity | 2 |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 10 |
| Wiring Harness Length (mm) | 254 |
| Dust Shield Included | No |
| Harness Length (mm.) | 250 |
| Housing Length (in) | 1 |
| 2120 | Yes |
| Attachment Method | Push On |
| Bend Angle (Deg.) | 0 |
| Connector Quantity | 1 |
| Contact Terminal Material | Metal |
| Gauge | 18 |
| Harness Length – cm | 25 |
| Harness Length – inches | 10″ |
| Connector Shape | Oval |
Vehicle Applications:
| Make | Model | Years |
| to | ||
| Buick | Century | 1987 to 1996 |
| Buick | Electra | 1982 to 1983 |
| Buick | Estate Wagon | 1982 to 1983 |
| Buick | LeSabre | 1982 to 1985 |
| Buick | Regal | 1982 to 1983 |
| Buick | Riviera | 1982 to 1983 |
| Buick | Skyhawk | 1987 to 1989 |
| Buick | Skylark | 1987 to 1991 |
| Buick | Somerset | 1987 to 1987 |
| Cadillac | Cimarron | 1982 to 1982 |
| Chevrolet | Astro | 1987 to 1990 |
| Chevrolet | Beretta | 1987 to 1996 |
| Chevrolet | Cavalier | 1987 to 1997 |
| Chevrolet | Celebrity | 1987 to 1990 |
| Chevrolet | Chevy | 1995 to 2002 |
| Chevrolet | Cobalt | 2007 to 2008 |
| Chevrolet | Corsica | 1987 to 1996 |
| Chevrolet | G30 | 1994 to 1996 |
| Chevrolet | LLV | 1987 to 1995 |
| Chevrolet | Lumina | 1990 to 1993 |
| Chevrolet | P30 | 1990 to 1994 |
| Chevrolet | S10 Blazer | 1987 to 1988 |
| Chevrolet | S10 | 1987 to 1997 |
| Fiat | Palio | 2004 to 2005 |
| Ford | E-350 Club Wagon | 2003 to 2005 |
| Ford | E-350 Econoline Club Wagon | 1995 to 2002 |
| Ford | E-350 Econoline | 1995 to 1998 |
| Ford | E-350 Super Duty | 2004 to 2010 |
| Ford | Excursion | 2000 to 2005 |
| Ford | F-250 HD | 1997 to 1997 |
| Ford | F-250 Super Duty | 1999 to 2007 |
| Ford | F-250 | 1995 to 1996 |
| Ford | F-350 Super Duty | 1999 to 2007 |
| Ford | F-350 | 1995 to 1997 |
| GMC | C1500 Suburban | 1999 to 1999 |
| GMC | C2500 Suburban | 1999 to 1999 |
| GMC | G3500 | 1994 to 1996 |
| GMC | K1500 Suburban | 1999 to 1999 |
| GMC | K2500 Suburban | 1999 to 1999 |
| GMC | P3500 | 1994 to 1996 |
| GMC | S15 Jimmy | 1987 to 1988 |
| GMC | S15 | 1987 to 1990 |
| GMC | Safari | 1987 to 1990 |
| GMC | Sonoma | 1991 to 1997 |
| GMC | Yukon XL 1500 | 2001 to 2001 |
| GMC | Yukon XL 2500 | 2001 to 2001 |
| Isuzu | Hombre | 1996 to 1997 |
| Oldsmobile | 98 | 1982 to 1984 |
| Oldsmobile | Calais | 1987 to 1987 |
| Oldsmobile | Custom Cruiser | 1982 to 1990 |
| Oldsmobile | Cutlass Calais | 1982 to 1991 |
| Oldsmobile | Cutlass Ciera | 1987 to 1996 |
| Oldsmobile | Cutlass Cruiser | 1982 to 1990 |
| Oldsmobile | Cutlass Salon | 1985 to 1987 |
| Oldsmobile | Cutlass Supreme | 1986 to 1987 |
| Oldsmobile | Cutlass | 1985 to 1987 |
| Oldsmobile | Firenza | 1987 to 1987 |
| Pontiac | 6000 | 1987 to 1991 |
| Pontiac | Acadian | 1982 to 1987 |
| Pontiac | Bonneville | 1982 to 1984 |
| Pontiac | Fiero | 1987 to 1988 |
| Pontiac | G5 | 2007 to 2008 |
| Pontiac | Grand Am | 1987 to 1991 |
| Pontiac | Grand LeMans | 1982 to 1983 |
| Pontiac | Grand Prix | 1982 to 1984 |
| Pontiac | LeMans | 1988 to 1993 |
| Pontiac | Optima | 1988 to 1991 |
| Pontiac | Parisienne | 1982 to 1984 |
| Pontiac | Safari | 1987 to 1989 |
| Pontiac | Sunbird | 1987 to 1991 |
| Pontiac | Sunfire | 1995 to 1997 |
| Pontiac | T1000 | 1982 to 1987 |
| Pontiac | Tempest | 1987 to 1991 |
| Saturn | Ion | 2007 to 2007 |
