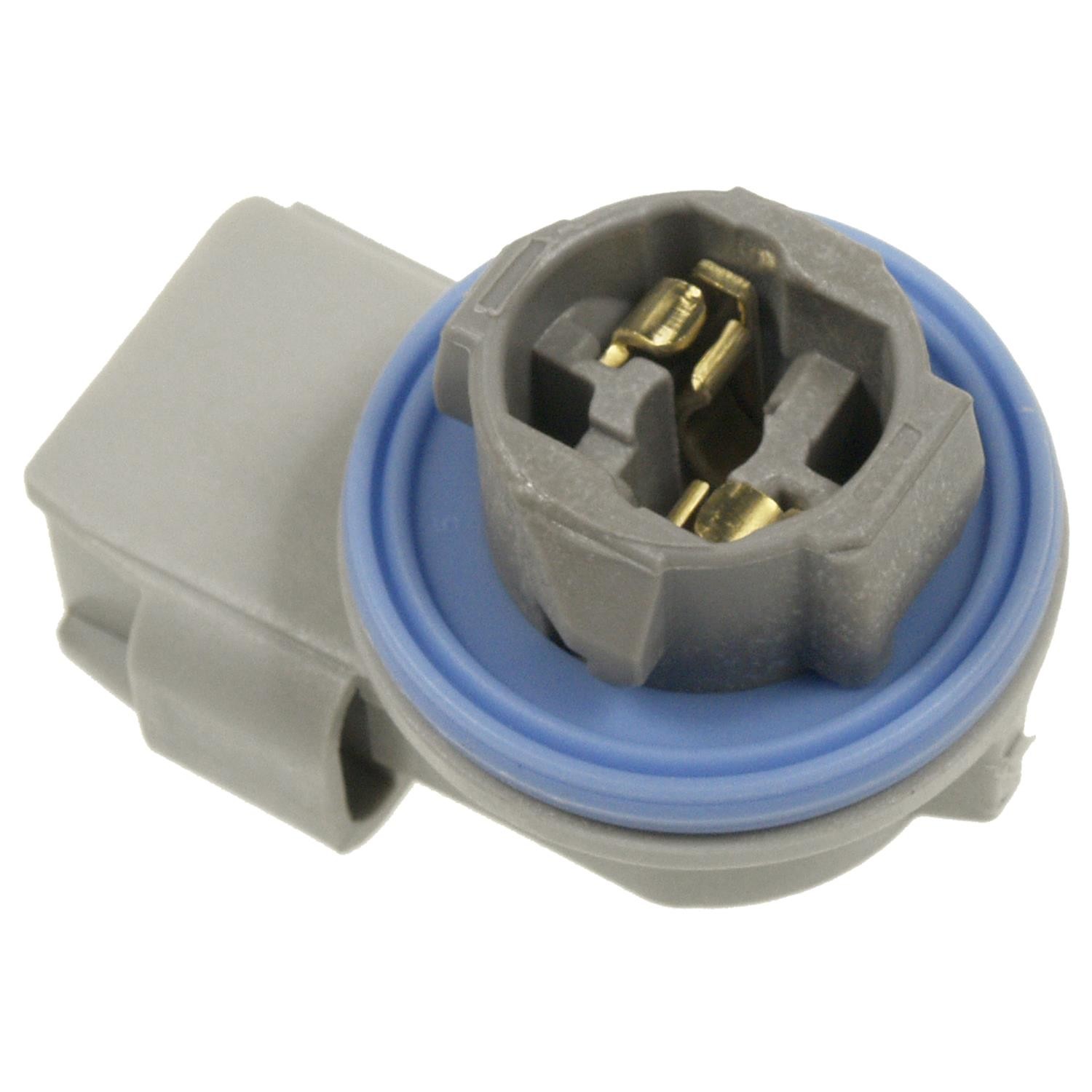

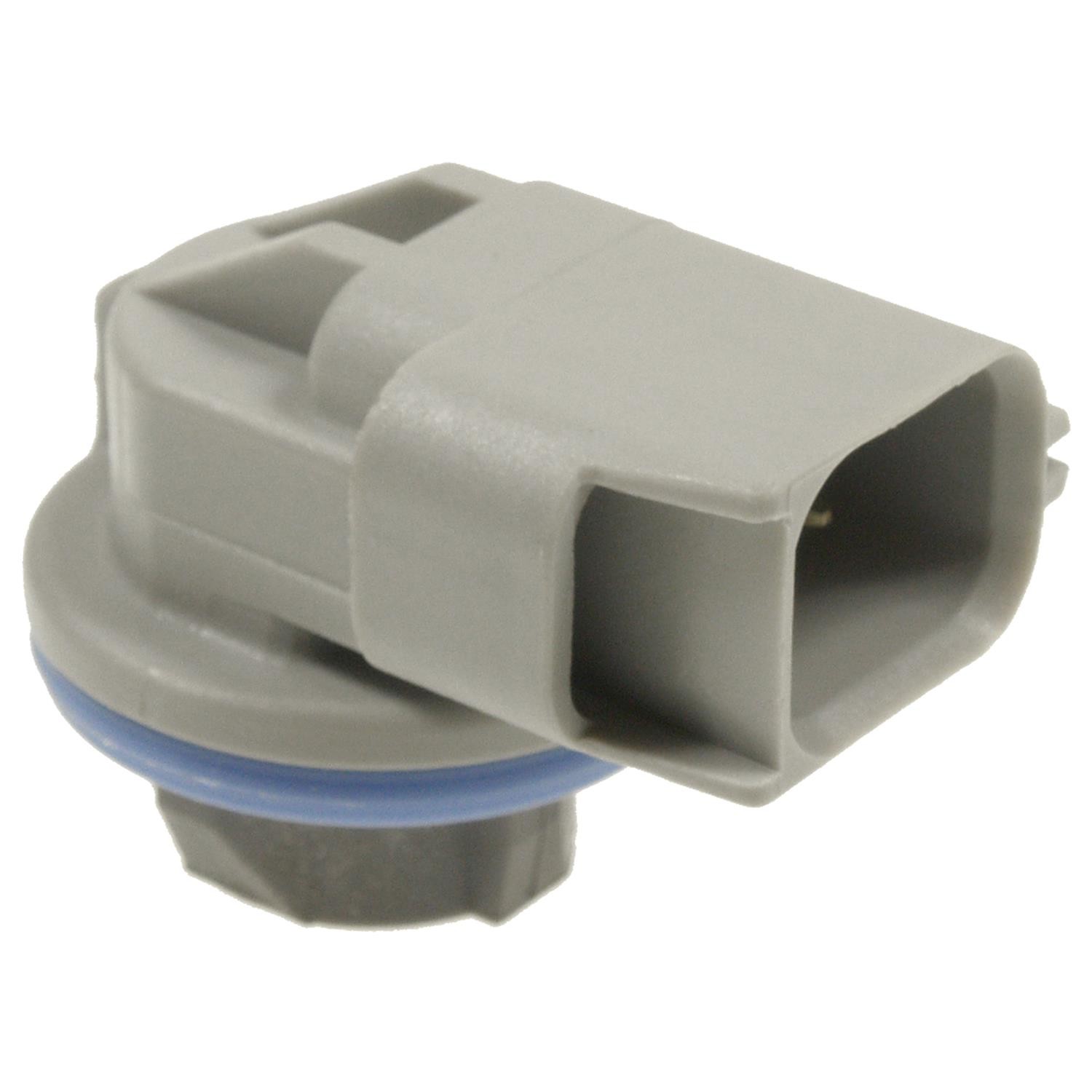

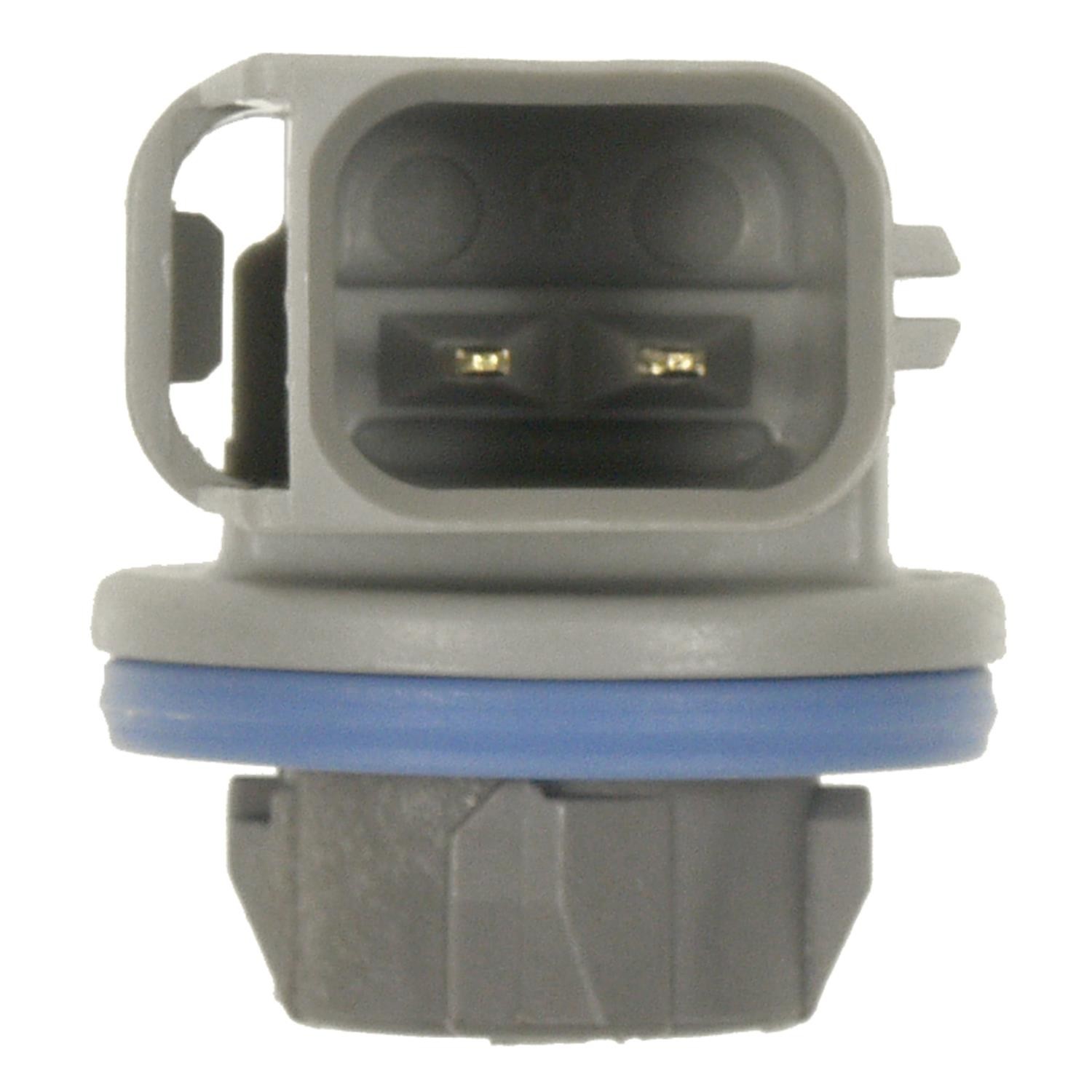

Standard HP4245 Multi Function Socket
Features:
- The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
- All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
- Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
- Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
- Offering thousands of high-quality pigtails and sockets for nearly every electrical job.
- Offering thousands of high-quality pigtails and sockets for nearly every electrical job.
- The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
- All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
- The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
- The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
Atributes:
| Connector Shape | Round; Square |
| Number Of Splice Connectors Includ | 0 |
| Number of wires | 0 |
| Splice Connectors Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Voltage | 12 |
| Water Resistant | No |
| Weatherproof Sealed | Yes |
| Wiring Harness Included | No |
| Length – Inches | 1.5 |
| Attachment Method | Snap Fit |
| Bend Angle (Deg.) | 90 |
| Butt Splices Included | 0 |
| Color/Finish | Gray |
| Connector Gender | Female; Female |
| Connector Quantity | 2 |
| Material | Plastic |
| Contact Terminal Material | Metal |
| Dust Shield Included | No |
| Hardware Included | No |
| Number Of Bulbs Included | 0 |
Vehicle Applications:
| Make | Model | Years |
| to | ||
| Ford | F-250 Super Duty | 1999 to 2012 |
| Ford | F-250 | 1999 to 1999 |
| Ford | F-350 Super Duty | 1999 to 2012 |
| Ford | Focus | 2000 to 2011 |
| Ford | Fusion | 2006 to 2009 |
| Ford | Thunderbird | 2002 to 2005 |
| Lincoln | Aviator | 2003 to 2005 |
| Lincoln | LS | 2000 to 2006 |
| Lincoln | MKX | 2007 to 2010 |
