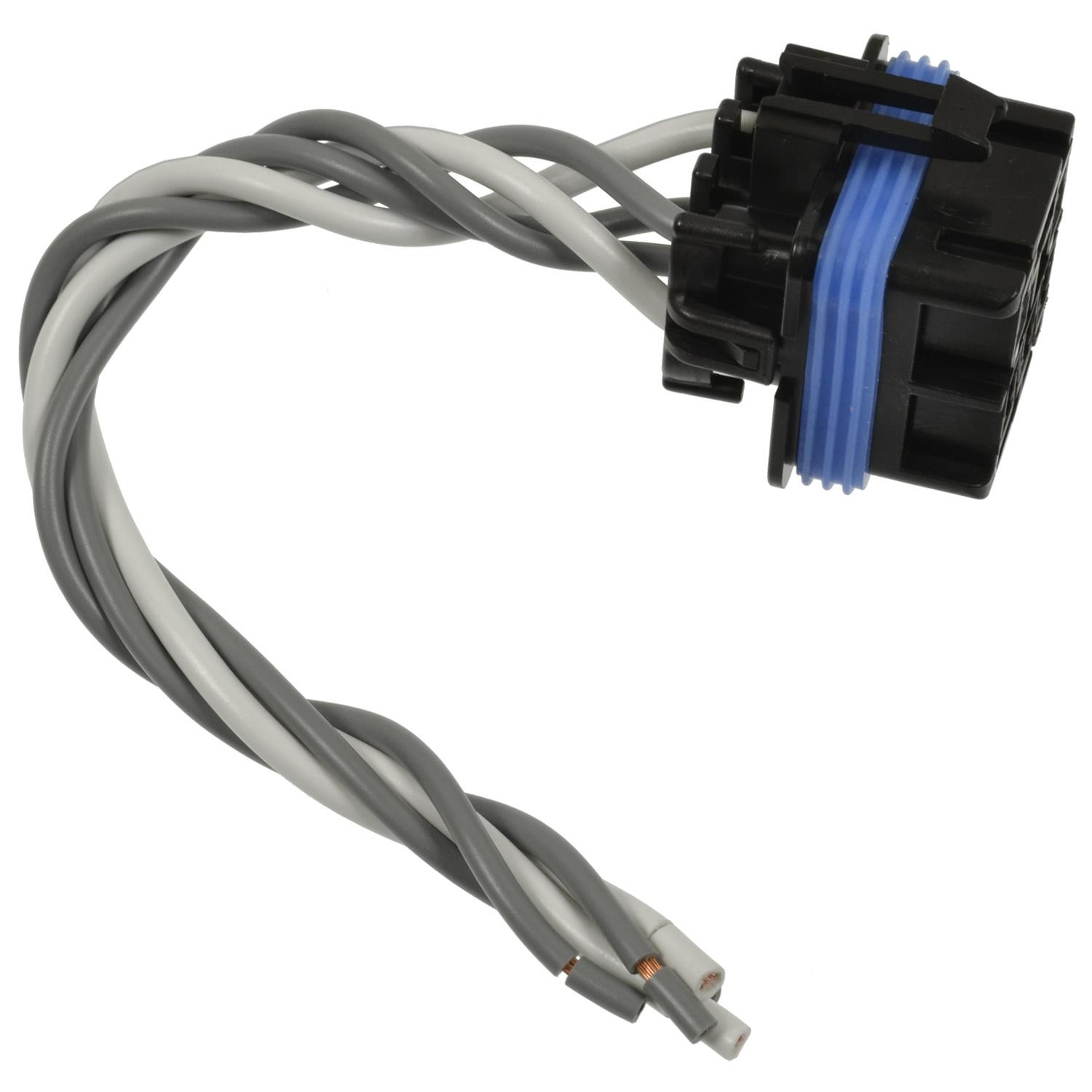

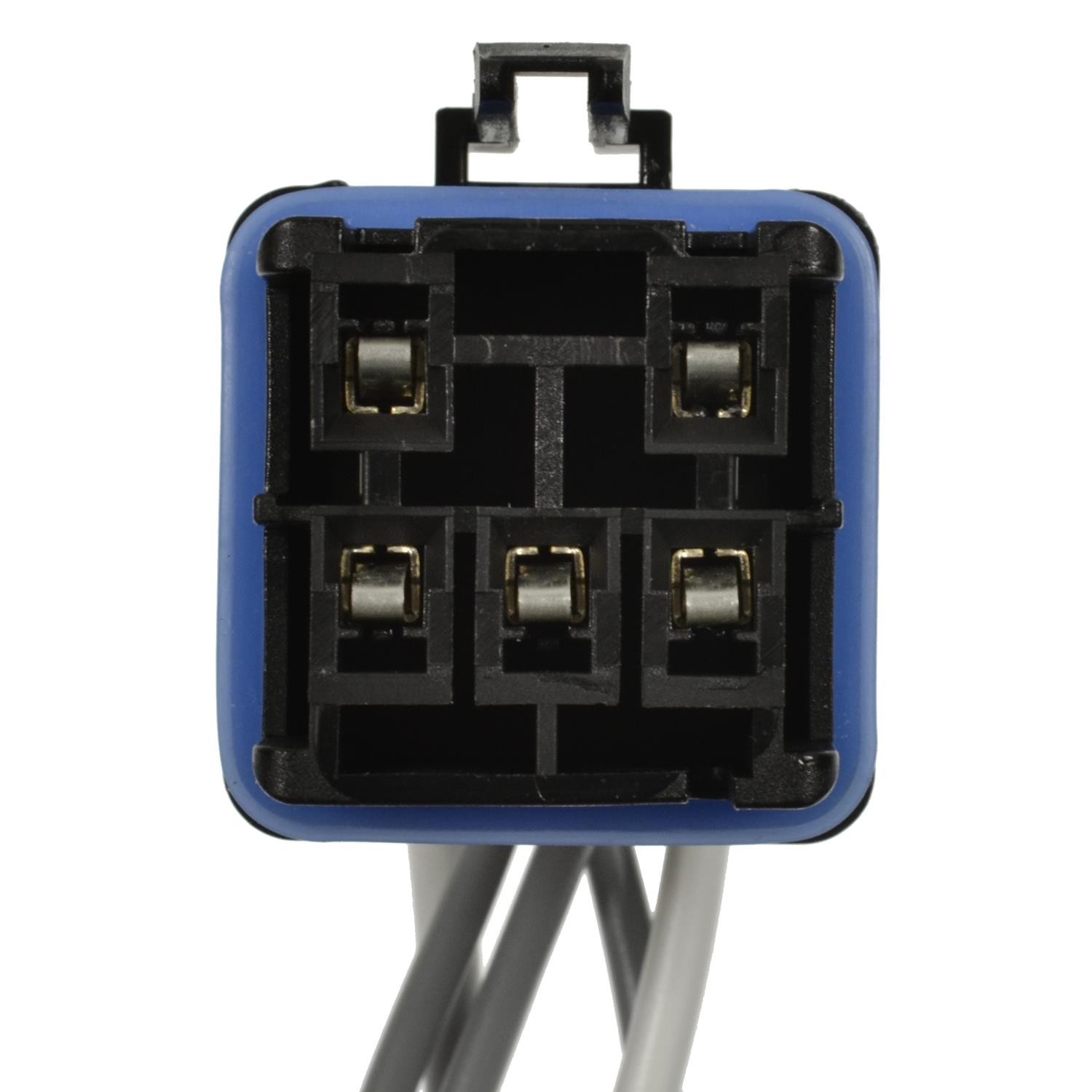

Standard HP4655 A/C Auto Temperature Control Relay Connector
£59.95 Inc VAT
Standard HP4655 A/C Auto Temperature Control Relay Connector
Atributes:
| Wire Quantity | 5 |
| Terminal Quantity | 5 |
| Terminal Gender | Female |
| Splice Connectors Included | No |
| Wiring Harness Included | Yes |
| Harness Length – cm | 21 |
| Number of wires | 5 |
| Number Of Splice Connectors Includ | 0 |
| Material | Plastic |
| Length – Inches | 1.25 |
| Gauge | 12 ga. and 14 ga. |
| Harness Length (mm.) | 210 |
| Harness Length – inches | 8.25 |
| Housing Length (in) | 1 1/4 |
| Attachment Method | Push On |
| Bend Angle (Deg.) | 0 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Contact Terminal Material | Metal |
| Dust Shield Included | No |
| Weatherproof Sealed | Yes |
| Water Resistant | Yes |
| Wire Gauge (ga) | 12, 14 |
| Terminal Type | Blade |
Vehicle Applications:
| Make | Model | Years |
| to | ||
| Buick | Allure | 2005 to 2009 |
| Buick | Century | 1993 to 2005 |
| Buick | Commercial Chassis | 1993 to 1996 |
| Buick | LaCrosse | 2005 to 2008 |
| Buick | LeSabre | 1994 to 2005 |
| Buick | Lucerne | 2006 to 2009 |
| Buick | Park Avenue | 1992 to 2005 |
| Buick | Rainier | 2004 to 2006 |
| Buick | Regal | 1993 to 2004 |
| Buick | Rendezvous | 2002 to 2007 |
| Buick | Riviera | 1995 to 1999 |
| Buick | Roadmaster | 1991 to 1996 |
| Buick | Skylark | 1987 to 1998 |
| Buick | Terraza | 2005 to 2007 |
| Cadillac | CTS | 2003 to 2007 |
| Cadillac | Commercial Chassis | 1993 to 1996 |
| Cadillac | DTS | 2006 to 2011 |
| Cadillac | DeVille | 1994 to 2005 |
| Cadillac | Eldorado | 1994 to 2002 |
| Cadillac | Escalade ESV | 2003 to 2010 |
| Cadillac | Escalade EXT | 2002 to 2010 |
| Cadillac | Escalade | 1999 to 2010 |
| Cadillac | Fleetwood | 1993 to 1996 |
| Cadillac | SRX | 2004 to 2007 |
| Cadillac | STS | 2005 to 2009 |
| Cadillac | Seville | 1994 to 2004 |
| Cadillac | XLR | 2004 to 2007 |
| Chevrolet | Astro | 1993 to 2005 |
| Chevrolet | Avalanche 1500 | 2002 to 2006 |
| Chevrolet | Avalanche 2500 | 2002 to 2006 |
| Chevrolet | Avalanche | 2007 to 2010 |
| Chevrolet | Aveo5 | 2007 to 2008 |
| Chevrolet | Aveo | 2004 to 2008 |
| Chevrolet | Beretta | 1993 to 1996 |
| Chevrolet | Blazer | 1994 to 2005 |
| Chevrolet | C1500 Suburban | 1994 to 1999 |
| Chevrolet | C1500 | 1994 to 2002 |
| Chevrolet | C2500 Suburban | 1994 to 1999 |
| Chevrolet | C2500 | 1994 to 2000 |
| Chevrolet | C3500 | 1994 to 2000 |
| Chevrolet | C35 | 1995 to 2000 |
| Chevrolet | Camaro | 1993 to 2011 |
| Chevrolet | Caprice | 1993 to 1996 |
| Chevrolet | Cargo Van | 1999 to 1999 |
| Chevrolet | Cavalier | 1992 to 2005 |
| Chevrolet | Chevy Pickup | 1999 to 2002 |
| Chevrolet | Cobalt | 2005 to 2010 |
| Chevrolet | Colorado | 2004 to 2012 |
| Chevrolet | Commercial Chassis | 1993 to 1994 |
| Chevrolet | Corsica | 1993 to 1996 |
| Chevrolet | Corvette | 1993 to 2007 |
| Chevrolet | Epica | 2004 to 2006 |
| Chevrolet | Equinox | 2005 to 2013 |
| Chevrolet | Express 1500 | 1996 to 2011 |
| Chevrolet | Express 2500 | 1996 to 2011 |
| Chevrolet | Express 3500 | 1996 to 2011 |
| Chevrolet | G10 | 1993 to 1995 |
| Chevrolet | G20 | 1993 to 1995 |
| Chevrolet | G30 | 1993 to 1996 |
| Chevrolet | HHR | 2006 to 2007 |
| Chevrolet | Impala | 1994 to 2012 |
| Chevrolet | K1500 Suburban | 1994 to 1999 |
| Chevrolet | K1500 | 1994 to 1999 |
| Chevrolet | K2500 Suburban | 1994 to 1999 |
| Chevrolet | K2500 | 1994 to 2000 |
| Chevrolet | K3500 | 1994 to 2000 |
| Chevrolet | LLV | 1994 to 1995 |
| Chevrolet | Lumina APV | 1993 to 1996 |
| Chevrolet | Lumina Van | 1995 to 1996 |
| Chevrolet | Lumina | 1994 to 2001 |
| Chevrolet | Malibu | 1997 to 2007 |
| Chevrolet | Monte Carlo | 1995 to 2007 |
| Chevrolet | Optra | 2004 to 2005 |
| Chevrolet | P30 | 1995 to 1999 |
| Chevrolet | S10 Blazer | 1994 to 1994 |
| Chevrolet | S10 | 1993 to 2004 |
| Chevrolet | SSR | 2003 to 2006 |
| Chevrolet | Silverado 1500 Classic | 2007 to 2007 |
| Chevrolet | Silverado 1500 HD Classic | 2007 to 2007 |
| Chevrolet | Silverado 1500 HD | 2001 to 2006 |
| Chevrolet | Silverado 1500 | 1999 to 2012 |
| Chevrolet | Silverado 2500 HD Classic | 2007 to 2007 |
| Chevrolet | Silverado 2500 HD | 2001 to 2012 |
| Chevrolet | Silverado 2500 | 1999 to 2006 |
| Chevrolet | Silverado 3500 Classic | 2007 to 2007 |
| Chevrolet | Silverado 3500 HD | 2007 to 2012 |
| Chevrolet | Silverado 3500 | 2001 to 2007 |
| Chevrolet | Silverado | 1995 to 1999 |
| Chevrolet | Suburban 1500 | 1995 to 2012 |
| Chevrolet | Suburban 2500 | 2000 to 2012 |
| Chevrolet | Tahoe | 1995 to 2012 |
| Chevrolet | Trailblazer EXT | 2005 to 2006 |
| Chevrolet | Trailblazer | 2005 to 2007 |
| Chevrolet | Uplander | 2005 to 2008 |
| Chevrolet | Venture | 1997 to 2005 |
| Dodge | D150 | 1990 to 1990 |
| Ford | Escape | 2001 to 2007 |
| Ford | Expedition | 1997 to 1998 |
| Ford | Probe | 1996 to 1997 |
| GMC | C1500 Suburban | 1994 to 1999 |
| GMC | C1500 | 1994 to 1999 |
| GMC | C2500 Suburban | 1994 to 1999 |
| GMC | C2500 | 1994 to 2000 |
| GMC | C3500 | 1994 to 2000 |
| GMC | Canyon | 2006 to 2012 |
| GMC | Envoy XL | 2005 to 2006 |
| GMC | Envoy XUV | 2005 to 2005 |
| GMC | Envoy | 2005 to 2008 |
| GMC | G1500 | 1994 to 1995 |
| GMC | G2500 | 1994 to 1995 |
| GMC | G3500 | 1994 to 1996 |
| GMC | Jimmy | 1993 to 2005 |
| GMC | K1500 Suburban | 1994 to 1999 |
| GMC | K1500 | 1994 to 1999 |
| GMC | K2500 Suburban | 1994 to 1999 |
| GMC | K2500 | 1994 to 2000 |
| GMC | K3500 | 1994 to 2000 |
| GMC | P3500 | 1995 to 1999 |
| GMC | Safari | 1993 to 2005 |
| GMC | Savana 1500 | 1996 to 2011 |
| GMC | Savana 2500 | 1996 to 2011 |
| GMC | Savana 3500 | 1996 to 2011 |
| GMC | Sierra 1500 Classic | 2007 to 2007 |
| GMC | Sierra 1500 HD Classic | 2007 to 2007 |
| GMC | Sierra 1500 HD | 2001 to 2006 |
| GMC | Sierra 1500 | 1999 to 2012 |
| GMC | Sierra 2500 HD Classic | 2007 to 2007 |
| GMC | Sierra 2500 HD | 2001 to 2012 |
| GMC | Sierra 2500 | 1999 to 2004 |
| GMC | Sierra 3500 Classic | 2007 to 2007 |
| GMC | Sierra 3500 HD | 2007 to 2012 |
| GMC | Sierra 3500 | 2001 to 2006 |
| GMC | Sonoma | 1993 to 2004 |
| GMC | Terrain | 2010 to 2012 |
| GMC | Typhoon | 1993 to 1993 |
| GMC | Yukon XL 1500 | 2000 to 2013 |
| GMC | Yukon XL 2500 | 2000 to 2012 |
| GMC | Yukon | 1994 to 2012 |
| Geo | Prizm | 1993 to 1997 |
| Hummer | H2 | 2003 to 2009 |
| Hummer | H3 | 2006 to 2007 |
| Isuzu | Hombre | 1996 to 2000 |
| Isuzu | i-280 | 2006 to 2006 |
| Isuzu | i-290 | 2007 to 2007 |
| Isuzu | i-350 | 2006 to 2006 |
| Isuzu | i-370 | 2007 to 2007 |
| Lincoln | Navigator | 1998 to 1998 |
| Mercury | Mariner | 2005 to 2007 |
| Oldsmobile | 88 | 1994 to 1999 |
| Oldsmobile | 98 | 1994 to 1996 |
| Oldsmobile | Achieva | 1993 to 1998 |
| Oldsmobile | Alero | 1999 to 2004 |
| Oldsmobile | Aurora | 1995 to 2003 |
| Oldsmobile | Bravada | 1994 to 2001 |
| Oldsmobile | Cutlass Calais | 1990 to 1991 |
| Oldsmobile | Cutlass Ciera | 1989 to 1996 |
| Oldsmobile | Cutlass Cruiser | 1993 to 1994 |
| Oldsmobile | Cutlass Salon | 1985 to 1986 |
| Oldsmobile | Cutlass Supreme | 1985 to 1997 |
| Oldsmobile | Cutlass | 1985 to 1999 |
| Oldsmobile | Delta 88 | 1991 to 1991 |
| Oldsmobile | Intrigue | 1998 to 2002 |
| Oldsmobile | LSS | 1996 to 1999 |
| Oldsmobile | Regency | 1997 to 1998 |
| Oldsmobile | Silhouette | 1993 to 2004 |
| Pontiac | Aztek | 2001 to 2005 |
| Pontiac | Bonneville | 1994 to 2005 |
| Pontiac | Firebird | 1986 to 2002 |
| Pontiac | G5 | 2007 to 2010 |
| Pontiac | G6 | 2005 to 2010 |
| Pontiac | Grand Am | 1987 to 2005 |
| Pontiac | Grand Prix | 1994 to 2008 |
| Pontiac | Montana | 1999 to 2008 |
| Pontiac | Solstice | 2006 to 2007 |
| Pontiac | Sunbird | 1993 to 1994 |
| Pontiac | Sunfire | 1995 to 2005 |
| Pontiac | Torrent | 2006 to 2009 |
| Pontiac | Trans Sport | 1993 to 1999 |
| Saturn | Ion | 2003 to 2007 |
| Saturn | L200 | 2003 to 2003 |
| Saturn | L300 | 2003 to 2005 |
| Saturn | LW1 | 2000 to 2000 |
| Saturn | LW200 | 2001 to 2001 |
| Saturn | LW2 | 2000 to 2000 |
| Saturn | LW300 | 2001 to 2001 |
| Saturn | Relay | 2005 to 2007 |
| Saturn | SC1 | 1993 to 2002 |
| Saturn | SC2 | 1993 to 2002 |
| Saturn | SC | 1991 to 1992 |
| Saturn | SL1 | 1991 to 2002 |
| Saturn | SL2 | 1991 to 2002 |
| Saturn | SL | 1991 to 2002 |
| Saturn | SW1 | 1993 to 1999 |
| Saturn | SW2 | 1993 to 2001 |
| Saturn | Sky | 2007 to 2007 |
| Saturn | Vue | 2004 to 2007 |
| Suzuki | XL-7 | 2005 to 2008 |
| Weight | 0.063 kg |
|---|
