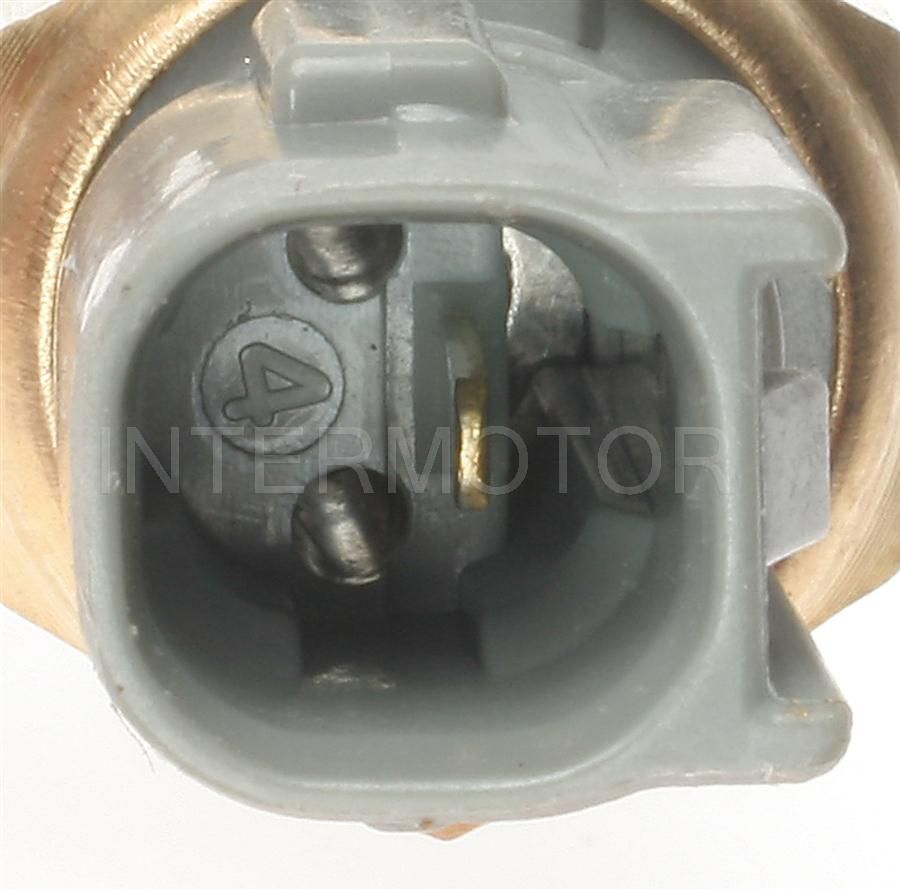

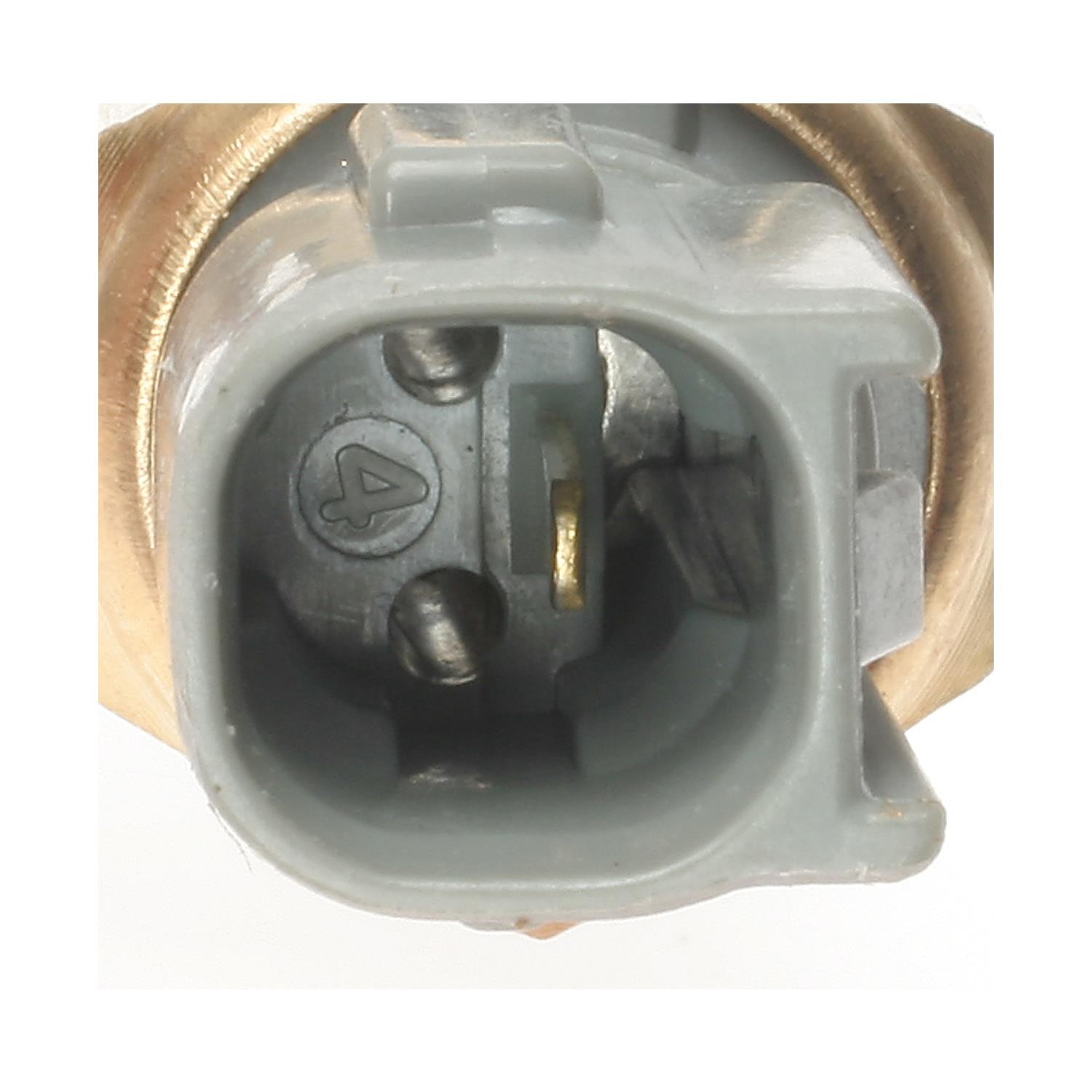

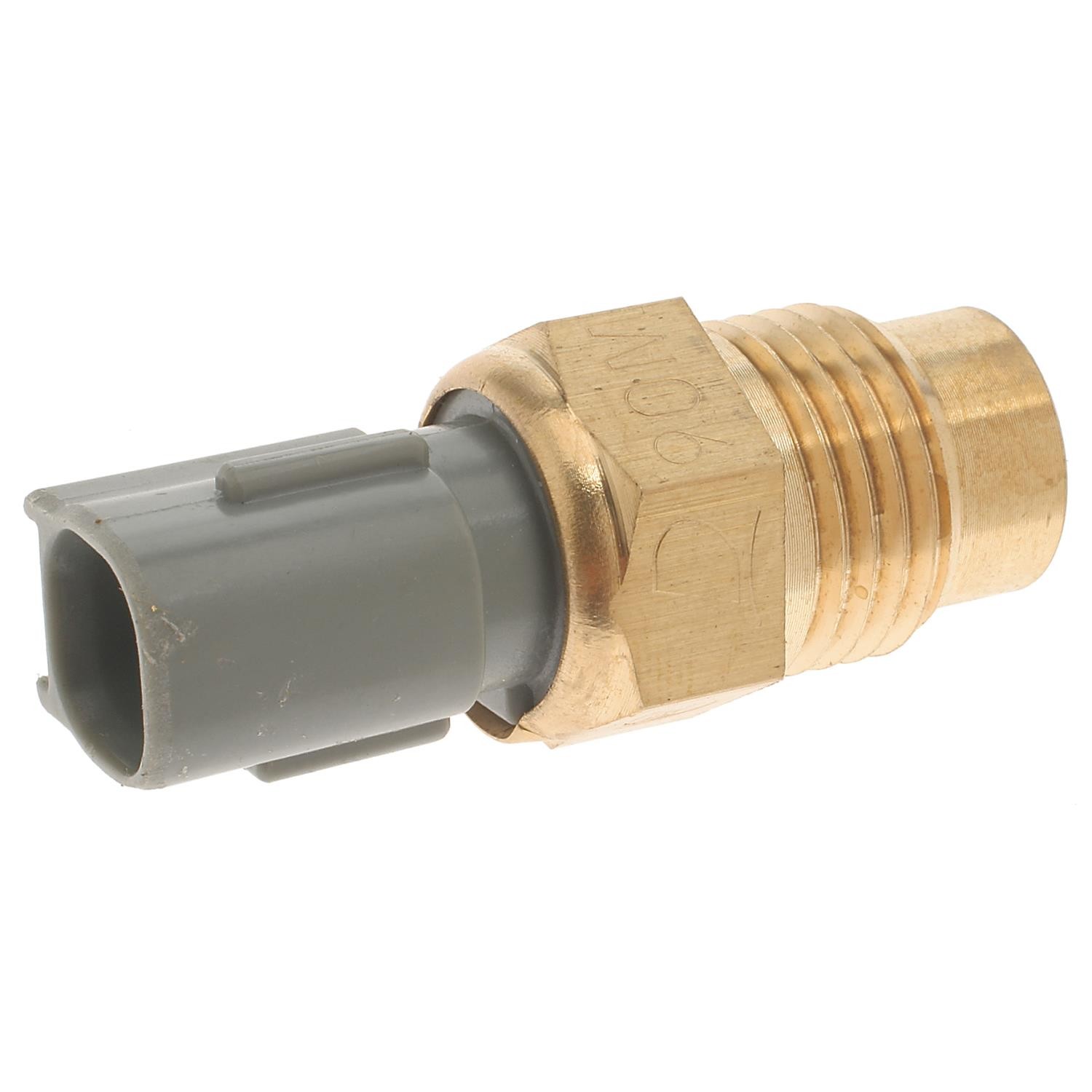

Standard TS-394 Coolant Fan Switch
£60.95 Inc VAT
Standard TS-394 Coolant Fan Switch
Features:
- Robust design and high grade materials meet the stringent demands of today’s service professional
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
- In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller
- In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
- In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point
- The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
Atributes:
| Housing Material | Metal |
| Attachment Method | Plug In |
| Open at Idle | Yes |
| Hardware Included | No |
| Bulb Included | No |
| Mounting Bracket(s) Included | No |
| Switch Shape | Square |
| Overall Width (mm) | 12.7 |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Wire Quantity | 0 |
| Terminal Type | Blade |
| Width – Inches | 0.5 |
| Terminal Quantity | 1 |
| Voltage | 12 |
| Switch Actuation Style | Toggle |
| Thread Size | 16MMX1.50 |
| Connector Shape | Square |
| Connector Quantity | 1 |
| Connector Gender | Female |
| Color/Finish | Gray, Gold |
| Weight | 0.032 kg |
|---|
