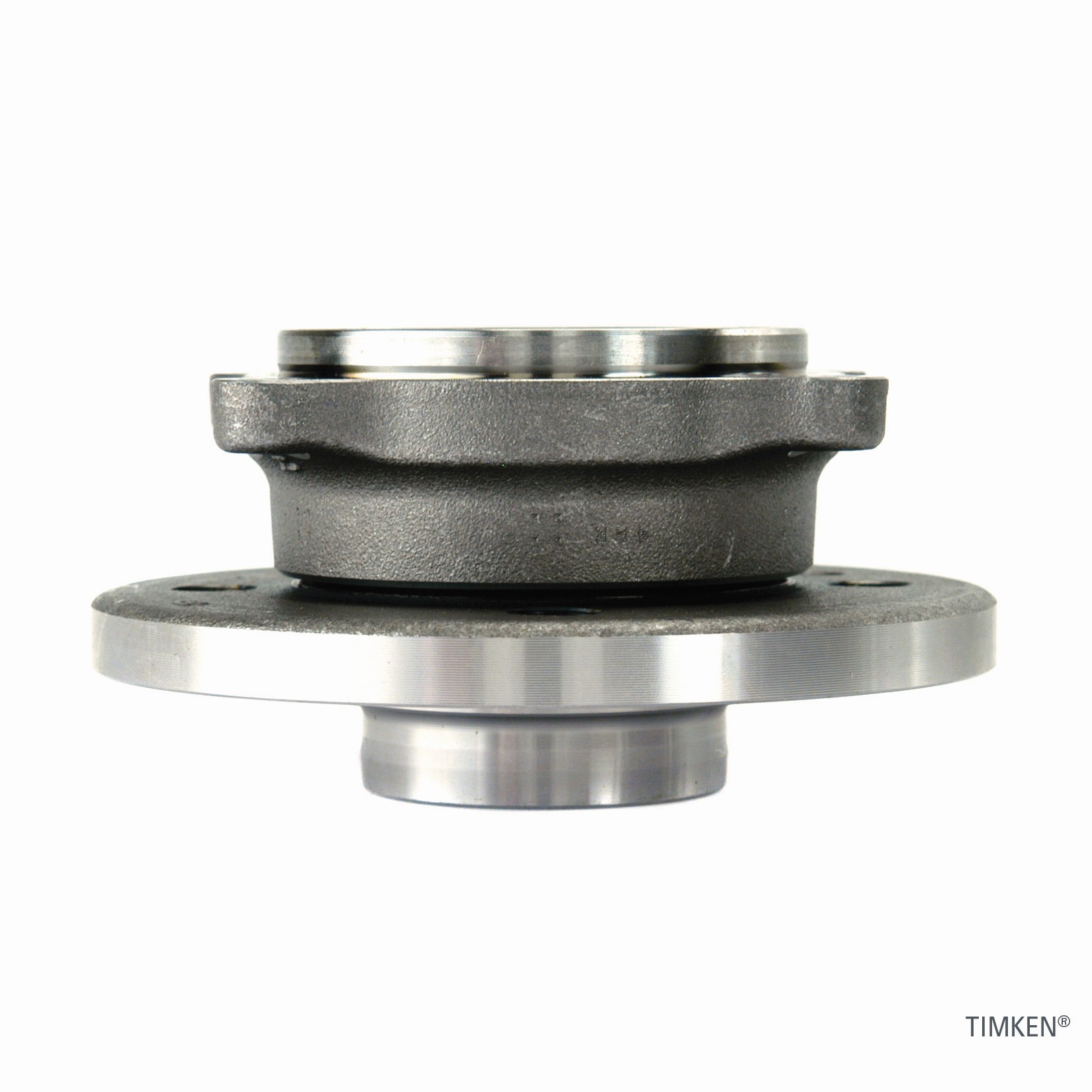

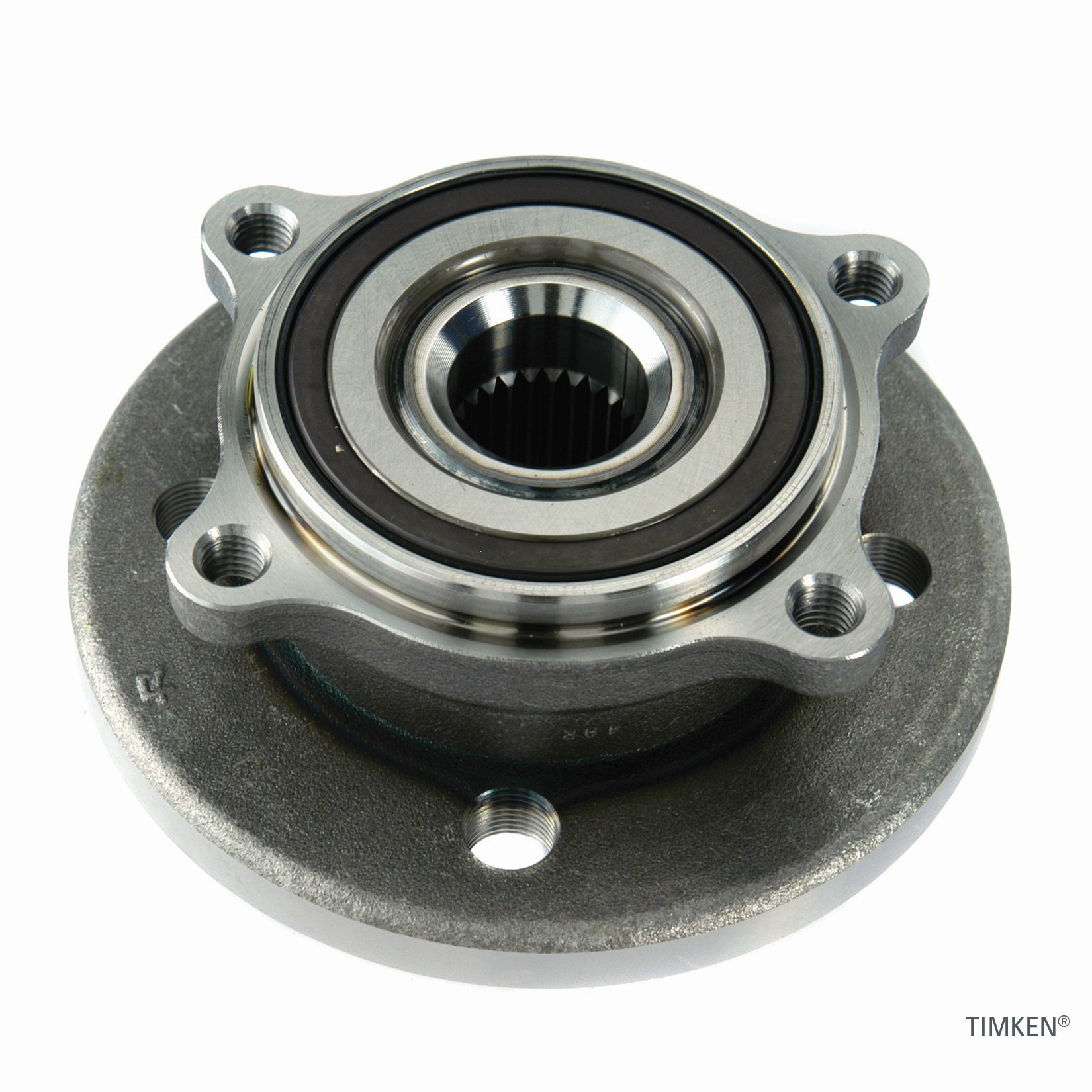

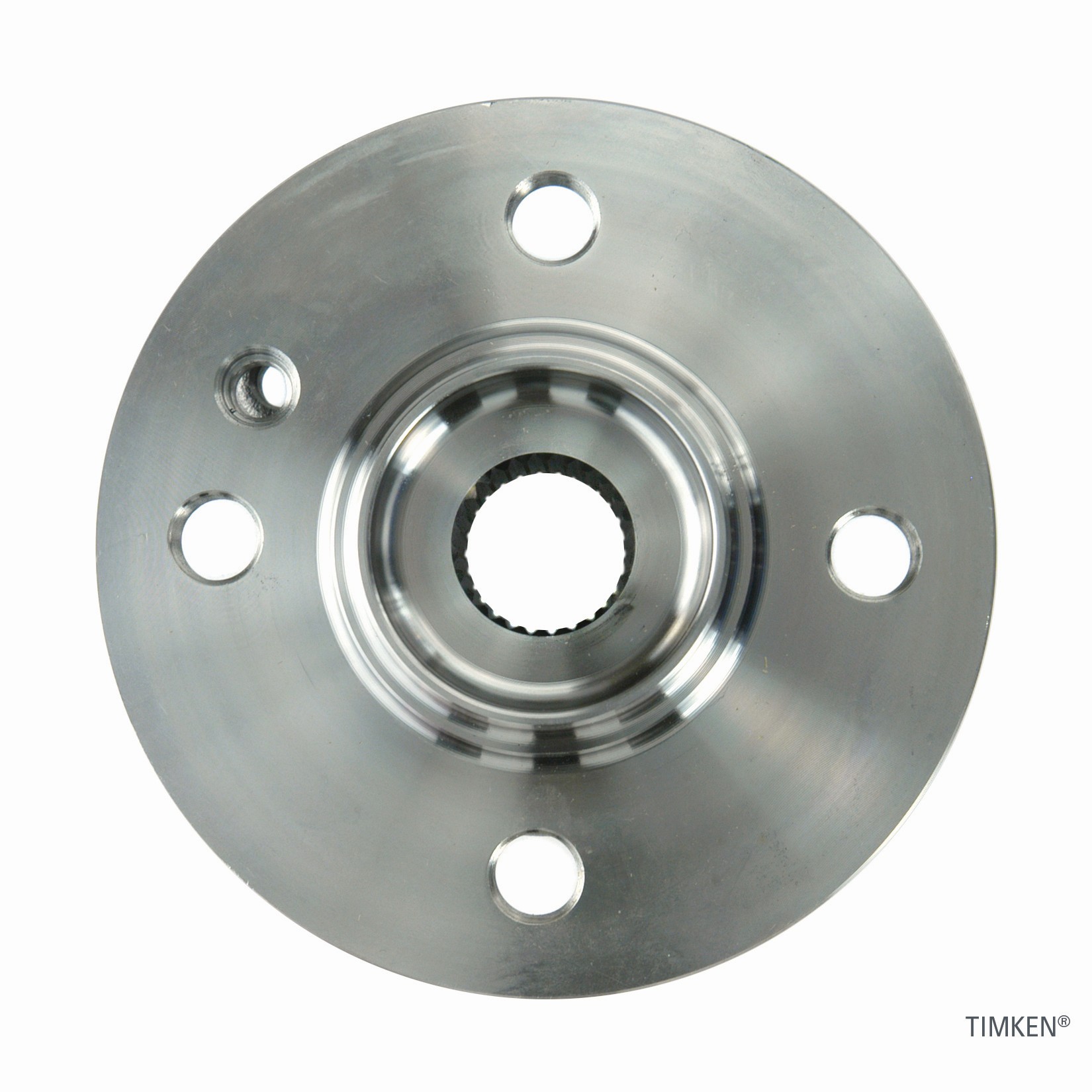

Timken 513309 Hub Unit Bearing Assemblies: Preset, Pre-Greased And Pre-Sealed

Timken 513309 Hub Unit Bearing Assemblies: Preset, Pre-Greased And Pre-Sealed

Hub Unit Bearing Assemblies: Preset, Pre-Greased And Pre-Sealed

Features:

Get A Smoother Ride With Timken Hub Assemblies. Low Runout Reduces Noise And Vibration, Improving Braking Performance.
Premium Seals Feature Reinforced Outer Case, Ribbed Rubber Inner Diameter, Contamination Exclusion System, Vent Holes To Prevent Installation Damage, Promote Positive Sealing And Enhance Seal Life.
Timken Hub Assemblies Feature Premium Bearings With Precision Profiles, Uniform Internal Geometry, Enhanced Surface Finishes To Increase Load Carrying Capacity, Extend Bearing Life And Improve Fuel.
Our Abs Sensors Are 100% Tested To Monitor Wheel Speed For Anti-Lock Braking Systems (Abs)
Timken Uses Oe-Developed Tests Controling The Design, Materials And Process Used To Manufacture Their Hub Bearing Assemblies, Ensuring Consistently High Performance

Attributes:

Bolt Circle Diameter	3.937 IN
Spline Quantity	26
Flange Bolt Hole Quantity	4
Flange Diameter	137.41 MM
Flange Diameter	5.410 IN
Brake Pilot Diameter	2.520 IN
Brake Pilot Diameter	64.00 MM
Flange Offset	44.00 MM
Flange Offset	1.732 IN
Hub Pilot Diameter	3.190 IN
Hub Pilot Diameter	81.03 MM
Wheel Stud Quantity	4
Drive Type	Driven
Wheel Pilot Diameter	2.210 IN
Wheel Pilot Diameter	56.13 MM
Bolt Circle Diameter	100.00 MM
