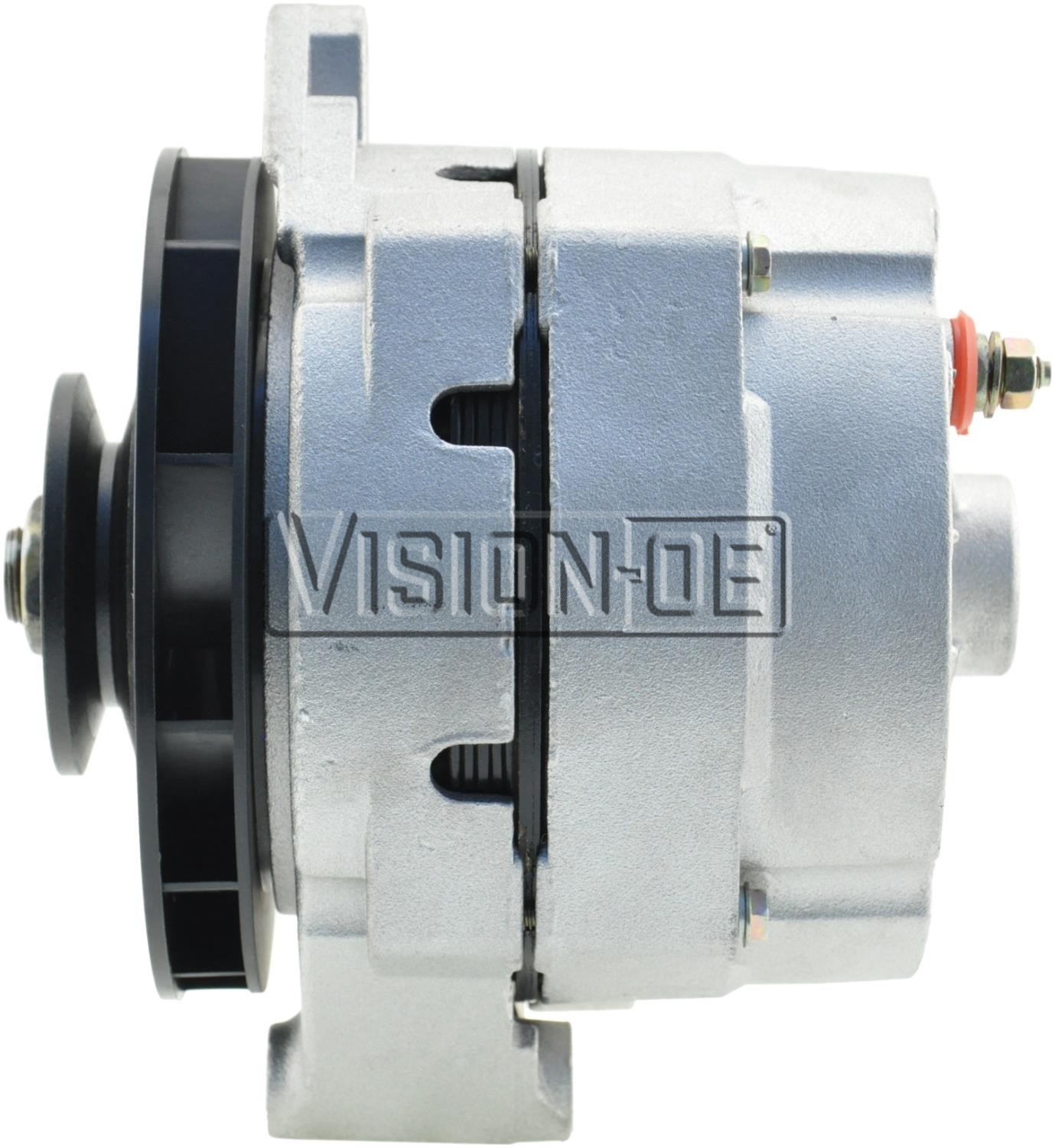

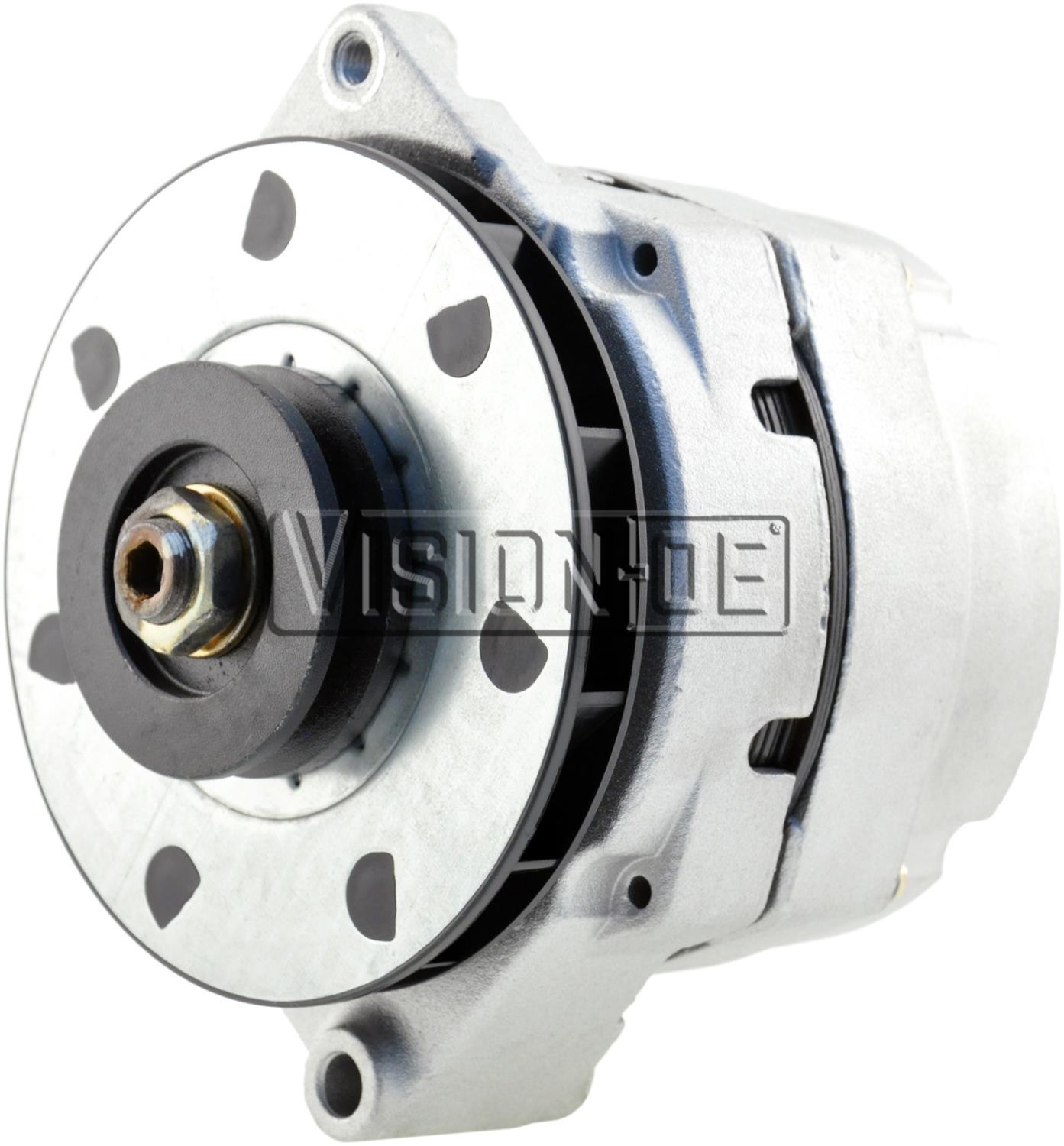

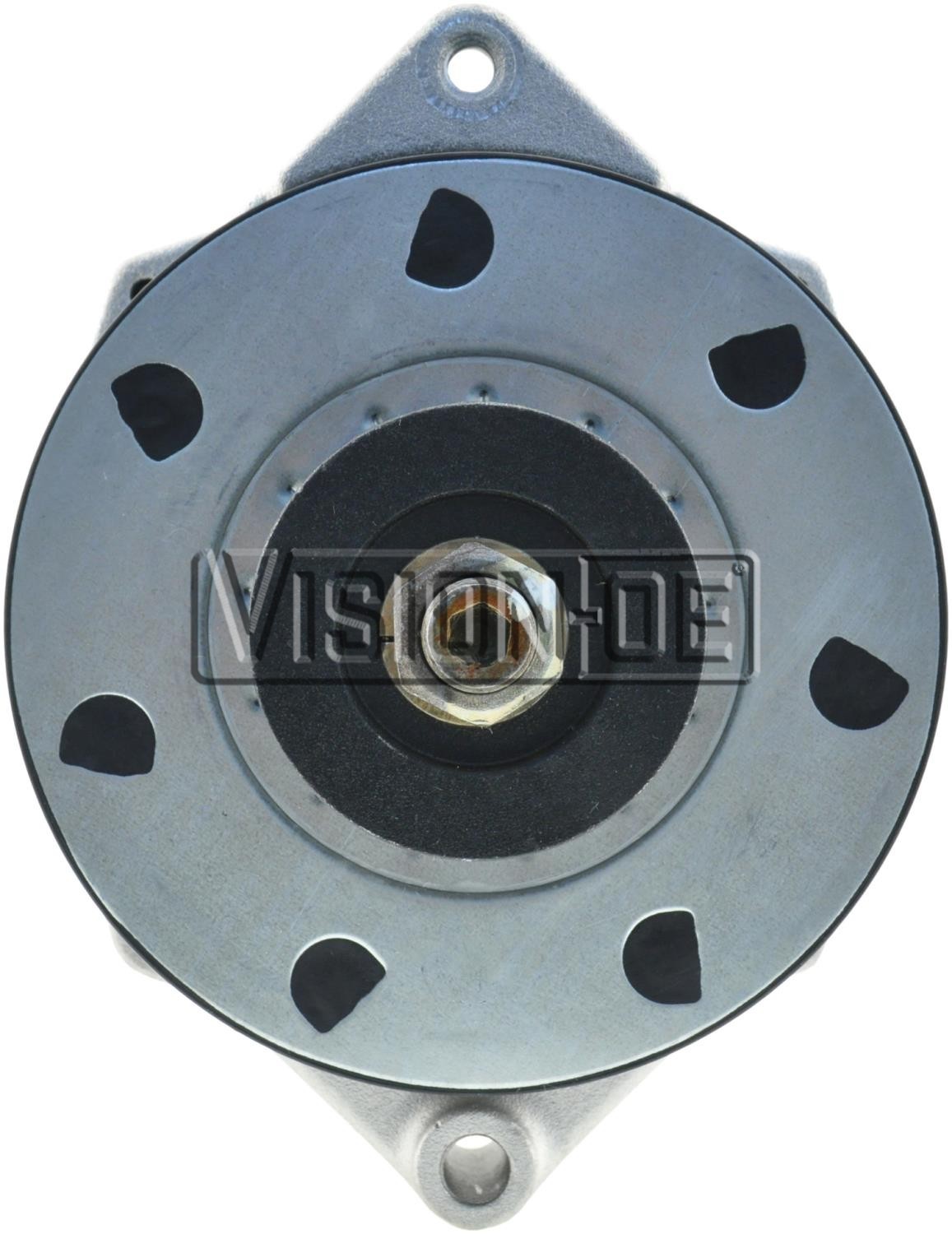

Vision 7273-12 Remanufactured Alternator

Vision 7273-12 Remanufactured Alternator

Premium-quality remanufactured alternator designed for dependability and reliability throughout the service life of the vehicle.

Attributes:

Voltage Regulator Type	Internal
New or Remanufactured	Remanufactured
External Fan Included	Yes
9037	No
Decoupled Or Clutch Pulley	No
8122	No
Series	12SI
Rotation Direction	Clockwise
Pulley Type	Conventional
Pulley Included	Yes
Decoupled Or Clutch Pulley	No
Pulley Belt Type	V-belt
Cooling Method	Air
Brushless Design	No
Polarity	Negative

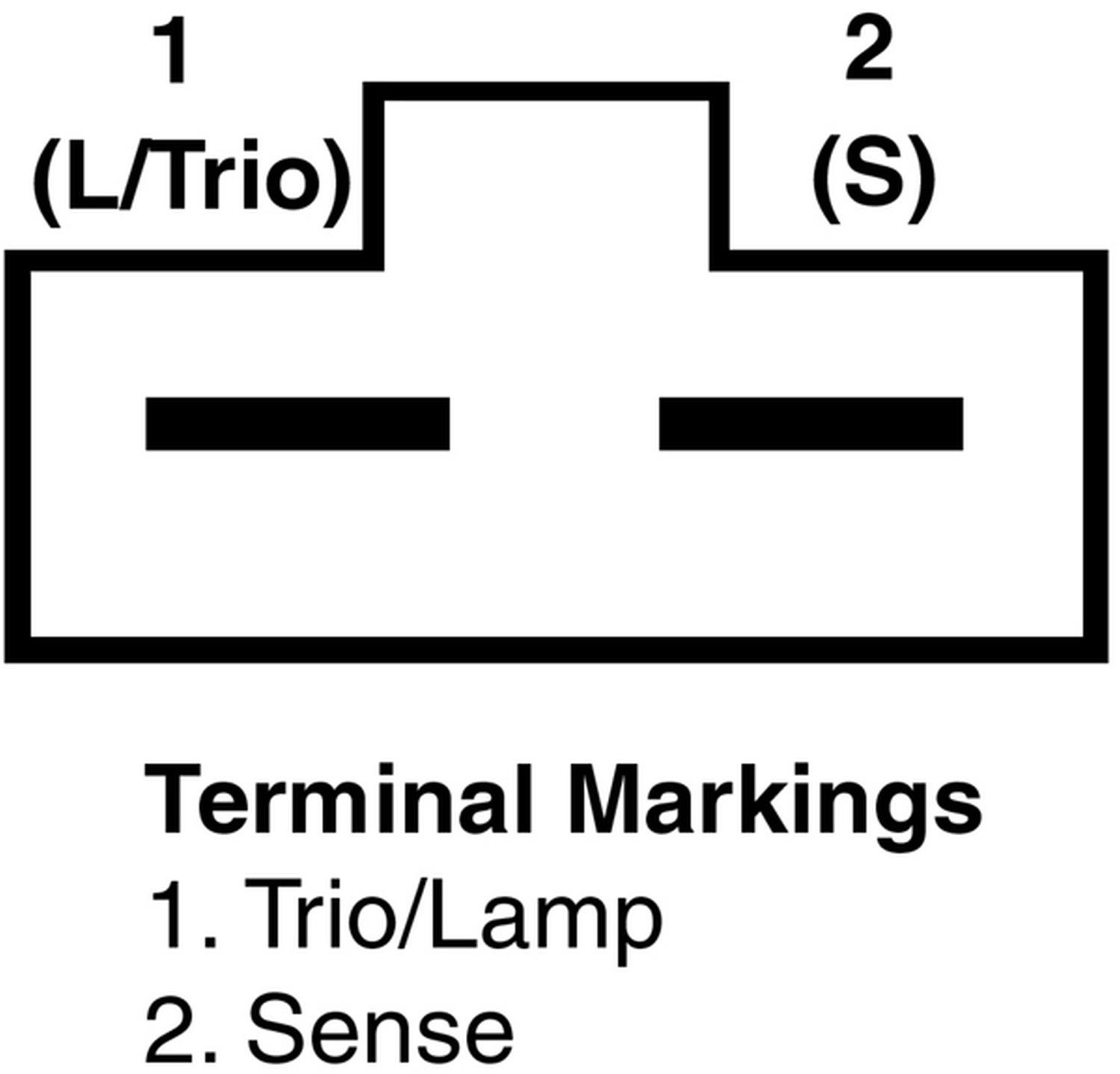

Plug Clock Position	12
Outside Pulley Diameter (in)	2-1/2
One Wire Capable	No
229	No
Polarity	Negative
OE Manufacturer	Delco/Delphi
Pulley Type	Conventional
Cooling Method	Air
Series	12SI
184	12
Outside Pulley Diameter (in)	2-1/2
OE Manufacturer	Delco/Delphi
Number Of Pulley Grooves	1
Fan Type	External
External Fan Included	Yes
Rotation	Clockwise
Pulley Included	Yes
Pulley	V-belt
Fan	External
Regulator	Internal
Outside Pulley Diameter	64 MM
AC Tap	No
Voltage	12 2H
Amperage Rating	78 68
Voltage (V)	12 VDC
Outside Pulley Diameter (mm)	64 mm
Amperage (A)	78 A
Pulley Groove Quantity	1
New or Remanufactured	Remanufactured

Vehicle Applications:

Make	Model	Years
American Motors	Concord	1983 to 1983
American Motors	Eagle	1983 to 1988
American Motors	Spirit	1983 to 1983
Buick	Century	1983 to 1984
Buick	Somerset Regal	1985 to 1985
Chevrolet	Astro	1985 to 1985
Chevrolet	Blazer	1987 to 1990
Chevrolet	C10 Suburban	1983 to 1986
Chevrolet	C10	1983 to 1986
Chevrolet	C20 Suburban	1983 to 1986
Chevrolet	C20	1983 to 1986
Chevrolet	C30	1983 to 1986
Chevrolet	Caprice	1983 to 1987
Chevrolet	Celebrity	1983 to 1984
Chevrolet	El Camino	1983 to 1987
Chevrolet	G10	1985 to 1987
Chevrolet	G20	1983 to 1990
Chevrolet	G30	1983 to 1990
Chevrolet	Impala	1983 to 1985
Chevrolet	K10 Suburban	1983 to 1986
Chevrolet	K10	1983 to 1986
Chevrolet	K20 Suburban	1983 to 1986
Chevrolet	K20	1983 to 1986
Chevrolet	K30	1983 to 1986
Chevrolet	K5 Blazer	1983 to 1986
Chevrolet	Malibu	1983 to 1983
Chevrolet	Monte Carlo	1983 to 1988
Chevrolet	P20	1983 to 1989
Chevrolet	P30	1983 to 1990
Chevrolet	R10 Suburban	1987 to 1988
Chevrolet	R10	1987 to 1987
Chevrolet	R1500 Suburban	1989 to 1990
Chevrolet	R20 Suburban	1987 to 1988
Chevrolet	R20	1987 to 1988
Chevrolet	R2500 Suburban	1989 to 1990
Chevrolet	R2500	1989 to 1989
Chevrolet	R30	1987 to 1988
Chevrolet	R3500	1989 to 1990
Chevrolet	S10 Blazer	1983 to 1984
Chevrolet	S10	1983 to 1984
Chevrolet	V10 Suburban	1987 to 1988
Chevrolet	V10	1987 to 1987
Chevrolet	V1500 Suburban	1989 to 1990
Chevrolet	V20 Suburban	1987 to 1988
Chevrolet	V20	1987 to 1987
Chevrolet	V2500 Suburban	1989 to 1990
Chevrolet	V30	1987 to 1988
Chevrolet	V3500	1989 to 1990
GMC	C1500 Suburban	1983 to 1986
GMC	C1500	1983 to 1986
GMC	C2500 Suburban	1983 to 1986
GMC	C2500	1983 to 1986
GMC	C3500	1983 to 1986
GMC	Caballero	1983 to 1987
GMC	G1500	1985 to 1987
GMC	G2500	1983 to 1990
GMC	G3500	1983 to 1990
GMC	Jimmy	1983 to 1990
GMC	K1500 Suburban	1983 to 1986
GMC	K1500	1983 to 1986
GMC	K2500 Suburban	1983 to 1986
GMC	K2500	1983 to 1986
GMC	K3500	1983 to 1986
GMC	P2500	1983 to 1989
GMC	P3500	1983 to 1990
GMC	R1500 Suburban	1987 to 1990
GMC	R1500	1987 to 1987
GMC	R2500 Suburban	1987 to 1990
GMC	R2500	1987 to 1989
GMC	R3500	1987 to 1990
GMC	S15 Jimmy	1983 to 1984
GMC	S15	1983 to 1984
GMC	Safari	1985 to 1985
GMC	V1500 Suburban	1987 to 1990
GMC	V1500	1987 to 1987
GMC	V2500 Suburban	1987 to 1990
GMC	V2500	1987 to 1987
GMC	V3500	1987 to 1990
Jeep	CJ5	1983 to 1983
Jeep	CJ7	1983 to 1986
Jeep	Cherokee	1983 to 1986
Jeep	Comanche	1986 to 1986
Jeep	Grand Wagoneer	1984 to 1986
Jeep	J10	1983 to 1987
Jeep	Scrambler	1983 to 1986
Jeep	Wagoneer	1983 to 1986
Jeep	Wrangler	1987 to 1989
Oldsmobile	Calais	1985 to 1985
Oldsmobile	Cutlass Ciera	1983 to 1985
Pontiac	6000	1983 to 1984
Pontiac	Bonneville	1986 to 1986
Pontiac	Fiero	1985 to 1987
Pontiac	Grand Am	1985 to 1985
Pontiac	Grand Prix	1986 to 1987
Pontiac	Parisienne	1983 to 1986
