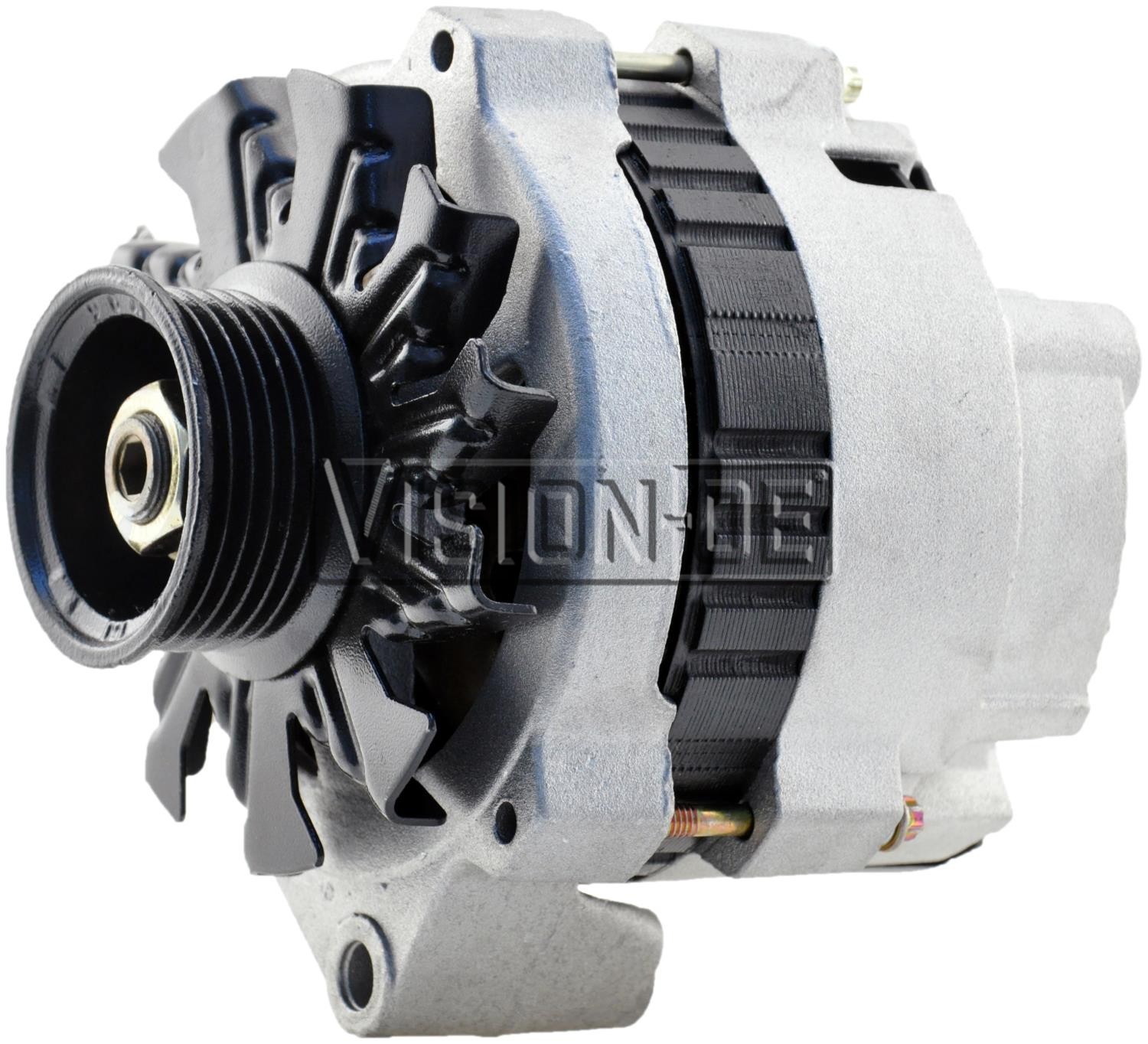

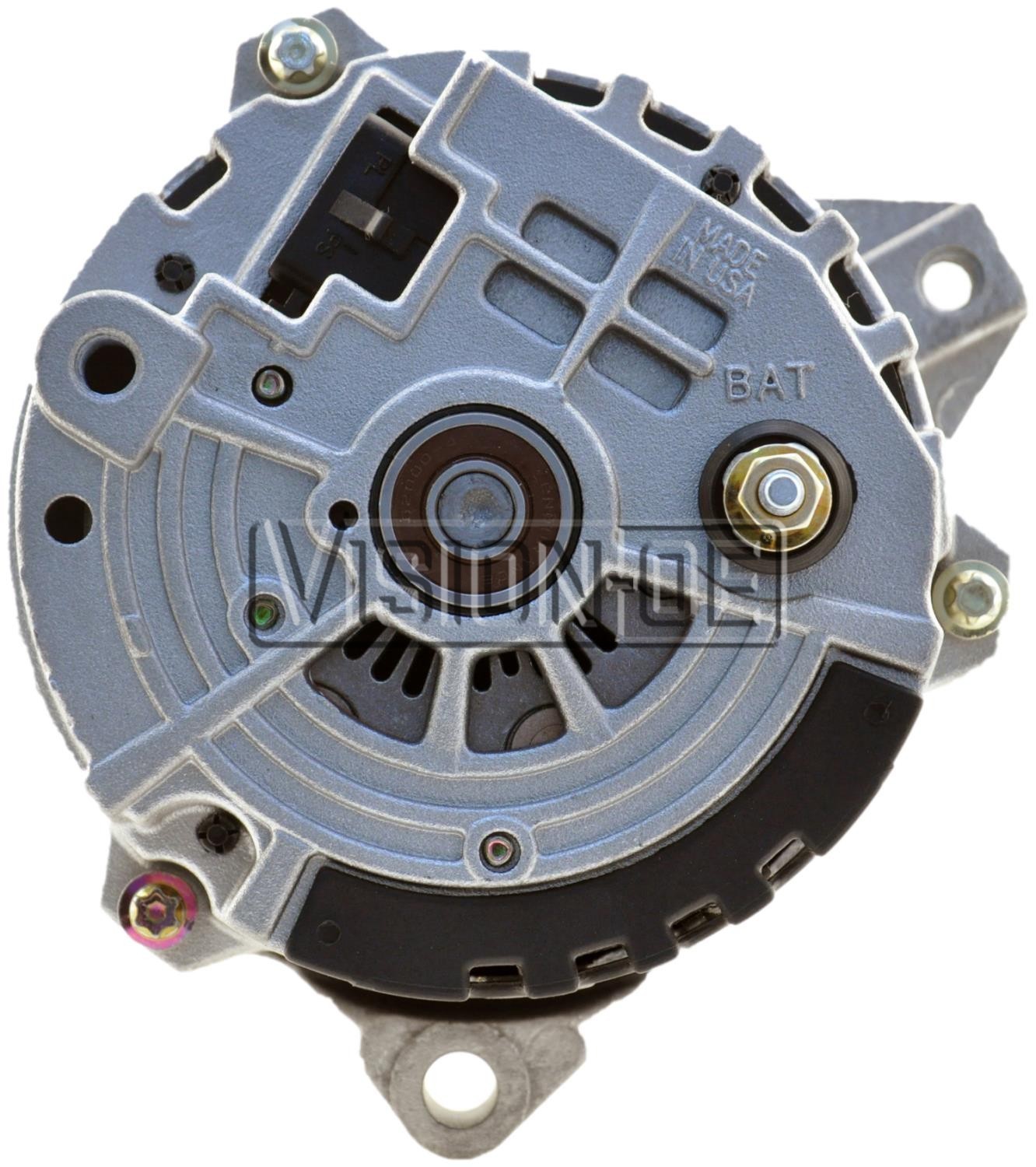

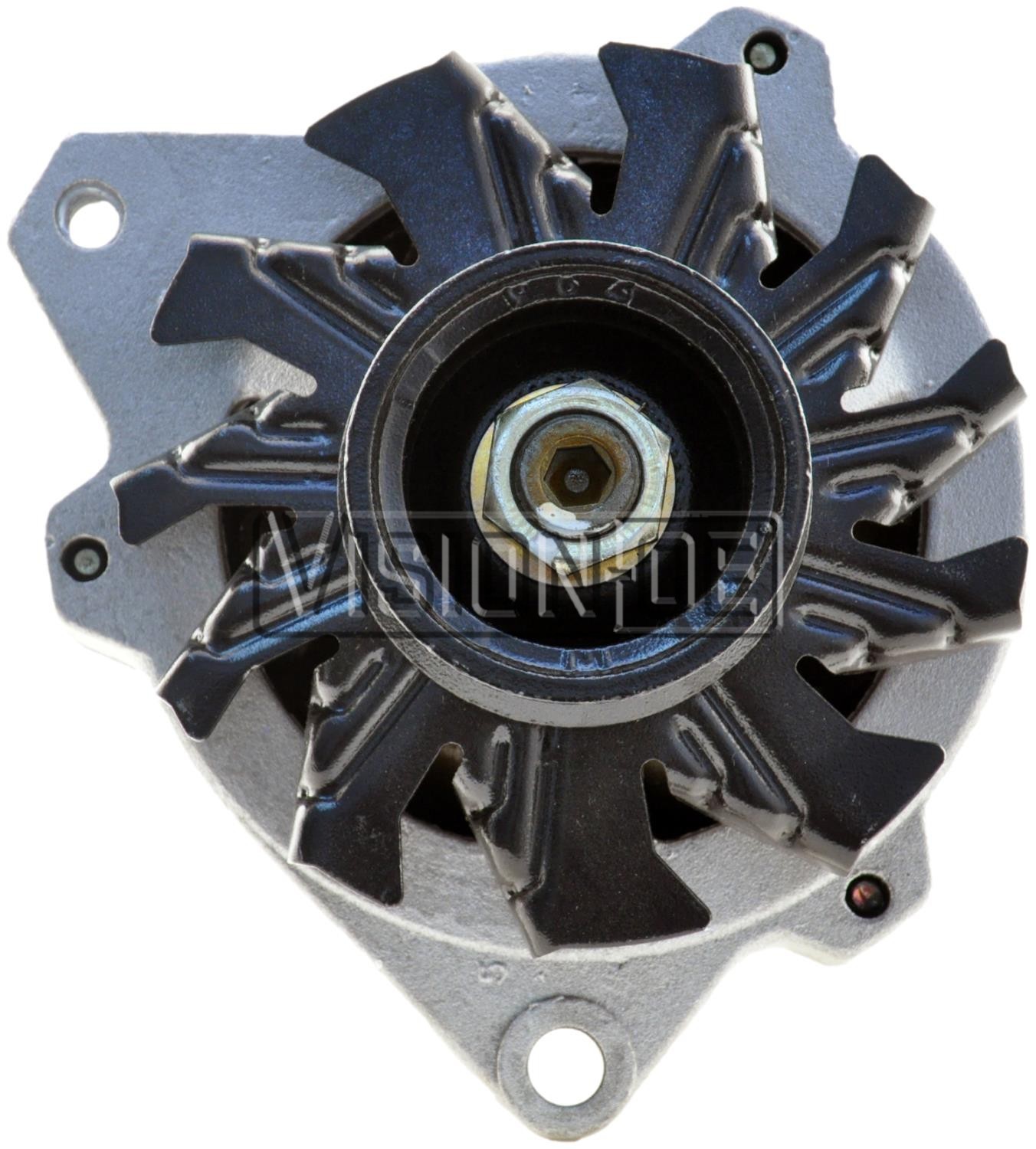

Vision 7861-11 Remanufactured Alternator

Vision 7861-11 Remanufactured Alternator

Premium-quality remanufactured alternator designed for dependability and reliability throughout the service life of the vehicle.

Attributes:

OE Manufacturer	Delco/Delphi
Number Of Pulley Grooves	6
Polarity	Negative
Pulley Included	Yes
Rotation Direction	Clockwise
Series	CS130
Pulley Type	Conventional
Fan Type	External
Outside Pulley Diameter	59 MM
Amperage Rating	105 68
New or Remanufactured	Remanufactured
Amperage (A)	105 A
Outside Pulley Diameter (mm)	59 mm
Voltage (V)	12 VDC
Pulley	Serpentine
Regulator	Internal
Fan	External
External Fan Included	Yes
Decoupled Or Clutch Pulley	No
Cooling Method	Air
Brushless Design	No
AC Tap	No
Voltage	12 2H
Plug Clock Position	11
Outside Pulley Diameter (in)	2-5/16
Voltage Regulator Type	Internal
New or Remanufactured	Remanufactured
External Fan Included	Yes
9037	No
8122	No
229	No
Decoupled Or Clutch Pulley	No
Polarity	Negative
OE Manufacturer	Delco/Delphi
Series	CS130
Pulley Type	Conventional
Cooling Method	Air
184	11
Outside Pulley Diameter (in)	2-5/16
Rotation	Clockwise
Pulley Groove Quantity	6
Pulley Included	Yes
Pulley Belt Type	Serpentine
One Wire Capable	No

Vehicle Applications:

Make	Model	Years
Buick	Commercial Chassis	1991 to 1992
Buick	Roadmaster	1991 to 1992
Cadillac	Brougham	1991 to 1992
Cadillac	Commercial Chassis	1992 to 1992
Chevrolet	Astro	1987 to 1989
Chevrolet	Blazer	1987 to 1987
Chevrolet	C1500	1988 to 1992
Chevrolet	C2500	1988 to 1992
Chevrolet	C3500	1988 to 1992
Chevrolet	Camaro	1990 to 1992
Chevrolet	Caprice	1991 to 1993
Chevrolet	Commercial Chassis	1991 to 1993
Chevrolet	G10	1987 to 1991
Chevrolet	G20	1987 to 1991
Chevrolet	G30	1987 to 1991
Chevrolet	K1500	1988 to 1992
Chevrolet	K2500	1988 to 1992
Chevrolet	K3500	1988 to 1992
Chevrolet	R10 Suburban	1987 to 1987
Chevrolet	R10	1987 to 1987
Chevrolet	R20	1987 to 1988
Chevrolet	V10	1987 to 1987
GMC	C1500	1988 to 1992
GMC	C2500	1988 to 1992
GMC	C3500	1988 to 1992
GMC	G1500	1987 to 1991
GMC	G2500	1987 to 1991
GMC	G3500	1987 to 1991
GMC	Jimmy	1987 to 1989
GMC	K1500	1988 to 1992
GMC	K2500	1988 to 1992
GMC	K3500	1988 to 1992
GMC	R1500 Suburban	1987 to 1987
GMC	R1500	1987 to 1987
GMC	R2500	1987 to 1987
GMC	Safari	1987 to 1989
GMC	V1500	1987 to 1987
Oldsmobile	Custom Cruiser	1991 to 1992
Pontiac	Firebird	1990 to 1992
