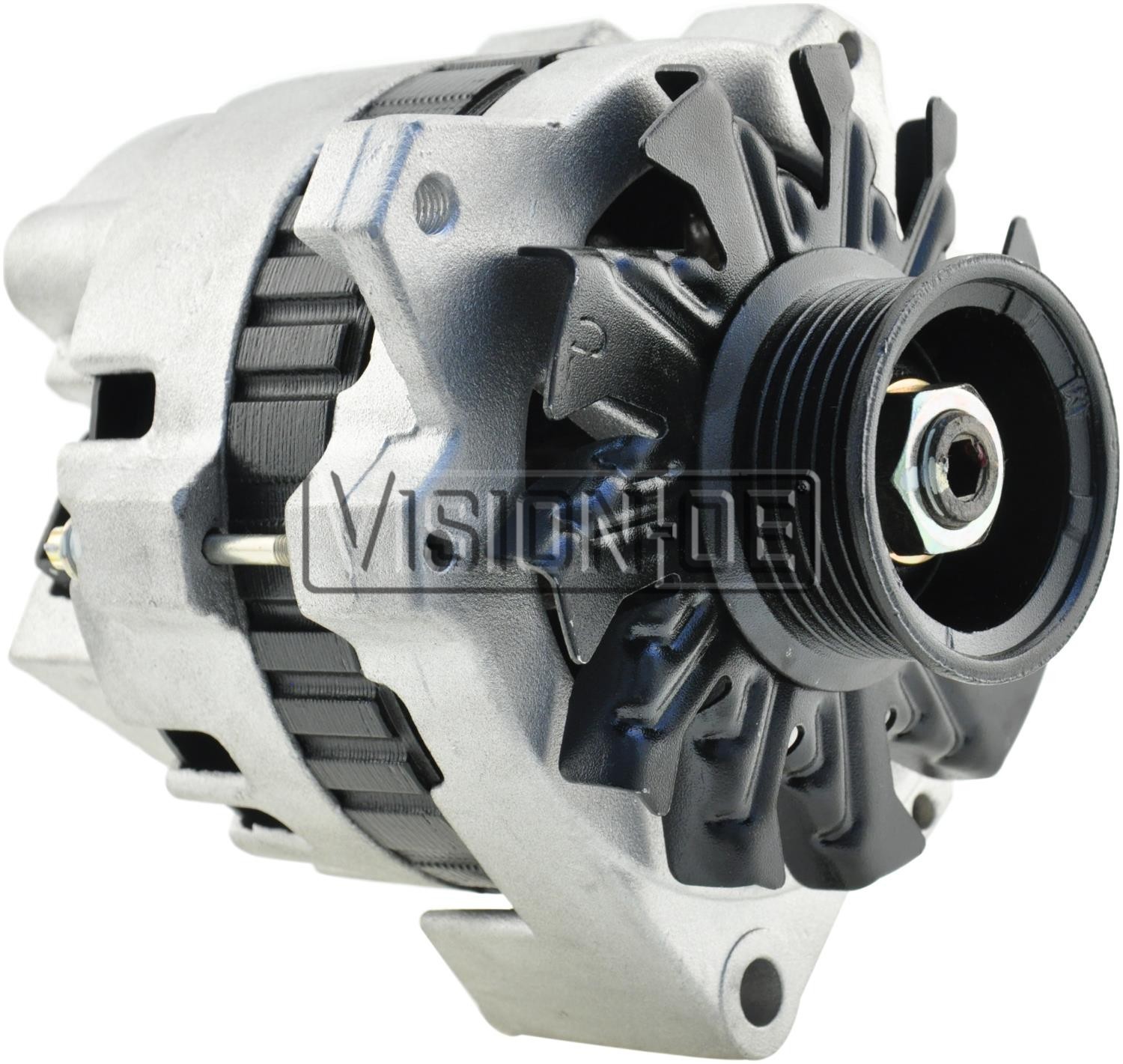

Vision 7861-3 Remanufactured Alternator

Vision 7861-3 Remanufactured Alternator

Premium-quality remanufactured alternator designed for dependability and reliability throughout the service life of the vehicle.

Attributes:

Outside Pulley Diameter (mm)	59 mm
External Fan Included	Yes
Fan Type	External
Pulley Included	Yes
Pulley	Serpentine
Regulator	Internal
Fan	External
Rotation	Clockwise
Pulley Groove Quantity	6
Amperage Rating	105 68
Outside Pulley Diameter	59 MM
Voltage	12 2H
184	3
AC Tap	No
Brushless Design	No
Cooling Method	Air
Number Of Pulley Grooves	6
OE Manufacturer	Delco/Delphi
One Wire Capable	No
Outside Pulley Diameter (in)	2-5/16

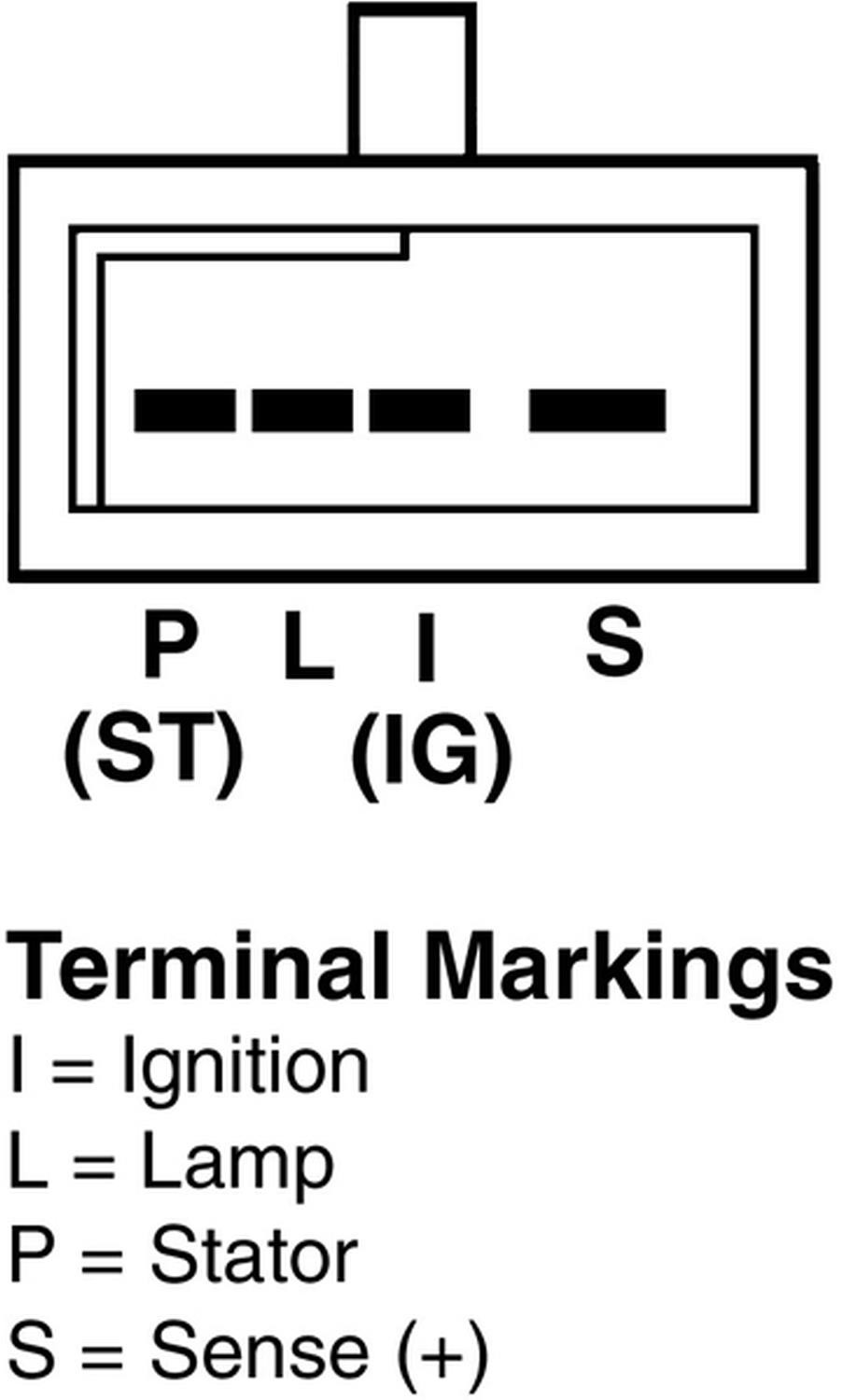

Plug Clock Position	3
Polarity	Negative
Pulley Belt Type	Serpentine
Pulley Included	Yes
Pulley Type	Conventional
Outside Pulley Diameter (in)	2-5/16
Cooling Method	Air
Amperage (A)	85 A
Voltage (V)	12 VDC
Pulley Type	Conventional
Series	CS130
OE Manufacturer	Delco/Delphi
Polarity	Negative
Decoupled Or Clutch Pulley	No
8122	No
9037	No
229	No
External Fan Included	Yes
New or Remanufactured	Remanufactured
New or Remanufactured	Remanufactured
Decoupled Or Clutch Pulley	No
Rotation Direction	Clockwise
Series	CS130
Voltage Regulator Type	Internal

Vehicle Applications:

Make	Model	Years
Chevrolet	Astro	1990 to 1992
Chevrolet	G10	1992 to 1992
Chevrolet	G20	1992 to 1992
Chevrolet	G30	1992 to 1992
GMC	G1500	1992 to 1992
GMC	G2500	1992 to 1992
GMC	G3500	1992 to 1992
GMC	Safari	1990 to 1992
