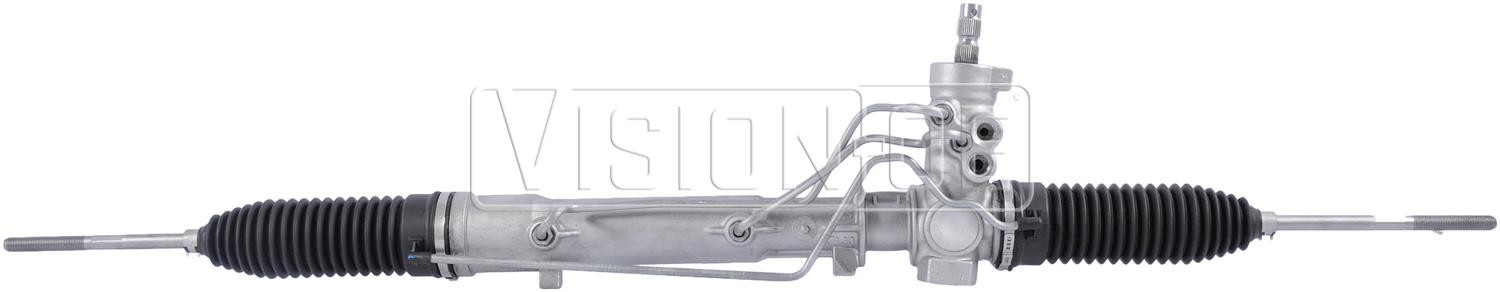

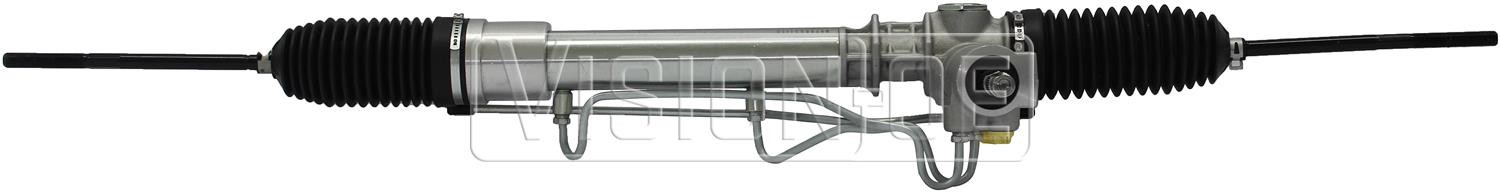

Vision N101-0113 New Steering Rack and Pinion Unit - Power

Vision N101-0113 New Steering Rack and Pinion Unit – Power

Premium-quality new power steering rack & pinion designed for dependability and reliability throughout the service life of the vehicle.

Premium-quality new power steering rack & pinion designed for dependability and reliability throughout the service life of the vehicle.

Attributes:

Distance Between Front Mounting Holes (mm)	N/A
Bushings Included	No
Return Port Attachment Type	O-Ring
Pressure Port Attachment Type	O-Ring
Installation Kit Included	Yes
9182	Yes
Prop 65 Y/N	Y
Inner Tie Rod Length (In)	12
Pressure Port Size	9/16X18
Pressure Port Thread Size	9/16X18
9182	Yes
Return Port Size	5/8X18
Return Port Thread Size	5/8X18
6512	3.05
Inner Tie Rod Length (mm)	307
Inner Tie Rod Size	M12x1.25
Distance Between Back Mounting Holes (In)	N/A
Distance Between Front Mounting Holes (mm)	N/A
Distance Between Back Mounting Holes (mm)	N/A
Distance Between Front Mounting Holes (In)	N/A
Input Shaft Length (mm)	45 mm
Input Shaft Length (In)	1.7 in
Pressure Port Attachment Type	O-Ring
Return Port Attachment Type	O-Ring
Bushings Included	No
6510	No
Distance Between Front Mounting Holes (In)	N/A
Distance Between Back Mounting Holes (mm)	N/A
Distance Between Back Mounting Holes (In)	N/A
Hydraulic, Electric, or Manual Steering	Hydraulic
Type	Hydraulic
Installation Kit Included	Yes
Inner Tie Rod Size	M12x1.25
Inner Tie Rod Length (mm)	307
Input Shaft Spline Count	29
Inner Tie Rod Length (In)	12
Pressure Port Size	9/16X18
Pressure Port Thread Size	9/16X18
Input Shaft Diameter (In)	0.72 in
Input Shaft Length (In)	1.7 in
Input Shaft Diameter (mm)	18.5 mm
Rack Length (In)	44.3 in
Input Shaft Length (mm)	45 mm
Rack Length (mm)	1126.5 mm
Return Port Size	5/8X18
Return Port Thread Size	5/8X18
6512	3.05
New or Remanufactured	New
6510	No
