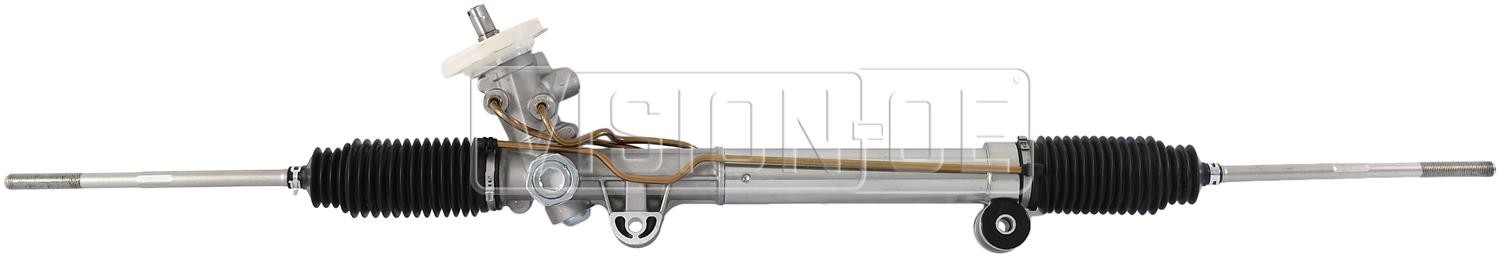

Vision N103-0170 New Steering Rack and Pinion Unit – Power
£530.95 Inc VAT
Availability: 9 in stock
Vision N103-0170 New Steering Rack and Pinion Unit – Power
Premium-quality new power steering rack & pinion designed for dependability and reliability throughout the service life of the vehicle.
Premium-quality new power steering rack & pinion designed for dependability and reliability throughout the service life of the vehicle.
Premium-quality new power steering rack & pinion designed for dependability and reliability throughout the service life of the vehicle.
Attributes:
| Rack Length (mm) | 1260 mm |
| 6512 | 2.41 |
| Distance Between Front Mounting Holes (In) | 12.2 |
| Inner Tie Rod Length (In) | 13.3 |
| Distance Between Front Mounting Holes (mm) | 311 |
| Inner Tie Rod Length (mm) | 339 |
| Inner Tie Rod Size | M14x1.50 |
| Return Port Size | M16X1.50 |
| Return Port Thread Size | M16X1.50 |
| Pressure Port Size | M18x1.50 |
| Pressure Port Thread Size | M18X1.50 |
| 6510 | No |
| Prop 65 Y/N | Y |
| Distance Between Mounting Holes (mm) | 311.15 mm |
| Installation Kit Included | Yes |
| Rack Length (In) | 49.6 in |
| Input Shaft Length (mm) | 43 mm |
| Input Shaft Diameter (mm) | 16.8 mm |
| Distance Between Mounting Holes (In) | 12.25 in |
| Input Shaft Length (In) | 1.7 in |
| Input Shaft Diameter (In) | 0.66 in |
| Distance Between Mounting Holes (mm) | 311.15 mm |
| Input Shaft Length (mm) | 43 mm |
| Distance Between Mounting Holes (In) | 12.25 in |
| Input Shaft Length (In) | 1.7 in |
| Bushings Included | Yes |
| 9182 | Yes |
| Pressure Port Attachment Type | O-Ring |
| 9182 | Yes |
| Bushings Included | Yes |
| Installation Kit Included | Yes |
| Mounting Hole Quantity | 2 |
| Return Port Attachment Type | O-Ring |
| Distance Between Back Mounting Holes (In) | N/A |
| Distance Between Back Mounting Holes (mm) | N/A |
| Type | Hydraulic |
| Mounting Hole Quantity | 2 |
| New or Remanufactured | New |
| 6512 | 2.41 |
| Distance Between Front Mounting Holes (In) | 12.2 |
| Inner Tie Rod Length (In) | 13.3 |
| Distance Between Front Mounting Holes (mm) | 311 |
| Inner Tie Rod Length (mm) | 339 |
| Hydraulic, Electric, or Manual Steering | Hydraulic |
| Inner Tie Rod Size | M14x1.50 |
| Return Port Size | M16X1.50 |
| Return Port Thread Size | M16X1.50 |
| Pressure Port Size | M18x1.50 |
| Pressure Port Thread Size | M18X1.50 |
| Distance Between Back Mounting Holes (mm) | N/A |
| Input Shaft Spline Count | N/A |
| Distance Between Back Mounting Holes (In) | N/A |
| 6510 | No |
| Return Port Attachment Type | O-Ring |
| Pressure Port Attachment Type | O-Ring |
Vehicle Applications:
| Make | Model | Years |
| Buick | Allure | 2005 to 2009 |
| Buick | Century | 2003 to 2005 |
| Buick | LaCrosse | 2005 to 2009 |
| Buick | Regal | 2003 to 2004 |
| Chevrolet | Impala | 2000 to 2011 |
| Chevrolet | Monte Carlo | 2000 to 2007 |
| Pontiac | Grand Prix | 2004 to 2008 |
| Weight | 8.535 kg |
|---|
